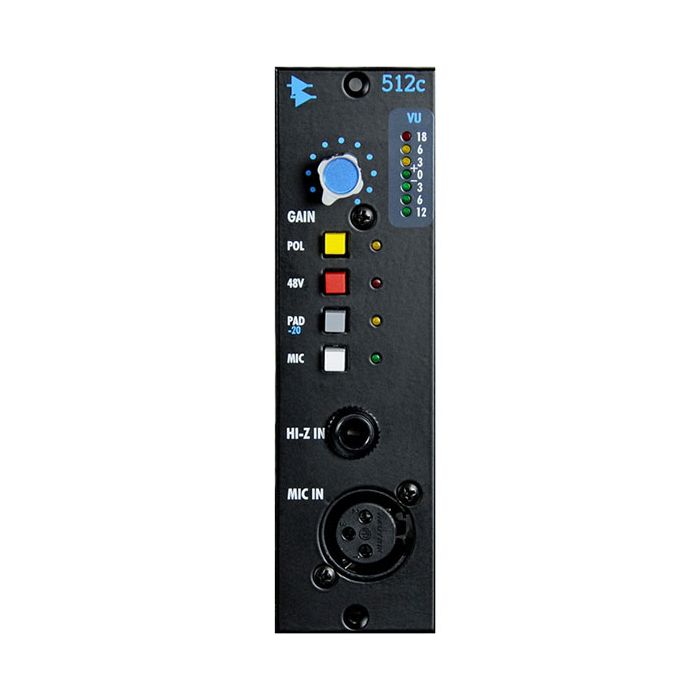

API 512C Microphone Preamp
500 Series Discrete Mic / Line Pre
MPN: API-512C SKU: API-512C
The API 512c is a mic / line / instrument preamp designed to provide a low noise, unusually good sounding front end for all types of audio systems. Sonically, it offers the distinct API sound at an extremely affordable price. Offering low noise (-129 EIN) and 65 dB of gain, the 512c includes phantom power, and switchable polarity, -20 dB pad and Mic or Instrument/Line selector. Front panel XLR and 1/4 inch connectors combined with rear panel mic access allows for additional flexibility when installed into an API lunchbox®, API's 10 position 500V vertical rack, or an API console.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The API 512c is a mic / line / instrument preamp designed to provide a low noise, unusually good sounding front end for all types of audio systems. Sonically, it offers the distinct API sound at an extremely affordable price. Offering low noise (-129 EIN) and 65 dB of gain, the 512c includes phantom power, and switchable polarity, -20 dB pad and Mic or Instrument/Line selector. Front panel XLR and 1/4 inch connectors combined with rear panel mic access allows for additional flexibility when installed into an API lunchbox®, API's 10 position 500V vertical rack, or an API console.
The API 512c remains faithful to the circuit designs of API's founder, Saul Walker. Fully featured and still hand assembled, the 512c carefully preserves the original sound character that made it so much a part of the early days of recording. Offering high headroom and a wide variety of inputs and input access points, it is equally at home in the commercial recording studio as it is in the home project studio.
The 512c Mic/Line Preamp makes use of the 2520 op-amp and therefore exhibits the reliability, long life, and uniformity which are characteristic of all API products.
- Mic Preamp with 65 dB of gain
- Front and Back Panel Mic Input Access
- Line/Instrument Preamp with 45 dB of gain
- Front Panel Line/Instrument Input
- LED VU meter for monitoring output level
- 20 dB pad switch, applies to mic/line/instrument
- 48v Phantom switchable power
- Traditional API fully discrete circuit design
- Uses the famous API 2520 Op-Amp
Rear Connector: Output on edge connector, MIC Input on edge connector, can be defeated
Front Connectors: XLR MIC Input, HI-Z 1/4" Unbal Input
Gain Range: MIC: 34dB to 65dB (14dB to 45dB w/PAD). HI-Z: 14dB to 45dB (-6dB to 25dB w/PAD)
Maximum Input Levels: MIC, +8 dBu, Unbal HI-Z Input, +36 dBu
Input Impedance: MIC Input, 1500 Ohms (150 Ohm mic), HI-Z Unbal Input, 20 K Ohms
Output Impedance: Less than 75 Ohms, Transformer Balanced
Clipping Level: +30 dBu
Frequency Response: +0, -.3, 30 to 20 kHz
Noise: Equivalent Input Noise: -129, Mic In. -125, Un-Balanced In.
Actual Metered Noise: Mic, -95 dBu, Un-Bal., -90 dBu
Distortion: Less than .05% @ +4 Out, Less than .1% @ +28 Out
Power Consumption: ±12/18 Volts/DC, @40 ma.
Dimensions and Weight
Size: 1.5" X 5.25" X 7" Deep
Size (Boxed for Shipping): 4.5" X 6.5" X 10.25"
Actual Weight: 1.41 lbs.
Shipping Weight: 1.94 lbs.
