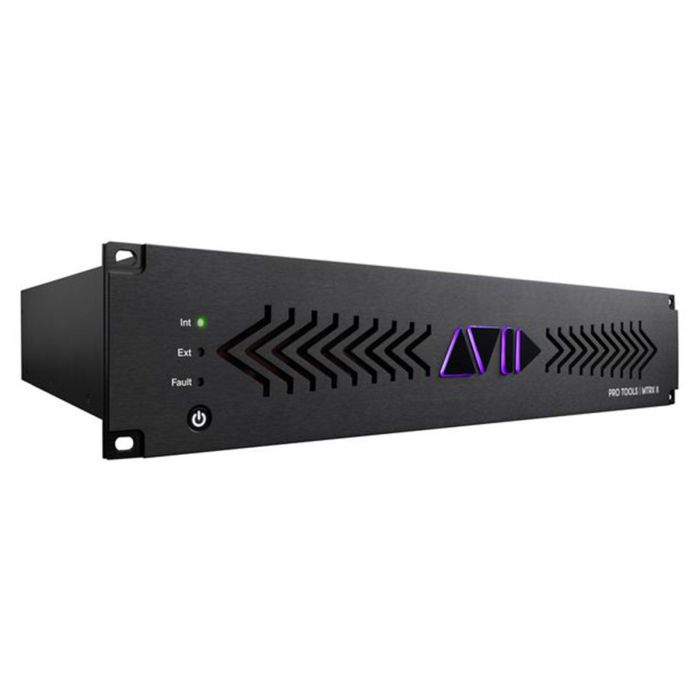

Avid Pro Tools MTRX II Base Unit w/FREE TB3 Module

Modular Interface and Digital Converter System

MPN: 4935-00583-00 SKU: 4935-00583-00

$5,415.83

Pro Tools | MTRX II not only comes with 64 channels of built-in DigiLink I/O, 256 channels of Dante, and 64 channels of MADI, it’s fully modular to accommodate any ADR, Foley, sound design, re-recording, or mixing session. Configure its eight card slots with all the I/O you need - the same option cards as MTRX, plus a new Thunderbolt™ 3 option - replacing multiple I/O, routing, and monitor control interfaces. Route any signal between the various I/O formats. And connect multiple HDX systems and DAWs together with a single interface.

Buy a MTRX II Base Unit and receive the Pro Tools | MTRX Thunderbolt 3 module for FREE - ends 18/09/26.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

MTRX II is built for today’s demanding audio workflows, ideal for multi-room facilities with complex setups. MTRX II provides high-quality mic preamps and renowned AD/DA conversion with immense I/O, routing, and monitoring flexibility. MTRX II adapts to your needs with its massive 4,096 x 4,096 router, 384 channels of built-in low latency I/O and onboard DigiLink, Dante, and MADI I/O. Plus, built-in SPQ Speaker Processing ensures the best sound for your space for monitoring up to full theatrical Dolby Atmos.

Customize your interface to any audio workflow
The MTRX II offers 64 DigiLink I/O channels, 256 Dante channels, and 64 MADI channels, plus eight option card slots and a Thunderbolt 3 option slot. With one interface, connect to Pro Tools | HDX with a Mac or PC, use other DAWs, route audio over IP with Dante, and add and reconfigure I/O as needed. Say goodbye to old gear and simplify your setup with a MTRX II.

Built to scale spectacular sound with Dante
Configure MTRX II with up to 1,280 Dante channels to distribute audio over IP. Easily integrate Dante-enabled devices and support multiple audio networks running on individual clocks and sample rates in one MTRX running multiple Dante cards. Get impeccable transparency with AD/DA converters that support sample rates up to 384 kHz PCM and DSD. Hear every sonic nuance of 128 dB of dynamic range with less than -120 dB harmonic distortion.

Work with Dolby Atmos®
MTRX II delivers the most comprehensive solution for immersive audio with Pro Tools Ultimate and Pro Tools | HDX. One MTRX II can achieve the 128-channel immersive audio requirement for connecting to the Dolby Atmos® Renderer, streamlining hardware, complexity and cost.
Its 512 x 64 summing mixer accommodates a full theatrical Dolby Atmos® configuration allowing you to:

Connect a multi-card HDX system or multi-workstation system to a single interface.
Route audio to the Dolby Atmos® Renderer while maintaining full HDX DSP power.
Control playback sources, stems, rendering, and monitoring outputs across multiple workstations.

Audio monitoring and calibration
MTRX II has a massive 512 x 64 summing mixer for full Dolby Atmos® theatrical monitoring or simple cue mixes. It includes SPQ Speaker Processing for calibration up to 9.1.6, DADman Pro | Mon control and supports Sonarworks room calibration. Calibrate speakers with up to 16 filters per channel totalling 1024 filters across 64 channels for precise room correction, with adjustable delay and filters.

Control MTRX II with EUCON
Remotely control all sources, inputs, fold-downs, cue mixes, and monitoring directly from any EUCON-enabled control surface. Create multiple monitor profiles to switch multichannel audio formats— from stereo up to 64-channel Dolby Atmos®, for the most flexible routing and monitoring at scale.

Streamline facility I/O with one interface that can control multiple rooms.
Send audio to mixing rooms and stages across your facility.
Create and save routing workflows for recall in seconds.
Switch between 5.1, 7.1, Dolby Atmos®, and other production formats in seconds to support multiple delivery formats.
Sum your mix stems and subgroups with the 512 x 64 summing mixer.
Work with multi-DAW, multi-workstation setups to capture, route, and monitor audio.
Remotely control all sources, inputs, fold-downs, cue mixes, and monitoring with EUCON-enabled surfaces.
Add Pro Tools | Sync X for perfect frame-edge picture lock.
256 integrated Dante channels

Configurability: Fully customizable I/O with eight option card slots; install up to eight total analog, DigiLink, and/or digital I/O cards
Built-in I/O and connectivity:
- 64 channels of DigiLink I/O (via two 32-channel DigiLink Mini ports) at all sample rates
- 64 channels of MADI I/O at 44.1/48 kHz, 32 channels at 88.2/96 kHz, or 12 channels at 176.4/192 kHz
- 256 channels of Dante I/O at 44.1/48 kHz, 128 channels at 88.2/96 kHz, or 64 channels at 176.4/192 kHz (IP core)
Optional I/O and connectivity (cards and modules sold separately):
- 8 Mic/Line Pristine AD input card (DB25)
- 2 Mic/Line Pristine AD input card (DB25)
- 8 Line Pristine AD input card (DB25)
- 8 Pristine DA output card (DB25)
- 64-channel DigiLink I/O card (two DigiLink Mini ports) Up to 64—2 x 32 channels at
- 44.1 kHz–96 kHz; 1 x 32 channels at 176.4 kHz–192 kHz
- NEW Thunderbolt 3 Option Module (enables up to 256 channels of native low-latency I/O at 44.1/48 kHz and 88.2/96 kHz, 128 channels at 176.4/192 kHz, and 64 channels at 384 kHz for other Core Audio DAWs)
- 128-channel IP Audio Dante card with built-in SRC
- 128-channel Dual MADI I/O card
- 8 AES3 I/O card (16 mono channels)
- 2 x 16-channel Dual SDI/HD/3G card with built-in SRC
Digital crosspoint matrix (input to output routing): 512 x 512
Summing matrix with monitor profiles:
- 512 x 64 (supports full theatrical Dolby Atmos mixing)
- Monitor Groups
- Fold Downs
- Group Formats
Room calibration: Built-in SPQ Speaker Processing, providing up to 1,024 filters across 64 channels at 48k and 96k, scaling at higher sample rates. Delay management adjustable up to 1000ms (200ms per monitor set and 800 per channel)
Supported DAWs: Pro Tools, Logic Pro, Cubase, and other Core Audio workstations
EUCON integration: Yes
System sync: Word Clock/video black burst (VBB) via BNC connectors, Dante Sync, Digital Inputs
Supported sample rates: 44.1 kHz–384 kHz
Chassis: 2U 19" rack-mountable unit
