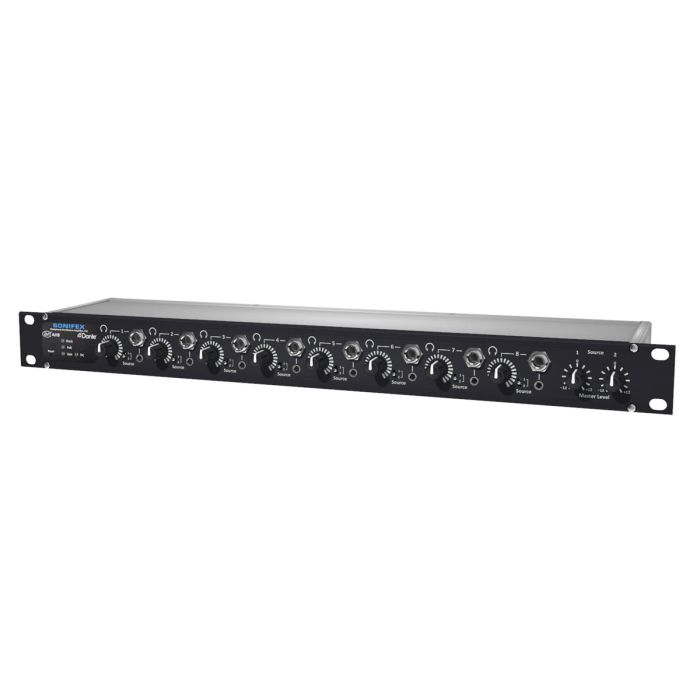

AVN-AH8 8 Stereo Analogue Headphone Outputs Dante Interface

• 8 x front panel 1/4” & 3.5mm jack sockets.
• 8 x parallel connections on rear panel
• 8 x volume control potentiometers.
• Switch selection for each headphone output between 2 dual-channel Dante sources.
• 2 x master level controls, one for each stereo Dante input.
• 1 x RJ45 Dante connector (100 Mb/s Ethernet Port).
• PoE, Link, DC and Clock LED status indicators.
• Configuration using Dante Controller.
• AES67 operation & Dante Domain Manager compliant.
• Powered by PoE.
• 1U 19" rack-mount form factor.

Network and AoIP

• AoIP Standard: Dante
• Number of Channels: 4 Receive
• Number of Streams: 2 Receive
• Sample Rates: 44.1kHz, 48 kHz, 88.2kHz, 96kHz
• Encoding Format: Linear PCM, 16, 24 or 32 bit
• AES67 Support: Yes
• Connectivity: 1 x RJ45
• Speed: 100mps
• Dante Domain Manager Ready: Yes

PoE Power

• Standard: 802.3af
• Class: 0
• PD Power Range: 0.44 W to 12.94 W
• Typical PSE Power Usage: 6 W
• Max PSE Power Usage: 15.4 W

Front Panel Connections & Controls

• LED Indicators Clock LED – indicates valid clock on AoIP network
• PoE LED – indicates power presence
• Link LED – indicates network link status
• DC LED – indicates DC power applied
• Reset: Recessed system reset button
• Headphone Outputs: 8 x dual 1/4”/3.5mm jack sockets
• Headphone Output Volume Controls: 8 x dual log potentiometers
• Headphone Input Source Selection: 8 x toggle switches for individual source selection between two stereo inputs
• Input Level Controls: 2 x dual linear potentiometers, 1 for each set of stereo inputs

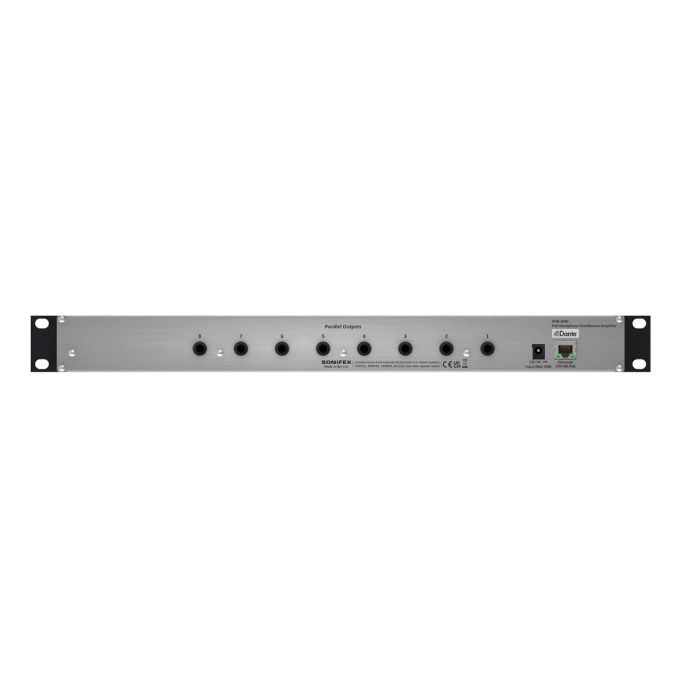

Rear Panel Connections

• Parameter Description
• Network Ethernet port (100Mbps capable) for data and PoE connection
• Headphone Parallel Outputs: 8 x ¼” jack sockets for parallel headphone outputs 1-8
• DC Power in: 1 x Locking 2.5mm DC Input, 2A minimum rating.

Dante Network to Headphone Input Specifications

• Master Level Adjustment ±12dB

Headphone Output Specifications

• Parameter Description
• Output Impedance: Capable of driving 150mW into 32Ω to 600Ω headphones
• Maximum Output Level: +18dBu unclipped
  D to A Line-Up: 0dBFS = +18dBu (Volume = 100%, Master level = 50% = 0dB)
• Volume Pot Range -80dB (Volume = 0%) to 0dB (Volume =100%)
• Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
• THD+N: <0.07%, -10dBFS input, volume = 100%, master level = 50% = 0dB, 20Hz to 20kHz, 20kHz BW
• Dynamic Range: 108dB, volume = 100%, master level = 50% = 0dB, 20kHz BW
• Crosstalk: <-95dB @ 1kHz

Headphone Jack Output Pin-out

• Pin Function
• Tip Left
• Ring Right
• Screen 0V Common

Equipment Type

• AVN-AH8 8 Stereo Analogue Headphone Outputs Dante Interface, PoE

Physical Specification

• Dimensions (Raw): 48cm (W) x 11cm (D) x 4.3cm (H)(1U)
  19" (W) x 4.3" (D) x 1.7” (H)
• Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
  23” (W) x 8.9” (D) x 2.8” (H)
• Weight: Nett: 1.4kg Gross: 2.0kg
  Nett: 3.1lbs Gross: 4.4lbs
