BirdDog XL Ultra 4K60 PTZ Camera - Black Bundle

PTZ Camera with a cinematic 4/3" CMOS sensor, 20× optical zoom, and dual 4K60 outputs - Black

SKU: BDXLUBUNDLEBBN

$17,083.33

BirdDog XL Ultra redefines PTZ with a cinematic 4/3" CMOS sensor, 20× optical zoom, and dual 4K60 outputs. Featuring advanced AI tracking, whisper-quiet movement, and unmatched connectivity, XL Ultra delivers cinema-quality imagery with PTZ control — built for broadcast, XR stages, studios, and premium live production.

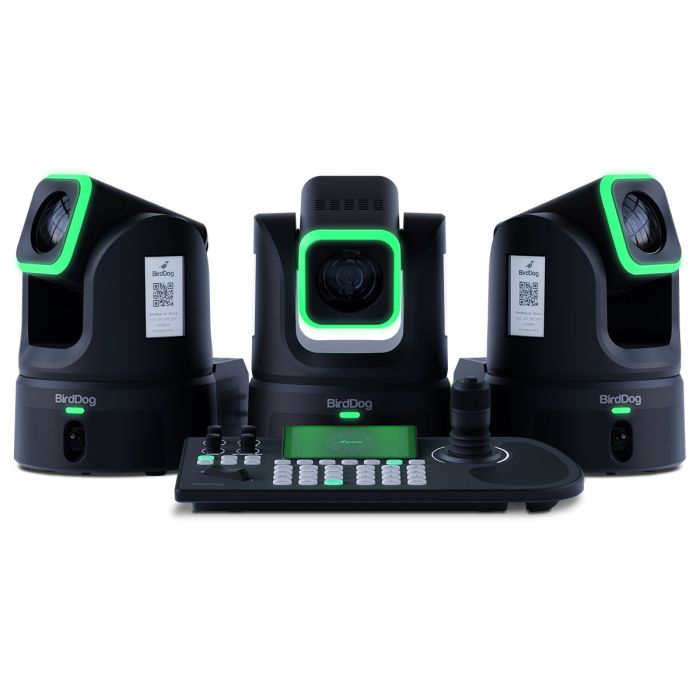

Bundle includes: 3x XL Ultra Black | 1x KBD

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

This isn’t just another PTZ. It’s the heavyweight champ, built around a colossal 4/3"" CMOS sensor — the kind usually found in pro cinema and DSLR cameras. Paired with a 20× optical zoom (40× in HD), OLPF, and ND filters, XL delivers cinematic depth, incredible low-light performance, and clarity that makes other PTZs look small.

But XL is more than just a big sensor. Its dual-camera design gives you both a main PTZ and a 100° panoramic camera, each shooting in 4K60, each independently adjustable, and each able to output simultaneously. One camera, two perspectives, endless flexibility.

AI tracking is powered by a neural processor that frames subjects naturally, moving with human-like precision. Premium motors and a next-gen thermal system keep motion whisper-smooth and nearly silent, so all the drama stays in front of the camera, not behind it.

Connectivity is uncompromising: 12G-SDI, HDMI, SFP+ fiber, PoE++, and balanced XLR audio, plus simultaneous Full NDI® and NDI® HX3. Dual streaming lets you send NDI alongside SRT, RTMP, or RTSP, so you’re ready for any workflow — broadcast, AV, XR, or virtual production.

With signature BirdDog touches like Halo Tally with RGB customization, dual side e-ink displays, and a rear numbering tally system, XL Ultra doesn’t just perform like cinema — it looks the part too.
From studios and XR stages to houses of worship and arena productions.

Bundle: 3x XL Ultra White | 1x KBD

XL Ultra features:

PTZ Camera with a cinematic 4/3" CMOS sensor, 20× optical zoom, and dual 4K60 outputs
Large-format 4/3"" CMOS sensor for cinematic depth of field and outstanding low-light performance
20× optical zoom (40× in HD) with OLPF and ND filters for precision and clarity
AI tracking with machine learning, using dual-camera input for natural, human-like framing
Ultra-quiet motors and advanced thermal design for distraction-free operation
Dual 4K60 outputs via 12G-SDI and HDMI for uncompromising image quality
FreeD and Genlock support, making XL ideal for XR stages, AR workflows, and multi-camera sync
SFP+ fiber connectivity for large-scale and remote installs
Simultaneous Full NDI® and NDI® HX3 streaming for flexible workflows
Dual streaming support — NDI plus SRT, RTMP, or RTSP concurrently
Firmware-ready for NDI 6.2, ensuring future-proof performance.

Primay Camera

Image Sensor: 4/3* Sony CMOS 5K Sensor
Lens: 20x Optical Zoom Lens
Video Format: 2160p60
Additional resolutions: 2160p60, 59.94, 50, 29.97, 25 1080p60, 59.94, 50, 30, 29.97, 25 1080160, 59.94, 50 720p60, 59.94,50
Focal Length: 9.8mm- 186mm
Aperture: f2.8-f4.5
Focus: Auto, Manual
AF Method: PDAF (Phase Detection Auto Focus)
Horizontal Field of View: 71°- 49
Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
Shutter Speed: 1 / 1 -1/10.000s
3D Noise Reduction: Yes
SNR: 300lux-600lux 45-50dB
Effective Pixels: 20.89M P
Vertical Field of View: 40°-2°
Diagonal Field of View: 7 9 ° ~ 4.59
ND Filter: Yes 1, 1/4/1/16, 1/62
Optical Low Pass Filter (OLPF): Yes
Image Stabilization: Digital
Digital Zoom: 16xSupersampling
Filter ring: Yes

Secondary Panoramic Camera

Image Sensor: 1/1.8" Sony CMOS 4K sensor
Lens: Fixed
Focal Length: 4.4mm
Aperture: f2.0
Horizontal Field of View: 85°
Vertical Field of View: 53°
Diagonal Field of View: 93°

Mechanical

Pan/Tilst Rotation: +170°, -30° -+90°
Pan control Speed: 0.05° -120°/
Tilt Control Speed: 0.05°~90%
Preset Number: 256
Integrated Tally Ligh: Halo Style, RGB (Front), Number Style (Rear)
e-Ink display: 2x 3" Grayscale e-Ink Displays
Pan/Tilt Drive System: Ultra-finedrive
Quietness: NC 50 (with a sound pressure level corresponding to t h e 500Hz-1kHzfrequencybandbeing49- 51dB)

I/O Interface

Video Output Interfaces: 12G-SDI, 3G SDI x2, HDMI 2.0, USB-C, 1Gb RJ45, SFP+ Cage (Ethernet)
Video Compression Formats: H.264, H.265, SpeedHQ
Network Interfaces: 1x 1GbE Adaptive Ethernet port, PoE++, 1x SFP+ Cage (Ethernet)
Encoder Network Protocols: High-Bandwidth NDI® (SpeedHQ), NDI® HX3, NDI® HX2, SRT, RT S P.RT M P
Decoder Network Protocols: NDI® HX3, NDIO HX2
Decoder Supported Resolutions: 1080p @60/59.94 / 50/30 / 29.97 / 25fps, 720p @60, 59.94, 50fps
Control Interfaces: 1Gb Ethernet, SP+, RS232 (input &output), RS42, TYPE-C (UVC)
Control Protocols: VISCA-IP, NDI®, VISCA Serial, Pelco-P, Pelco-D
FreeD Protocol: Supported - UDP /NDI® Embedded
Analogue Audio: Balanced Audio XLR x 2
Digital Audio: Embedded with Main and secondary HDMI, 12G-SDI, Network Video, USB (UVC)
Genlock: Supported
Timecode: Supported
SD Card Slot: MicroSD - Recording supported
Kensington Lock: Supported
WebUI Control: Integrated BirdDog BirdUl 2.0
API Support: BirdDog RESTful API 2.0, Crestron Libraries, Osys Libraries
