Blackmagic Design 3 Year Extended Warranty for ATEM 1 M/E Advanced Panel 20
Blackmagic Design
BMD-SWPANELADV1ME20-EW
$385.00
Click image to zoom

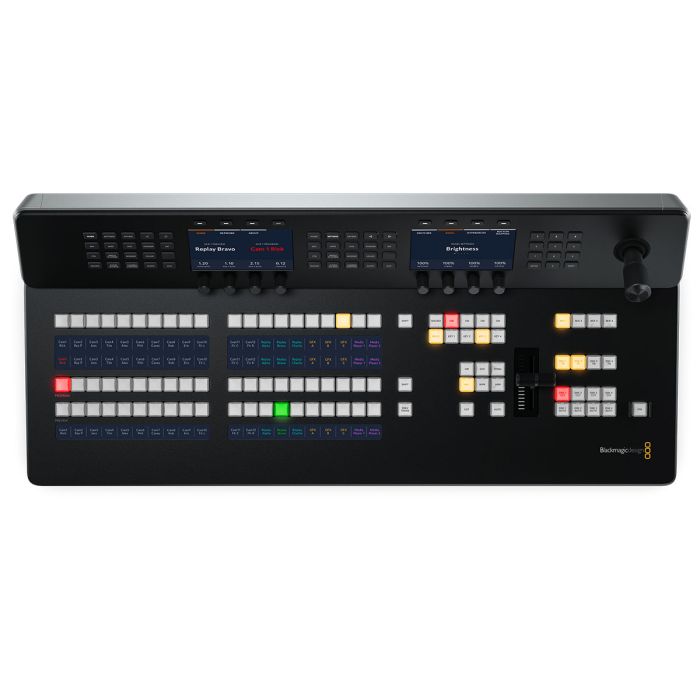

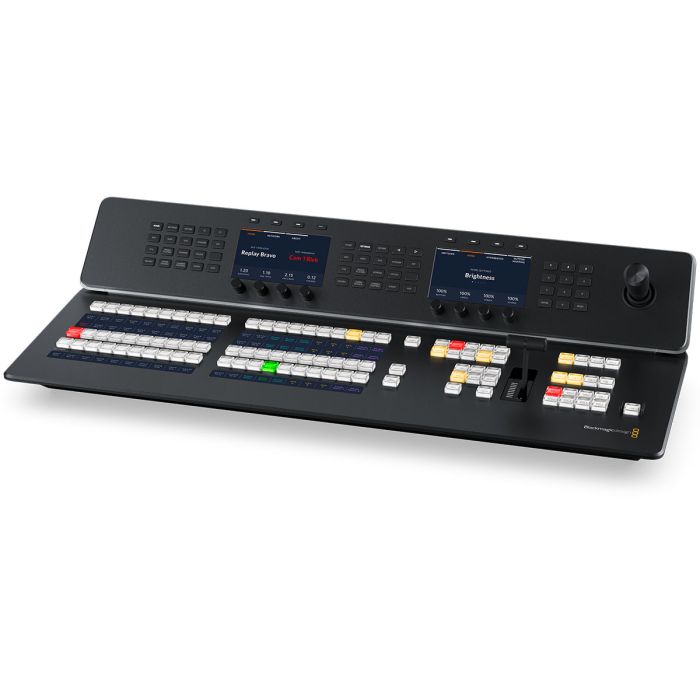

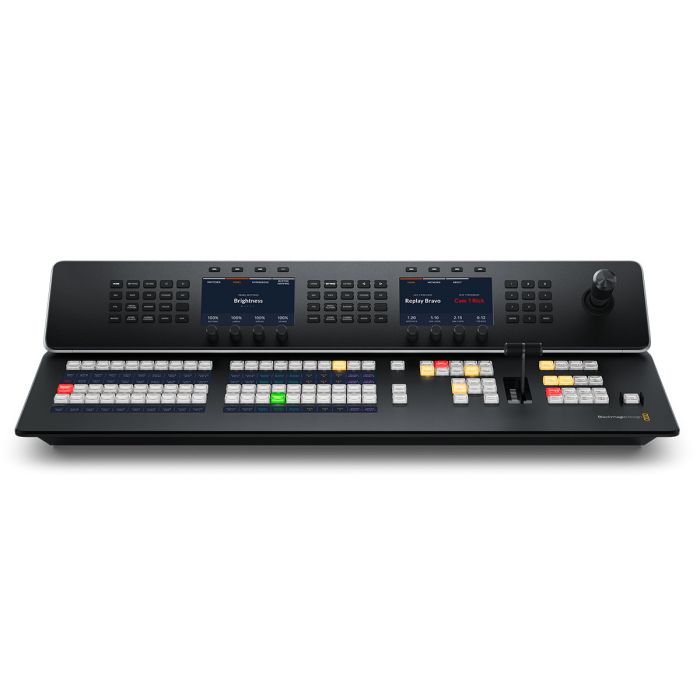

Blackmagic Design ATEM 1 M/E Advanced Panel 20
Professional hardware control panel for all ATEM switchers
SKU: BMD-SWPANELADV1ME20
$2,748.33
The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces.
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces.
Connections
- Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
- Software Updates: 1 x USB-C for firmware updates.
Product Specifics
- Number of Mix Effects Rows: 1
- Direct Cross Points: 20
- Shifted Cross Points: 40
- Crosspoint Button Type: Tri-Color LED
- Preview Transition: 1
- Transition Rate Displays: Via main menu
- LCD Menu Displays: 2
- Menu Control: 2 x 20 buttons
- Dedicated Macro Buttons: 1 x 20
- Transport Control Buttons: 8
- Destination Bus: 1
- Source Select Bus: 1
- Fader Bar: 1
- 3 Axis Joystick: 1
- Numeric Keypad: 1
Software
- Software Applications: ATEM Software Control Panel.
Operating Systems
- Mac 11.1 Big Sur, Mac 12.0 Monterey or later.
- Windows 10 and 11.
Power Requirements
- Input Voltage: 2 x Internal 100 - 240V AC.
- Redundant Power: Yes
- Power Usage: 75W
Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 95% non-condensing
Warranty
- 12 Month Limited Manufacturer’s Warranty.
- ATEM 1 M/E Advanced Panel 20
- Welcome wallet with QR code for software download
