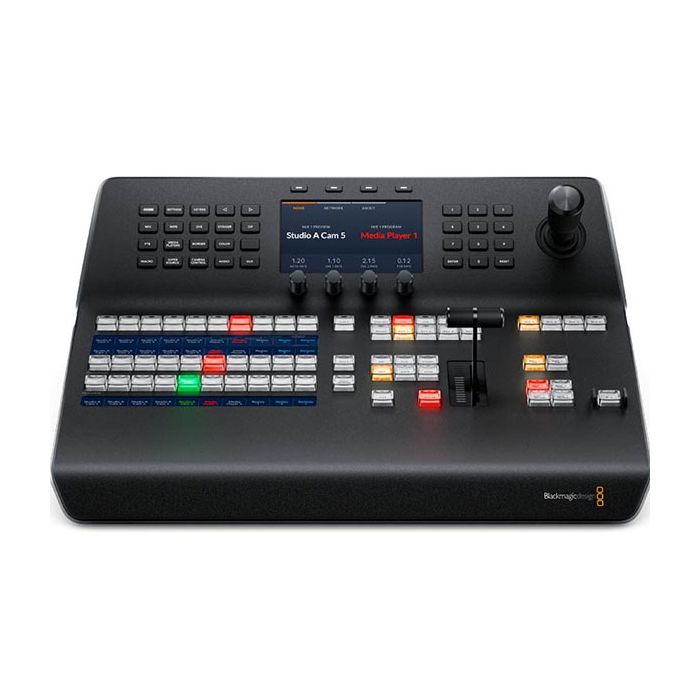

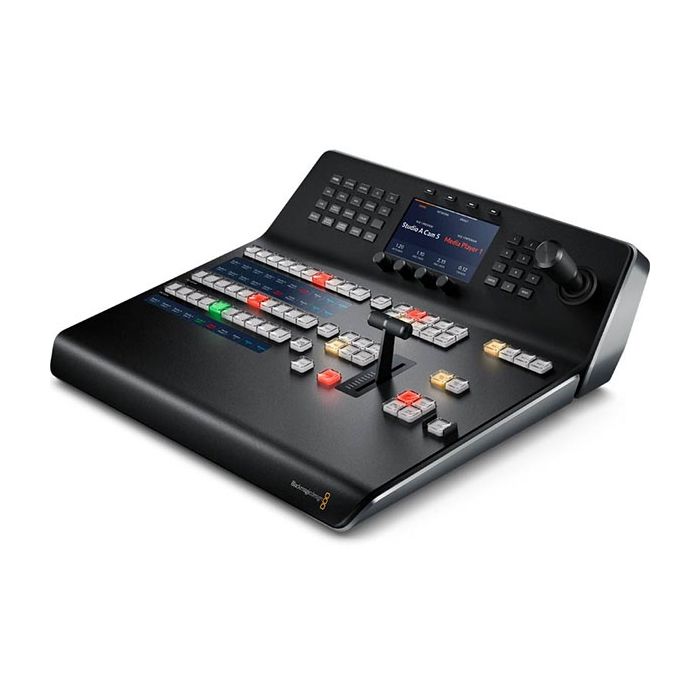

Blackmagic Design ATEM 1 M/E Advanced Panel 10

• Professional hardware control panel for all ATEM switchers
• Features a built in LCD and high quality curved buttons that help reduce incorrect key presses
• The buttons also have colour backlighting to help you quickly recognize important keys
• You also get a professional joystick for DVE and camera adjustments, smooth weighted t‑bar fader and much more
• The buttons feature dynamic displays that allow full customization of the labels as well as custom colours
• The shift buttons allow you to double up the number of inputs by selecting a second set of shifted source buttons so you can control up to 20 inputs
• The compact size and durable design of the ATEM 1 M/E Advanced Panel fits in a standard equipment rack, making it perfect for shelf mounting in broadcast trucks, mobile racks and fly away kits

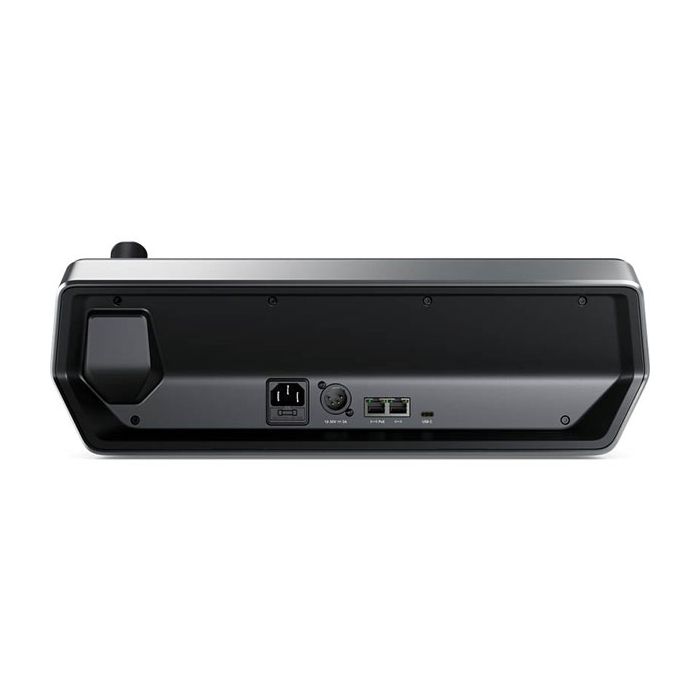

Connections

• Ethernet: 2 x 10/100/1000 BaseT with loop output for additional control panels or computers
• Software Updates: 1 x USB-C for firmware updates

Product Specifics

• Direct Cross Points: 10
• Shifted Cross Points: 20
• Crosspoint Button Type: Tri-Color LED
• Crosspoint Label: 3 rows 24 character LCD
• Next Transition Selectors: BKG, Key 1 - Key 4.
• On-Air indicator: 4
• Power Status Indicators: None
• DSK Transition Selectors: Auto, Cut, Tie/Preview.
• Preview Transition: 1
• Transition Rate Displays: Via main menu
• LCD Menu Displays: 3
• Menu Control: 20 buttons
• Dedicated Macro Buttons: 10
• Multi Control Buttons: None
• Destination Bus: 1
• Source Select Bus: 1
• Fader Bar: 1
• 3 Axis Joystick: 1
• Numeric Keypad: 1

Software

• Software Applications: ATEM Software Control Panel.

Operating Systems

• macOS 10.12 Sierra, macOS 10.13 High Sierra or later,
• Windows 8.1 or Windows 10.

Power Requirements

• Input Voltage: 1 x Internal 110 - 240V AC.
• Redundant Power: Yes
• Power Usage: 45W

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: Up to 95%

Warranty

• 12 Month Limited Manufacturer's Warranty.
