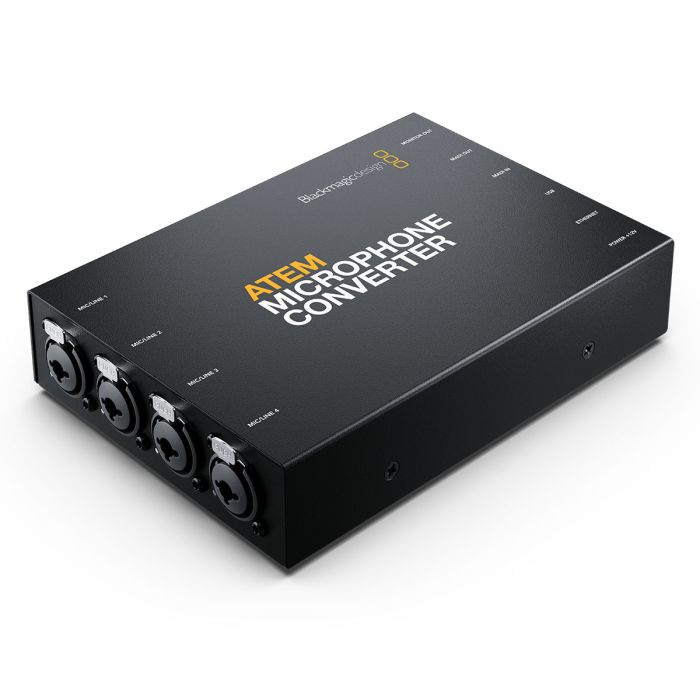

Blackmagic Design ATEM Microphone Converter
Expand Microphone Inputs by Converting 4 Analogue XLR Inputs to MADI
SKU: BMD-SWATEMTVSTDMC
$306.67
Expand microphone inputs by converting 4 analog XLR inputs to MADI. Features low noise floor of -129dBV, dynamic range of 131dB(A), low distortion of 0.002% and HDMI monitoring with scrolling waveforms!
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Now it’s easy to expand the MADI input on the ATEM Television Studio switchers to add multiple microphones or external audio mixer sources. The ATEM Microphone Converter simply plugs into the ATEM Television Studio MADI port, so there's no setup required and additional units can even be daisy chained for more sources. Each converter has 4 analog inputs that are mic/line selectable and have phantom power. The design features amazing audio quality with an extremely low noise floor, a wide dynamic range and very low distortion. The design even uses 8 separate ADCs on each separate input that work together to extend dynamic range! There is also an HDMI monitoring output with scrolling audio waveforms.

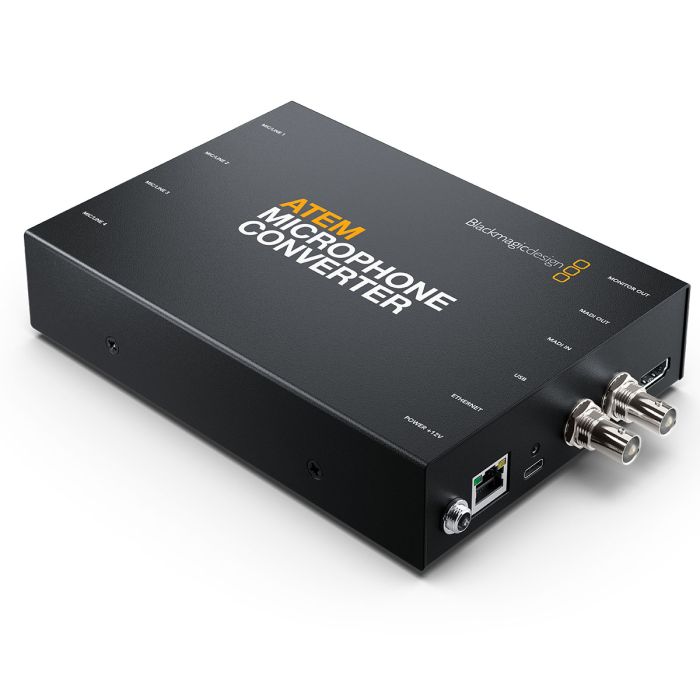

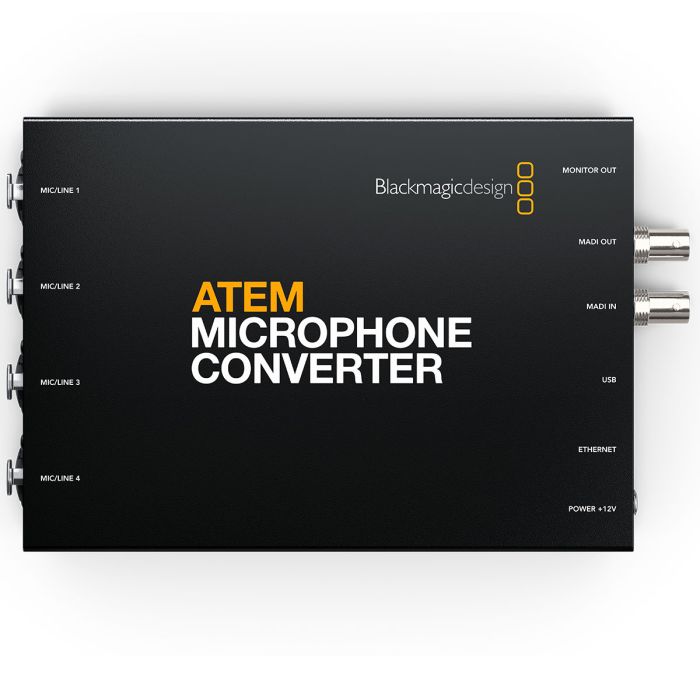

Connections
- Analog Audio Inputs: 4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phacntom power.
- MADI Inputs: 1 x BNC supports 64 channel MADI digital audio
- MADI Outputs: 1 x BNC supports 64 channel MADI digital audio
- HDMI Video Outputs: 1 x monitor out.
- Computer Interface: 1 x USB-C with locking screw
- Ethernet: Supports 10/100/1000 BASE‑T.
HDMI Output Standards
- HD Video Standards: 1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
- HDMI Monitoring: Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.
Audio
- ADCs Per Input: 8
- Digital Preamp: 32-bit
- Dynamic Range: 131dB(A)
- Noise Floor: -129dBV
- Total Harmonic Distortion at full scale: 0.002%
- Output Sample Depth: 24-bit
- Output Sampling Rate: 48KHz
- MADI Compliance: AES10-2020
Software
- Software Control: Mac and Windows software upgrade via USB or Ethernet.
- Internal Software Upgrade: Via downloadable utility application.
Operating Systems
- Mac 12.0 Monterey, Mac 13.0 Ventura or later.
- Windows 10, 64-bit. Windows 11.
Settings Control
- Software Settings Control: USB and Ethernet via free software utility.
- Hardware Switches: Mini switches for selecting mic or line level and setting +48V phantom power on/off.
Power Requirements
- Power Supply: 1 x External 12V power supply with locking connector.
- Power Consumption: 12W max.
- Operational Voltage Range: 12V to 17.5V DC
Environmental Specifications
- Operating Temperature: 0° to 40°C (32° to 104°F)
- Storage Temperature: -20° to 60°C (‑4° to 140°F)
- Relative Humidity: 0% to 90% non‑condensing
Warranty
- 3 Year Limited Manufacturer’s Warranty.
- ATEM Microphone Converter
- External 12V DC power supply with locking connector and international socket adapters for most countries.
- Welcome wallet with QR code for software download
