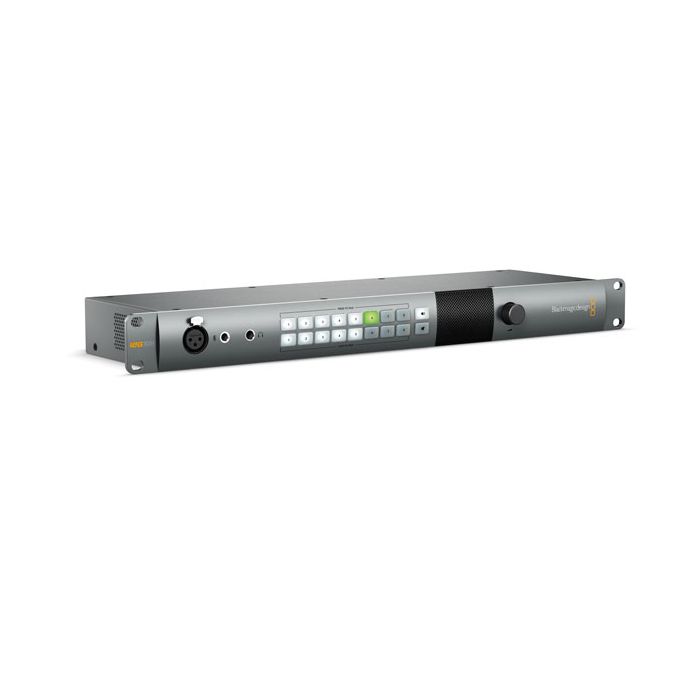

Blackmagic Design ATEM Talkback Converter 4K

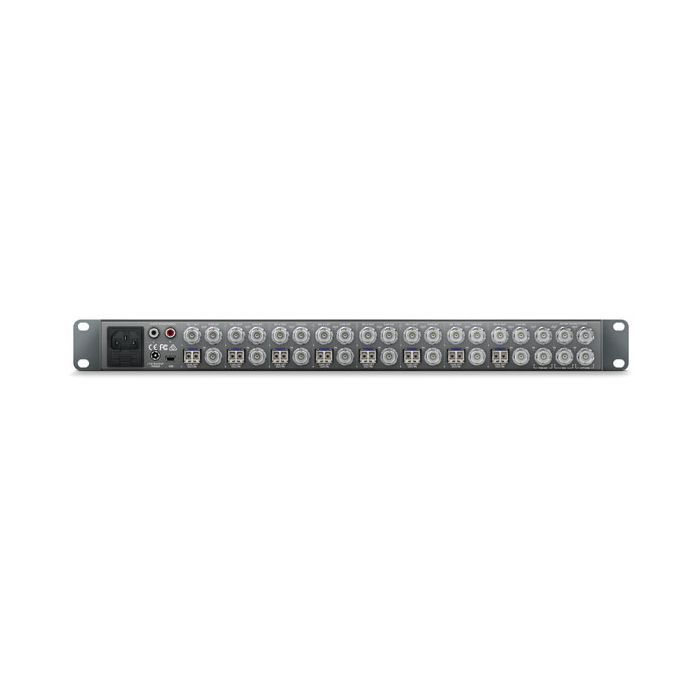

Connections

• SDI Program Input: 1 x 10-bit SD/HD/Ultra HD 4K auto switching program input from switcher, including tally information with 16 channel embedded audio.

• SDI Program Output: 1 x 10-bit SD/HD/Ultra HD 4K auto switching program loop thru output connects to another ATEM Talkback Converter 4K.

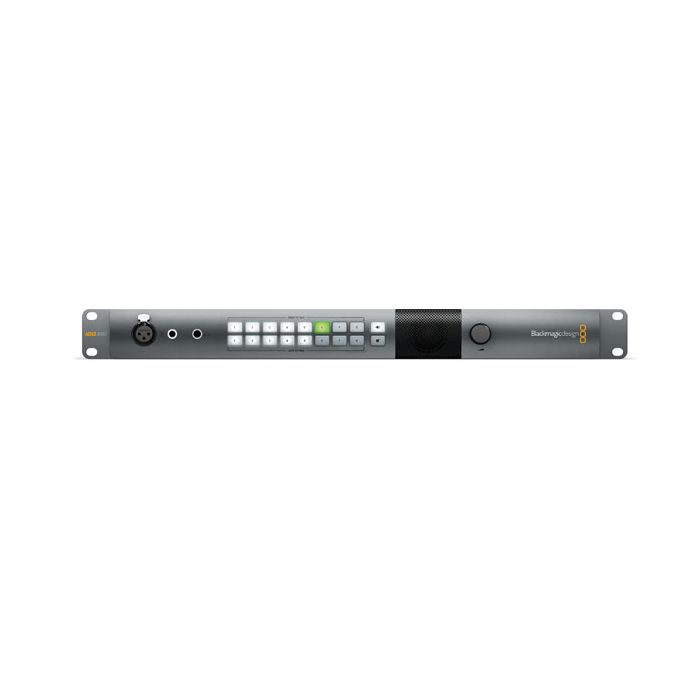

• Talkback Audio: Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.

• Analog Audio: 1 x stereo RCA monitoring output.

• SDI Camera Input: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.

• SDI Camera Output: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.

• SDI Output: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.

• Optical Fiber Video Input (Optional): 8 x single mode SD/HD/Ultra HD 4K auto switching camera inputs with LC connector.

• Optical Fiber Video Output (Optional): 8 x single mode SD/HD/Ultra HD 4K auto switching camera outputs with LC connector.

• Optical Fiber Audio Input: 8 x single mode camera audio inputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.

• Optical Fiber Audio Output: 8 x single mode camera audio outputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.

• Computer Interface: 1 x mini-B type USB connector for firmware updates.

Standards

• SD Format Support: 525/29.97 NTSC, 625/25 PAL

• HD Format Support: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

• 2K Format Support: 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.

• 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p60.

• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M.

• Audio Sampling: Television standard sample rate of 48Khz, 24-bit A/D conversion.

• Video Sampling: 4:2:2, 4:4:4

• Color Precision: 10-bit

• Color Space: REC 601, REC 709.

• Multiple Rate Support: SDI switches between SD, HD and Ultra HD 4K.

Software

Internal Software Upgrade: Via included updater application.

Operating Systems

Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later. Windows 7 or Windows 8.

Power Requirements

• Power Usage: 60 Watts

• Power Supply: 110 - 240V AC input with redundant 12-31V DC input.

Physical Installation

1 rack unit size. Less than 6 inches deep.

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)

• Storage temperature: -20° to 45° C (-4° to 113° F)

• Relative Humidity: 0% to 90% non-condensing

What's Included

• ATEM Talkback Converter 4K

• Software SD Card

Warranty

• Product Warranty: 3 Year Limited Manufacturer's Warranty.

• Repair policy: Excluding connectors, cables, cooling fans, fiber optic modules, fuses and keyboards which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase.
