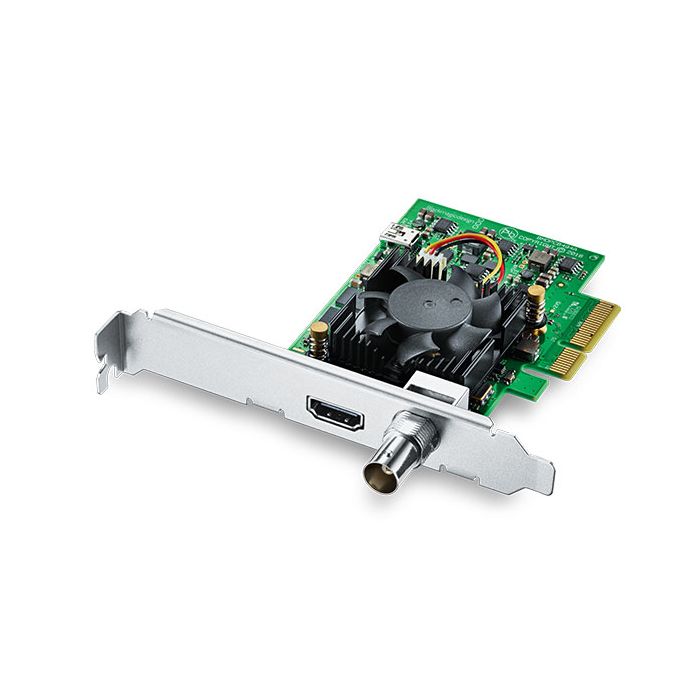

Blackmagic Design Decklink Mini Monitor 4K Playback Card

Connections

• SDI Video Output: 1 x 10 bit SD/HD/Ultra HD switchable.
• SDI Audio Output: 16 channels embedded in SD, HD, Ultra HD.
• HDMI Video Output: 1 x HDMI 2.0a connector.
• HDMI Audio Output: 8 Channels embedded in SD, HD, Ultra HD.
• Computer Interface: Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.

Codecs

• Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

Software

• Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
• Physical Installation: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

Software Applications

• DaVinci Resolve Icon
• DaVinci Resolve
• Fusion Icon
• Fusion
• Final Cut Pro Icon
• Final Cut Pro X
• Premiere Pro Icon
• Premiere Pro CC
• Avid Media Composer Icon
• Avid Media Composer
• After Effects Icon
• After Effects CC
• Avid Pro Tools Icon
• Avid Pro Tools
• Steinberg Cubase Icon
• Steinberg Cubase
• Steinberg Nuendo Icon
• Steinberg Nuendo
• Photoshop Icon
• Photoshop CC
• Other supported applications include: Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

Video Standards

• SD Format Support: 525i59.94 NTSC, 625i50 PAL
• HD Format Support: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
• Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K DCI Format Support: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M and 292M.
• Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• Video Sampling: 4:2:2
• Colour Precision: 10-bit
• Colour Space: REC 601, REC 709, REC 2020
• HDMI Configuration: HDMI automatically configures to connected display.
• HDMI Resolution: Pixel for pixel HD resolution input to connected device.
• HDMI Color Precision: 10-bit
• Multiple Rate support: SDI and HDMI are switchable between standard definitlon and high definition.

Processing

• Colorspace Conversion: Hardware based real time.
• HD Down Conversion: Software based down conversion during video playback.
• Real Time Effects: Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

Operating Systems

• Mac OS X 10.10 Yosemite,
• Mac OS X 10.11 El Capitan or later.
• Windows 7, 8.1 and 10, all 64-bit.
• Linux

EMC Certifications

• FCC, CE and C-Tick

Environmental Specifications

• Operating Temperature: 5° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Warranty

• 3 Year Limited Manufacturer's Warranty.

• DeckLink Mini Monitor 4K
• Low profile slot bracket
• SD card with software and manual
