Blackmagic Design 3 Year Extended Warranty for GPI and Tally Interface
Blackmagic Design
BMD-SWTALGPI8-EW
$60.00
Click image to zoom

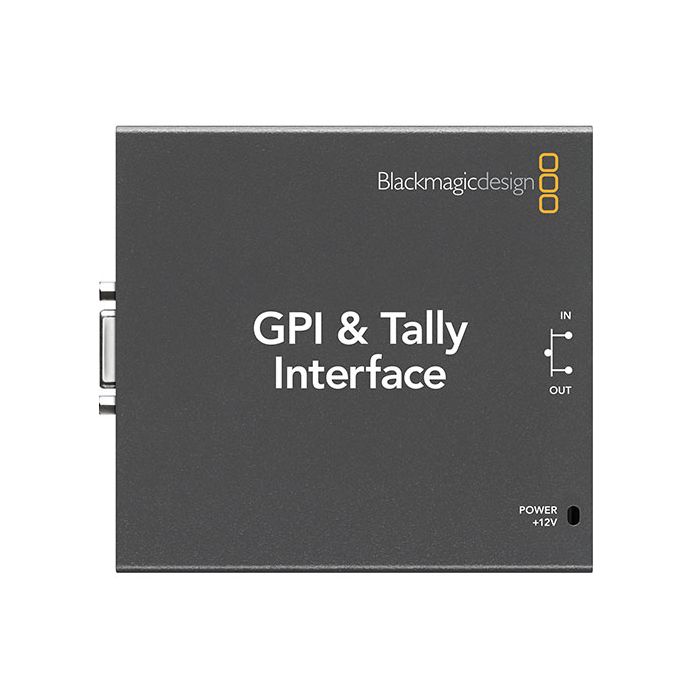

Blackmagic Design GPI & Tally Interface
Adds 8 Tally relay contacts to any ATEM switcher
MPN: BMD-SWTALGPI8 SKU: BMD-SWTALGPI8
$357.50
GPI and Tally Interface connects to an ATEM switcher and provides 8 contact closure Tally outputs. Tallies will be displayed when connected to an ATEM switcher to indicate their "on-air" status and you can even connect multiple interfaces together to increase the number of tally outputs.
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
GPI and Tally Interface connects to an ATEM switcher and provides 8 contact closure Tally outputs. Tallies will be displayed when connected to an ATEM switcher to indicate their "on-air" status and you can even connect multiple interfaces together to increase the number of tally outputs.
Connections
- Contact Closure: 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs
- Inputs: Optical isolators triggered by connection to ground. Max 5V at 14mA.
- Outputs: Mechanical relay contact closure to ground. Max 30V at 1A.
- Ethernet: 10/100 BaseT with loop through for connecting to other ethernet enabled equipment
- Computer Interface: 1 x USB 2.0 high speed interface for configuration and firmware updates
Extras
- Software Included: Configured via ATEM Switcher Utility
- Internal Software Upgrade: Firmware built into software driver. Loaded at system startup or via updater software
- Operating System: Microsoft Windows 7 and Apple Mac OS X
- Power Supply: 12V power supply included with international socket adaptors for all countries
- Product Warranty: 12 Months Limited Manufacturer's Warranty
