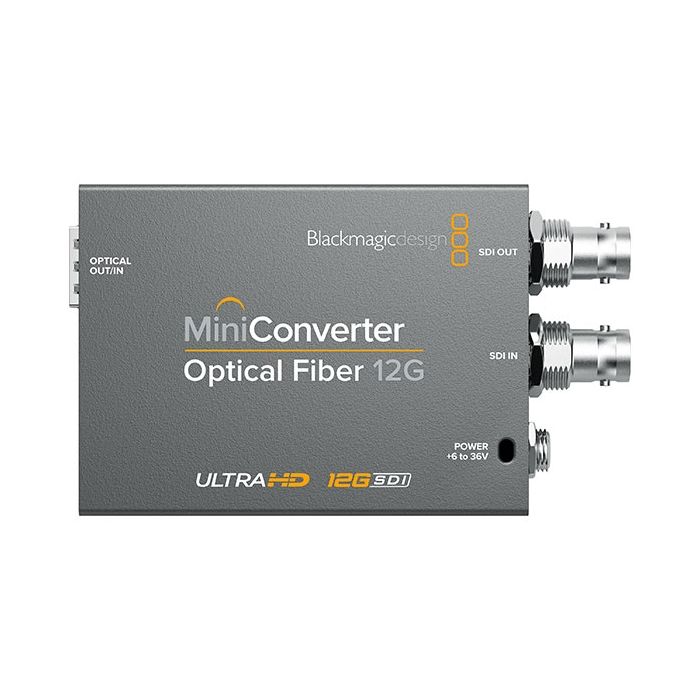

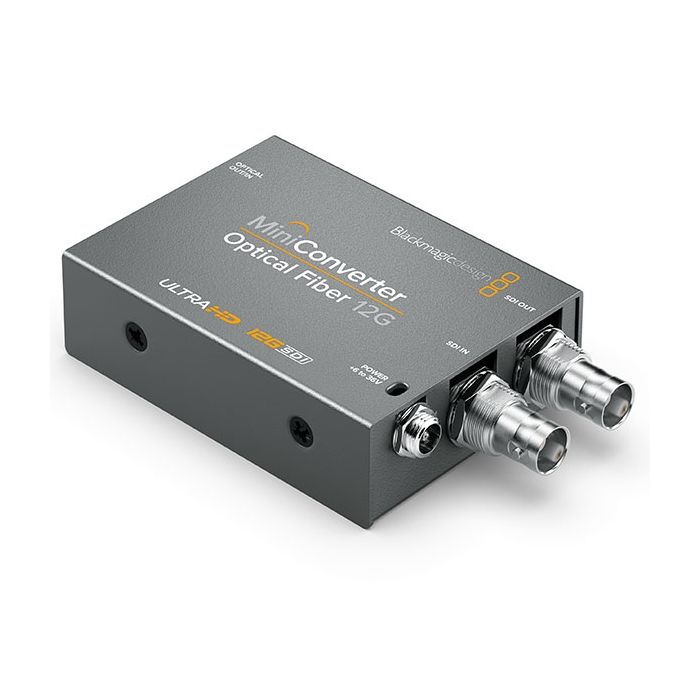

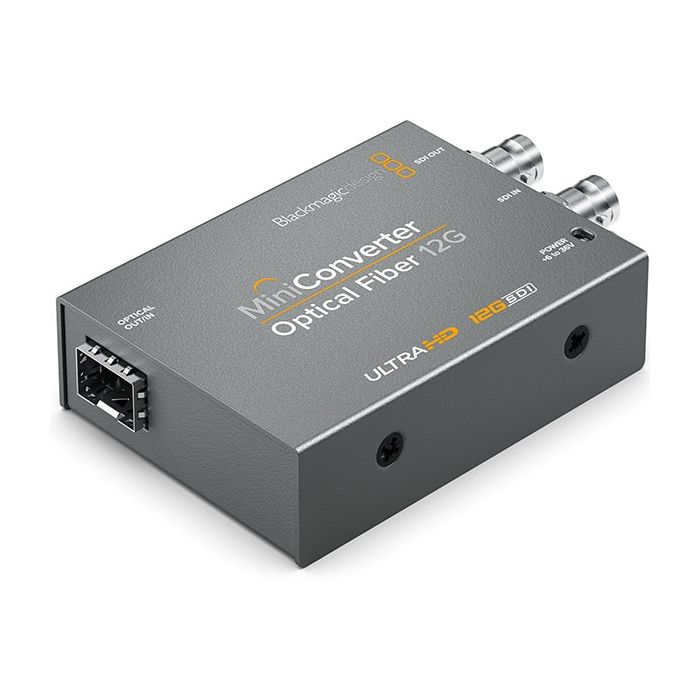

Blackmagic Design Mini Converter Optical Fiber 12G

• Converts SDI to optical fiber and optical fiber to SDI in both directions at the same time
• Can even have different video standards going in each direction
• 12G‑SDI connections are multi rate
• Compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices

Connections

• SDI Video Inputs: 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
• SDI Video Outputs: Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.
• Optical Fiber Video Inputs: 1 x 10 bit SD/HD/12G- SDI switchable.
• Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI video input.
• Optical Fiber Audio Inputs: 16 channel embedded.
• Optical Fiber Audio Outputs: 16 channel embedded.
• Multi Rate Support: Auto detection of SD, HD or 12G-SDI.
• Reclocking: Yes

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425M, SMPTE 424M-B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
• SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.
• ASI Support: Yes

Operating Systems

• macOS 10.12 Sierra, macOS High Sierra 10.13 or later.
• Windows 8.1 or Windows 10.

Settings Control

• No user controls

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption: 2 Watts
• Operational Voltage Range: 6 - 36V DC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Warranty

• 3 Year Limited Manufacturer's Warranty.

• Mini Converter Optical Fiber 12G
• +12V universal power supply with international socket adapters
