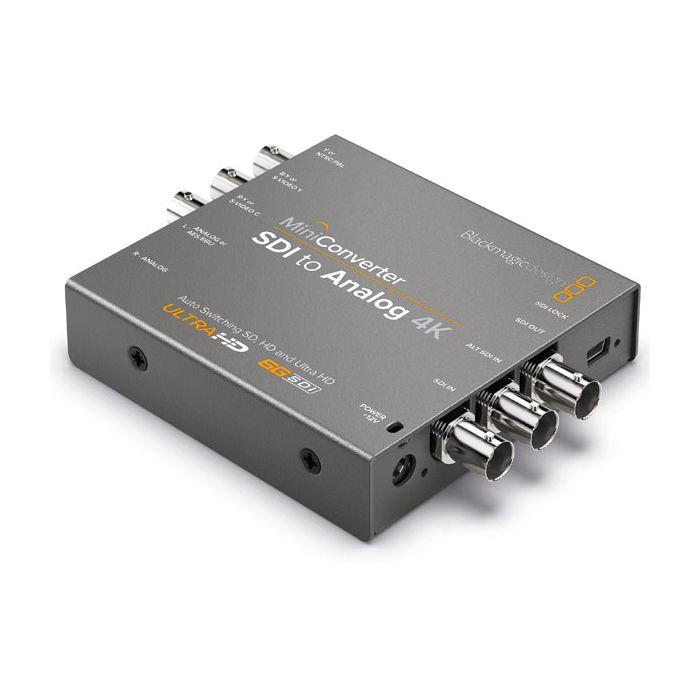

Blackmagic Design Mini Converter SDI to Analog 4K

Connections

SDI Video Input

Switchable between SD, HD and 6G-SDI.

SDI Video Output

Automatically matches the SD, HD and 6G-SDI video input.

Analog Video

NTSC, PAL, S-Video and component SD/HD from 6G-SDI input.

Analog Audio

2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

AES/EBU Digital Audio

2 channels of professional balanced digital with standard 1/4 inch jack connections.

SDI Redundant Input

Automatically switches over if main SDI input is lost.

Multi Rate Support

Auto detection of SD, HD or 6G-SDI.

Updates and Configuration

USB

Reclocking

Yes

Standards

• SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL.

• HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60

• 2K Format Support: 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25

• 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24

• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M­â€B, SMPTE 425M, ITU‐R BT.656 and ITU­â€R BT.601.

• SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.

• SDI Video Sampling: 4:2:2

• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.

• SDI Color Precision: 4:2:2

• SDI Color Space: YUV

• SDI Auto Switching: Automatically detects SD, HD or 6G-SDI.

• Analog Format Support: 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30

• Analog Color Space: YUV

• Analog Color Precision: 4:2:2

Format Conversion

HD down conversion

Software

• Software Control: Mac OS X and Windows software upgrade via USB.

• Internal Software Upgrade: Via included updater application.

Operating Systems

Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later. Windows 7 or Windows 8.

Settings Control

Mini Switches or USB software.

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.

• Power Consumption: 8.04 Watts

• Operational Voltage Range: 12 - 31V DC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)

• Storage temperature: -20° to 45° C (-4° to 113° F)

• Relative Humidity: 0% to 90% non-condensing

Warranty

3 Year Limited Manufacturer's Warranty.

• Mini Converter SDI to Analog 4K

• Software CD

• 12V universal power supply with international socket adapters
