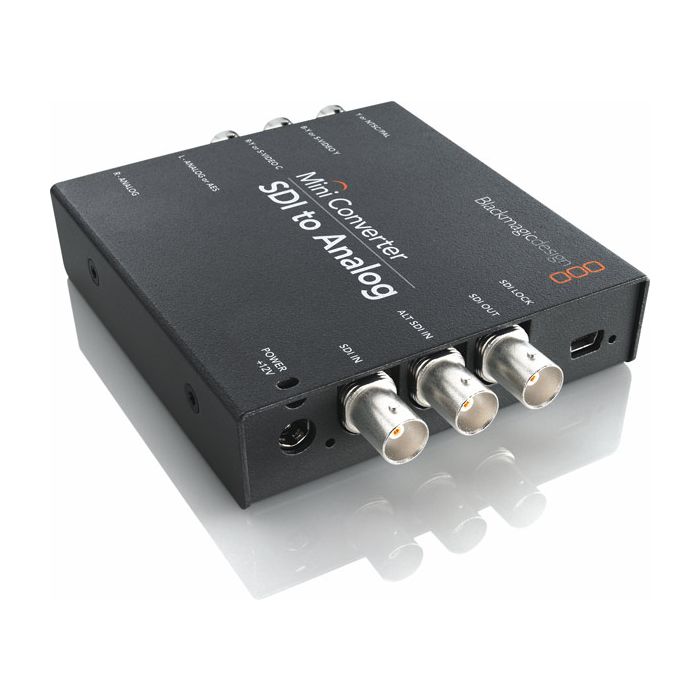

Blackmagic Design Mini Converter SDI to Analog
3G-SDI to Analog YUV/S-Video/Composite with D/Conv and AES/analog audio
MPN: BMD-CONVMASA SKU: BMD-CONVMASA
$185.00
The perfect way to convert from SD and HD-SDI to analog component, s-video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p60 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s-video and composite. Audio can be de-embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to older analog equipment when you don’t need the extra cost of the 6G-SDI 4K model.
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Blackmagic Design’s SDI to Analogue Mini Converter is one of the world’s most sophisticated converters thanks to its use of the latest 6G-SDI technology. Capable of automatically sensing the input video format and instinctively changing between essentially all SD, HD and Ultra HD video standards up to 2160p30. The SDI to Analogue Mini Converter utilises advanced features such as redundant SDI inputs, re-clocked loop outputs, and full analogue and AES/EBU audio connections so you can convert video, as well as embed or de-embed audio.
Thousands of broadcast, news, post production and AV professionals trust Blackmagic Mini Converters to link their equipment together and keep studios operational. Additionally, Blackmagic Mini Converters are intended to be used anywhere. You can install them in equipment racks in the studio, on news trucks, or outside for live sports and similar events.

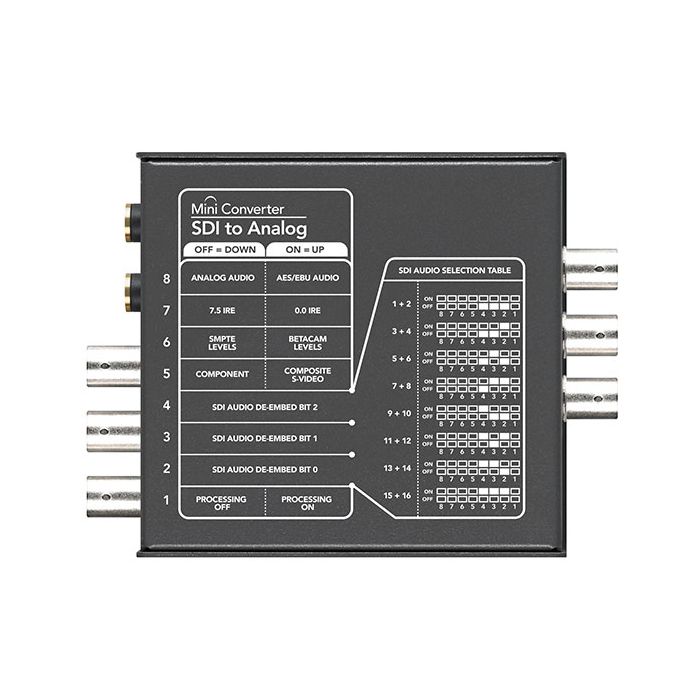

The Blackmagic Design SDI to Analogue Mini Converter uses a simple, condensed design that means it’s easy to use and incredibly dependable when used as part of a 24/7 operation. The built-in connections are quick to access and utilise standard cables, as well as the built-in mini switches which can be used to swiftly change settings. There’s even a diagram with switch settings printed on the back – you’ll never have to look for the manual.
The SDI to Analogue Mini Converter is the ideal way to convert from SD and HD-SDI to analogue component, s-video or NTSC/PAL composite. Capable of supporting all SD and HD input formats up to 1080p60 (including a down converter for converting from HD to standard definition analogue formats such as s-video and composite), audio can be de-embedded to balanced analogue or AES/EBU. When you don’t need the extra cost of the 6G-SDI 4K model, the Mini Converter SDI to Analogue is ideal for converting to older analogue equipment.

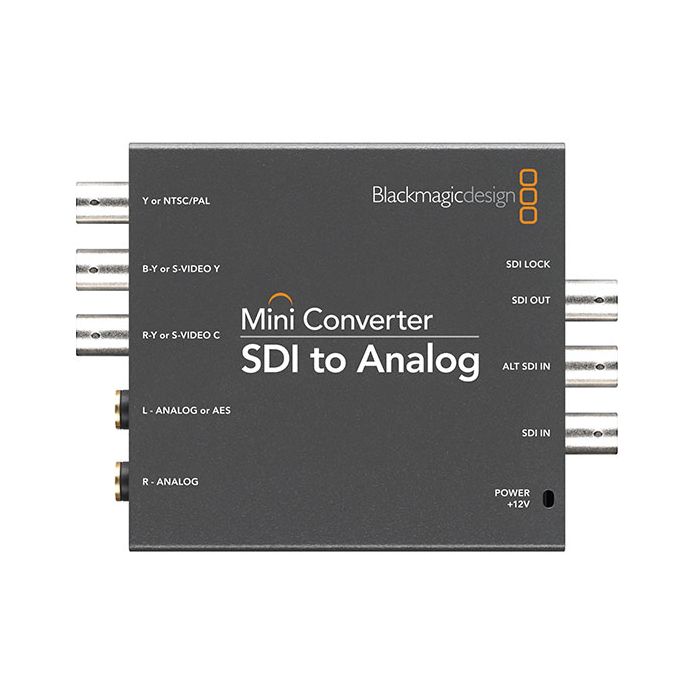

Connections
SDI Video Input
Switchable between SD, HD and 3G-SDI.
SDI Video Output
Automatically matches the SD, HD and 3G-SDI video input.
Analog Video
NTSC, PAL, S-Video and component SD/HD from 3G-SDI input.
Analog Audio
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio
2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of SD, HD, 2K or 3G-SDI.
Updates and Configuration
USB
Reclocking
Yes
Standards
- SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL.
- HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60.
- 2K Format Support: 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25
- SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424Mâ€B, SMPTE 425M, ITUâ€R BT.656 and ITUâ€R BT.601.
- SDI Video Rates: SDI video connections are switchable between SD, HD, and DCI 2K.
- SDI Video Sampling: 4:2:2
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Auto detection of SD, HD or 3G-SDI.
- Analog Format Support: 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC. 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
- Analog Color Space: YUV
- Analog Color Precision: 4:2:2
- Format Conversion: SD down conversion
Software
- Software Control: Mac OS X and Windows software upgrade via USB.
- Internal Software Upgrade: Via included updater application.
Operating Systems
Mac
- Mac OS X 10.9 Mavericks,
- Mac OS X 10.10 Yosemite or later.
Windows
- Windows 7 or Windows 8.
Settings Control
- Mini Switches or USB software.
Power Requirements
- Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
- Power Consumption: 8.04 Watts
- Operational Voltage Range: 12 - 31V DC
Environmental Specifications
- Operating temperature: 0° to 40° C (32° to 104° F)
- Storage temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
Warranty
- 3 Year Limited Manufacturer's Warranty
- Mini Converter SDI to Analog
- Software CD
- 12V universal power supply with international socket adapters
