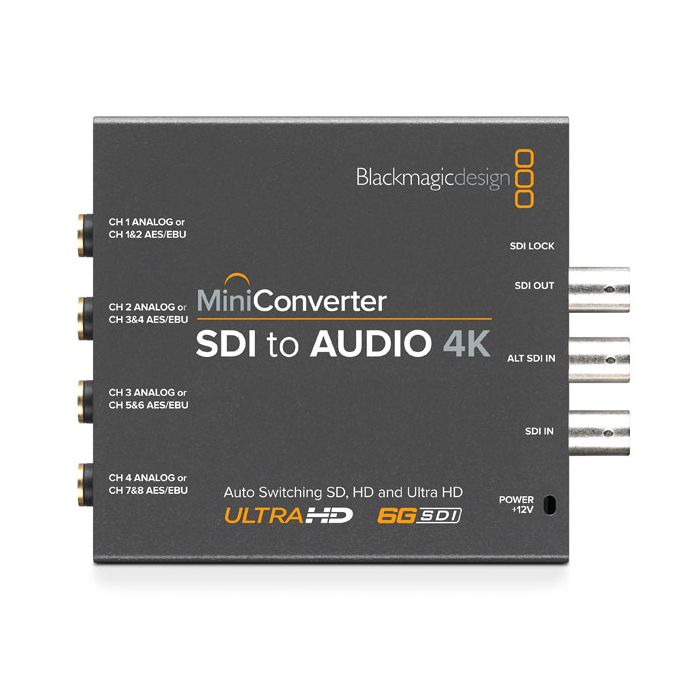

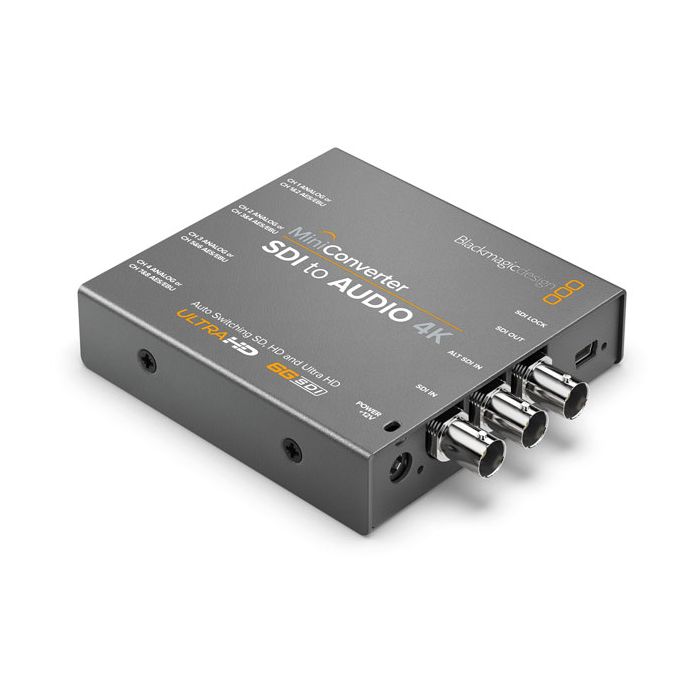

Blackmagic Design Mini Converter SDI to Audio 4K

Connections

SDI Video Input

Switchable between SD, HD, 3G and 6G-SDI.

SDI Video Output

Automatically matches the SD, HD, 3G and 6G-SDI video input.

SDI Redundant Input

Automatically switches over if main SDI input is lost.

Analog Audio

4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

AES/EBU Digital Audio

8 channels of professional balanced digital with standard 1/4 inch jack connections.

Multi Rate Support

Auto detection of 4K, UHD, 2K, HD or SD-SDI inputs.

Updates and Configuration

USB

Reclocking

Yes

Standards

• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036

• SDI Video Rates: SDI video connections are switchable between standard definition and high definition.

• SDI Video Sampling: 4:2:2, 4:4:4

• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.

• SDI Color Precision: 4:2:2, 4:4:4

• SDI Color Space: YUV, RGB

• SDI Auto Switching: Automatically selects between SD, HD, 3G and 6G-SDI.

• SDI Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30.

Software

Software Control: Mac OS X and Windows software upgrade via USB.

Internal Software Upgrade: Via included updater application.

Operating Systems

Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later. Windows 7 or Windows 8.

Settings Control

Mini Switches or USB software.

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.

• Power Consumption: 5.52 Watts

• Operational Voltage Range: 12V - 31V DC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)

• Storage temperature: -20° to 60° C (-4° to 113° F)

• Relative Humidity: 0% to 90% non-condensing

Warranty

3 Year Limited Manufacturer's Warranty.

• Mini Converter SDI to Audio 4K

• 12V universal power supply with international socket adapters
