Blackmagic Design 3 Year Extended Warranty for Mini Converter SDI to HDMI 6G
Blackmagic Design
BMD-CONVMBSH4K6G-EW
$30.00
Click image to zoom

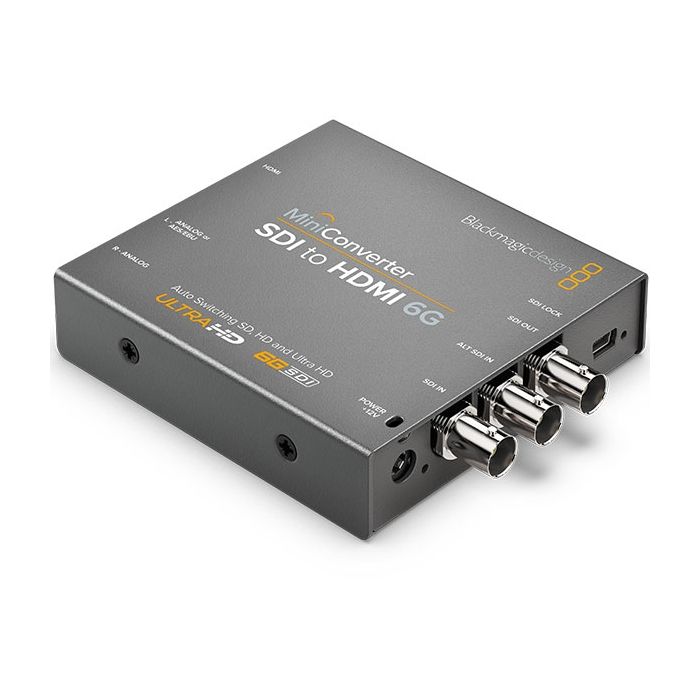

Blackmagic Design Mini Converter SDI to HDMI 6G
Convert SDI in SD, HD and Ultra HD to HDMI 4K with analogue and AES audio
MPN: BMD-CONVMBSH4K6G SKU: BMD-CONVMBSH4K6G
$160.00
Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analog audio. You also get advanced features such as down conversion for monitoring Ultra HD on HD HDMI monitors as well as built in 3D LUTs plus HDMI instant lock for instant video display when an SDI input is connected.
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
You get advanced features such as redundant SDI inputs, re-clocked loop outputs, HDMI instant lock, 33 point LUT support, and full analogue and AES/EBU audio connections so you can convert video, as well as embed or de-embed audio.
Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analogue audio. You also get advanced features such as down conversion for monitoring Ultra HD on HD HDMI monitors as well as built in 3D LUTs plus HDMI instant lock for instant video display when an SDI input is connected.
The new Mini Converter SDI to HDMI 6G and Mini Converter HDMI to SDI 6G models make it possible to convert SDI to HDMI or HDMI to SDI in all formats up to 2160p30 at an even more affordable price. The Mini Converter SDI to HDMI 6G model is also dramatically more powerful with HDMI instant lock, 33 point 3D LUT support and Ultra HD to HD down conversion. HDMI instant lock can lock to a new signal in as little as 1 frame, so you get glitch free switching when changing between sources that have the same video format. New 33-point 3D LUT support lets you apply custom looks in realtime using high precision film quality look up tables. Plus you still get the same powerful Mini Converter features such as independent balanced analogue and AES/EBU digital audio connections, redundant SDI inputs to protect against cable damage and automatic switching between SD, HD and Ultra HD video standards.
HDMI Instant Lock
Get instant image lock when using consumer HDMI TV’s HDMI televisions and projectors can take a long time to lock onto a signal when a new source is connected. HDMI Instant Lock on the Mini Converter SDI to HDMI 6G solves this problem by continuously sending an active HDMI signal to the display. When you switch to a new source that’s the same format as the previous signal it will lock in as little as 1 frame so you get glitch free clean switching.
33 Point 3D LUT Support
Create custom looks with high precision 3D LUTs Mini Converter SDI to HDMI 6G also includes a full 33 point 3D lookup table for high precision colour conversions. That means you can apply custom looks, colour and gamma changes in realtime for on set monitoring. LUTs can also be used with the SDI loop output, transforming the converter into a 3D LUT processor! The LUT’s are compatible with DaVinci Resolve so you get consistent colour on set and in post.
- Convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analogue audio
- Down conversion for monitoring Ultra HD on HD HDMI monitors
- Built in 3D LUTs
- HDMI instant lock for instant video display when an SDI input is connected

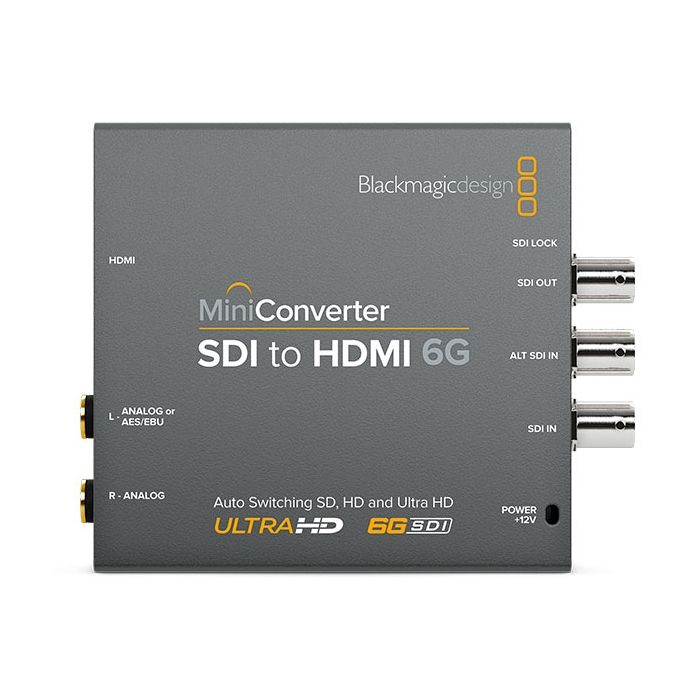

Connections
- SDI Video Inputs: 1 x SD, HD or 6G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
- SDI Video Outputs: 1 x SDI Video Loop Output.
- HDMI Video Outputs: HDMI type A out.
- Analog Audio Outputs: 2 channels of balanced analog audio.
- Digital Audio Outputs: 4 channels of AES/EBU digital audio
- SDI Redundant Input: Automatically switches over if main SDI input is lost.
- Multi Rate Support: Auto detection of SD, HD or 6G-SDI.
- Updates and Configuration: USB
- Reclocking: Yes
Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
- 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K Video Standards: 4K DCI 24p
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081
- SDI Video Rates: SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI.
- SDI Video Sampling: 4:2:2 and 4:4:4
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- SDI Color Precision: 4:2:2 and 4:4:4
- SDI Color Space: YUV and RGB
- SDI Auto Switching: Automatically detects SD, HD or 6G-SDI.
- HDMI Video Standards: 625i50 PAL, 525i59.94 NTSC 720p50, 720p59.94, 720p60
- 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- HDMI Color Space: YUV and RGB
- HDMI Color Precision: 4:2:2 and 4:4:4
Software
- Software Control: Mac OS X and Windows software upgrade via USB.
- Internal Software Upgrade: Via included updater application.
Operating Systems
- macOS 10.12 Sierra, macOS 10.13 High Sierra or later,
- Windows 8.1 or Windows 10.

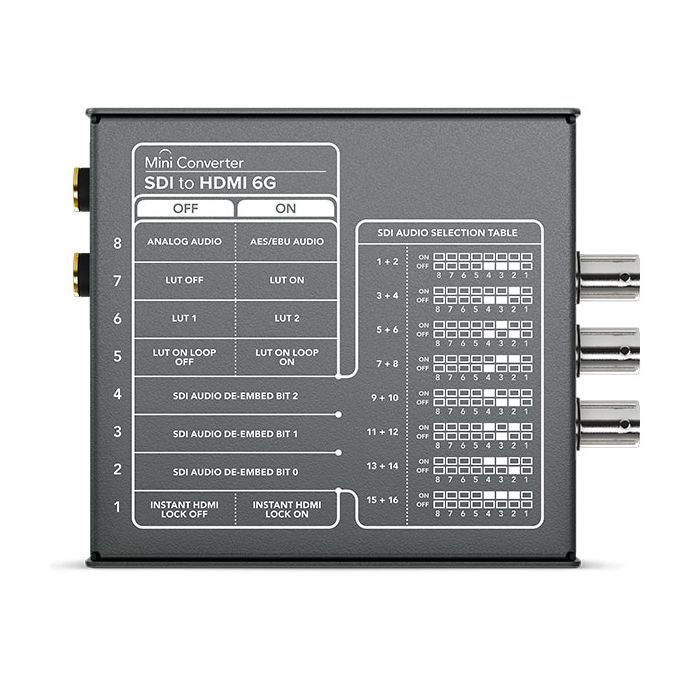

Settings Control
- Mini Switches or USB software.
Power Requirements
- +12V universal power supply included with international socket adapters for all countries. Cable tie point.
- Power Consumption: 5.2 Watts
- Operational Voltage Range: 12 - 31V DC
Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
Warranty
- 3 Year Limited Manufacturer's Warranty.
- Mini Converter SDI to HDMI 6G
- 12V universal power supply with international socket adapters
