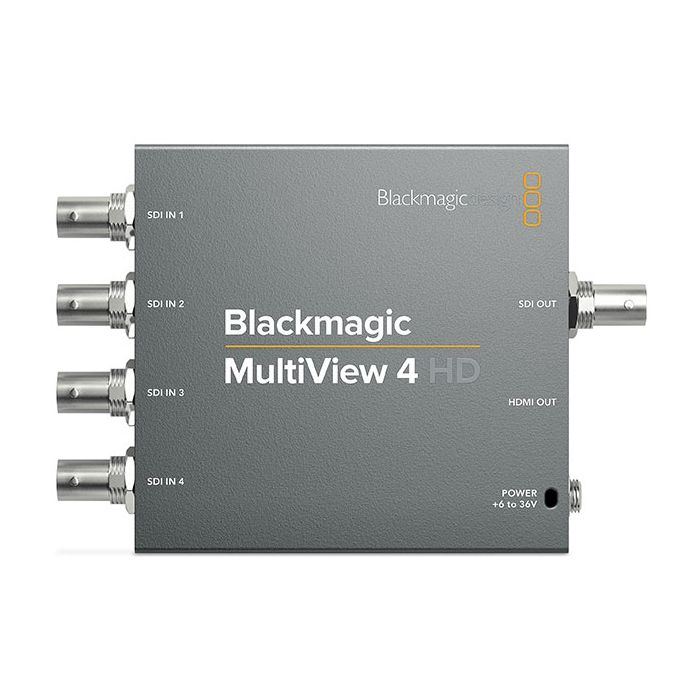

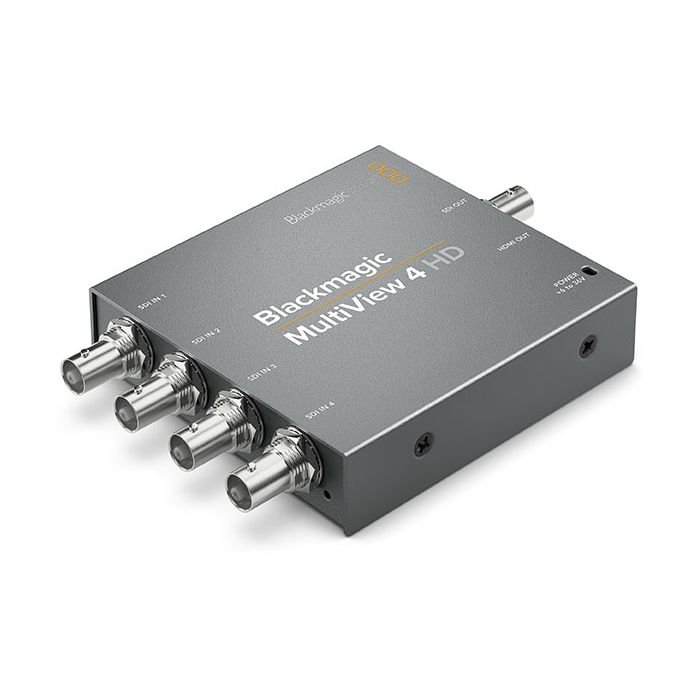

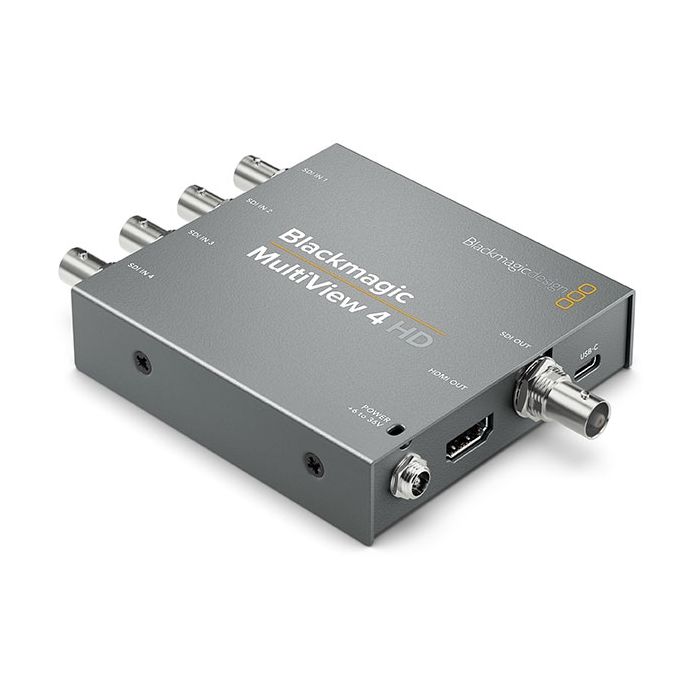

Blackmagic Design MultiView 4 HD

Low cost HD multi viewer

MPN: BMD-HDL-MULTIP3G/04HD SKU: BMD-HDL-MULTIP3G/04HD

$153.33

The MultiView 4 HD is a low cost multiviewer featuring 4 x SDI Inputs and both SDI and HDMI Outputs

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

Monitor Up to Four Different SD and HD Sources on the Same Display At The Same Time
The MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display. Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions.

All Blackmagic MultiView models are designed to be durable and rugged enough for use out in the field or back in the studio, and are built for 24/7 dependability.

Designed To Be Small, Durable and Easy To Use

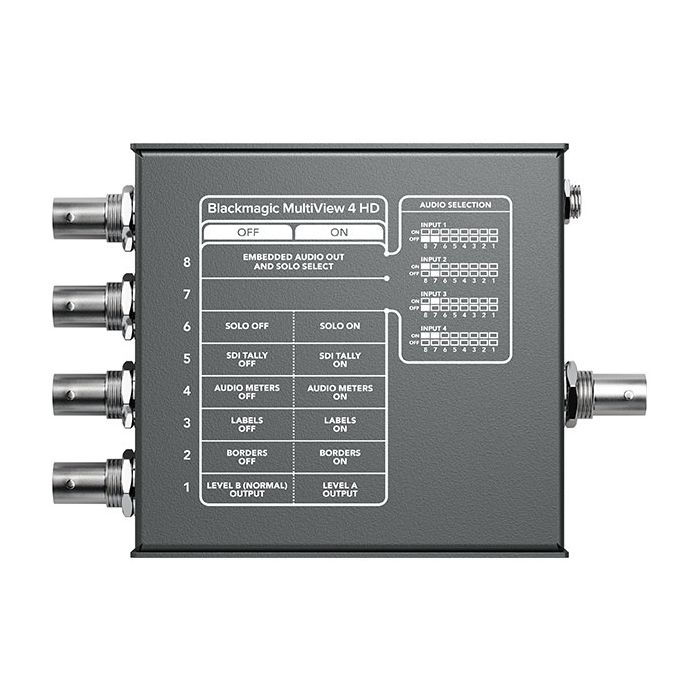

MultiView 4 HD features a very small, all metal design that’s extremely durable so it can be used in harsh outdoor broadcast environments or installed behind equipment. All you have to do is connect your sources and it will automatically output them in a 2x2 grid on a single display. MultiView 4 HD features built in switches that can be used to turn labels on and off, add borders, select audio and more. Whether you’re in an outside broadcast truck or on location at a live event, you can combine MultiView 4 HD with an HDMI television and build the world’s most affordable professional multiview solution.

Low cost HD multi viewer
Multi rate SDI inputs with full frame re-synchronization

Connections

SDI Video Inputs: 4 x 10-bit SD-SDI and HD-SDI.
SDI Video Outputs: 1 x HD-SDI.
SDI Rates: 270Mb, 1.5G, 3G.
SDI Video Multi View Outputs: 1 x 10-bit HD-SDI.
HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor.
SDI Reclocking: On all SDI outputs, auto switching between standard definition or high definition.
Reference Input: None
Multi Rate Support: Auto detection of SD or HD.
Updates: USB 2.0 high speed (480Mb/s) interface.
Configuration: USB 2.0

Standards

SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24 1080i50, 1080i59.94, 1080i60
2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
Audio Meters: Each view, VU standard.
Source Routing: None
SDI Video Sampling: 4:2:2 and 4:4:4.
SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision: 10-bit 4:2:2 and 4:4:4.
SDI Color Space: YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching: Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.

Control

Built in Control Panel: None
External Control Panel: None

Display

None

Software

Software Control: MultiView software included free for Windows™ and Mac OS X™.
Internal Software Upgrade: Via included updater application.

Operating Systems

macOS 10.12 Sierra, macOS 10.13 High Sierra or later.
Windows 8.1 or Windows 10.

Power Requirements

Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Fail Protection: MultiView 4 HD settings preserved and restored instantly at power on.
Power Consumption: 5.5 Watts
Operational Voltage Range: 6 to 36V DC
