Blackmagic Design 3 Year Extended Warranty for PYXIS Monitor EVF Kit
Blackmagic Design
BMD-CINEURSABB/AMKITEVF-EW
$70.00
Click image to zoom

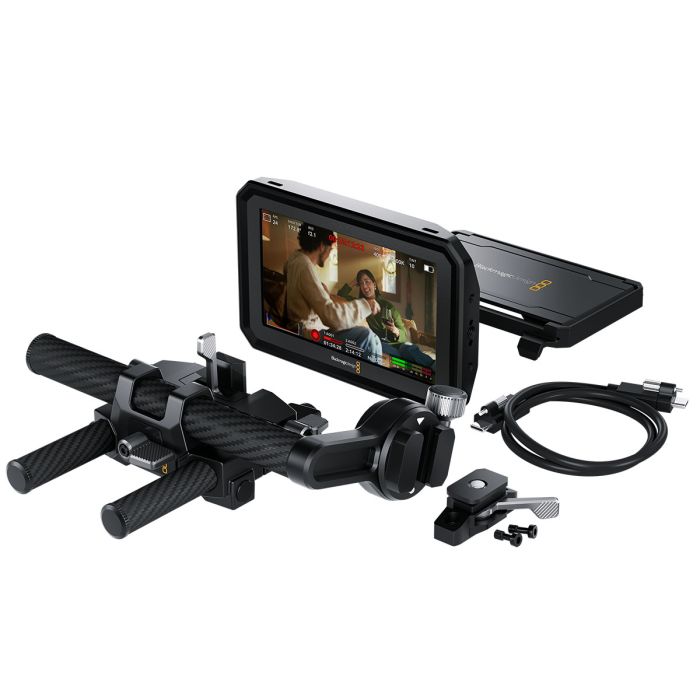

Blackmagic Design PYXIS Monitor EVF Kit
Full PYXIS Monitor kit plus URSA Cine EVF mounting hardware. Get PYXIS Monitor, sunshade, 2 USB-C cables, PYXIS Monitor Mount, PYXIS EVF Mount and EVF mount with carbon fiber rods.
SKU: BMD-CINEURSABB/AMKITEVF
$500.00
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as en electronic viewfinder.
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Coming Soon!
Add Touchscreen Monitoring with Camera Control

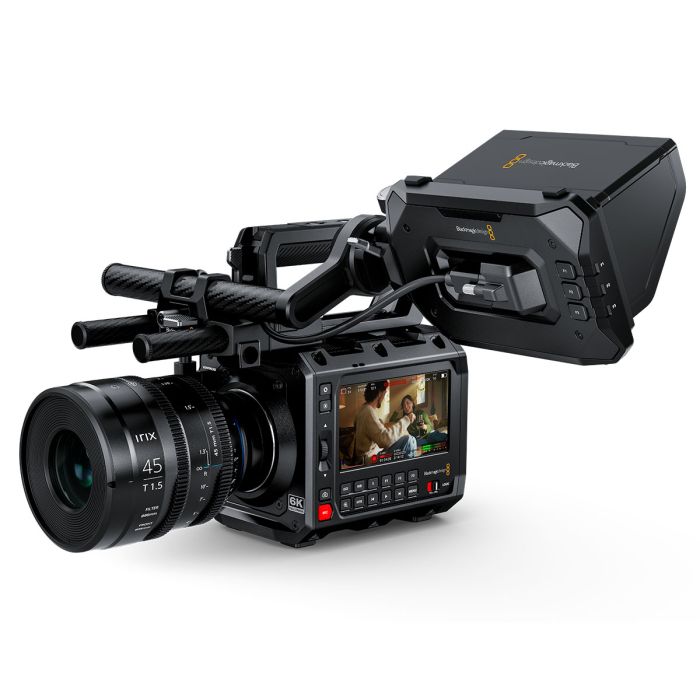

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides the same controls and overlays as PYXIS’ built in LCD, so it’s perfect to use when rigging or accessories block the internal display. Multiple mounting points make it easy to attach on any camera rig and use as a large viewfinder for easier focusing and framing. Or use it as an assist station so crew can frame and monitor shots from any position on set! There are 3 customizable buttons for quick access to zebra, focus assist, false color and more. Plus, the bright 1500 nit display and removable sunshade ensure visibility, even in sunlight.
Connections
- USB-C with Locking Connector: Video, power, data and software updates.
Features
- Display Size: 5 inch.
- Display Resolution: Full 1920 x 1080.
- Display Type: LCD capacitive touchscreen.
- Display Brightness: 1500 nits.
- Frame Rates: Up to 60fps.
- Tally: Rear facing LED tally light.
- Accelerometer: Automatically rotates image when monitor mounted upside down.
Control
- On Screen Controls:
- Tap screen to control Monitor Overlays,
- Frame Rate, Shutter, Iris, Timecode,
- ISO, White Balance, Tint, Power,
- Record Start/Stop, Media, Audio,
- Focus Zoom, Digital Slate
- and camera menus.
- Button Controls:
- Includes F1, F2, F3 assignable function
- buttons to recall preset parameters or
- toggle functions.
- Function Button Presets:
- FPS: Preset Value
- Iris: Preset Value
- WB: Preset Value
- ISO: Preset Value
- Shutter: Preset Value
- Function Button Toggle:
- Clean Feed
- Status Text
- Display LUT
- Frame Guides
- Focus Assist
- False Color
- Zebra
- Grid
- Safe Area Guide
- Off Speed Rec
- Focus Zoom
- Focus
- Record
- Auto White Balance
- Color Bars
- Playback
- False Color + Zebra
- OIS
- Stream
- Still
Mounting
- Mounting Points:
- 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
- 2 x M4 bottom mounting points.
- 1 x 1/4-20 side mounting point with ARRI locating pin pattern.
- 2 x M4 side mounting points.
- Mounting Brackets:
- Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit.
- Blackmagic PYXIS Monitor Fixed Mount ‑ included in Kit.
- Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in Kit.
Compatible Cameras
- Blackmagic PYXIS 6K
- Blackmagic PYXIS 6K PL
- Blackmagic PYXIS 6K EF
- Blackmagic URSA Cine 12K LF
- Blackmagic URSA Cine 17K 65
Operating Systems
- Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
- Windows 10 and 11.
Power Requirements
- Powered over USB-C.
Environmental Specifications
- Operating Temperature: 0°to 40°C (32° to 104°F)
- Storage Temperature: -20°to 60°C (-4° to 140°F)
- Relative Humidity: 0% to 90% non-condensing
Warranty
- Product Warranty: 1 Year Limited Manufacturer’s Warranty.
- Blackmagic PYXIS Monitor
- Blackmagic PYXIS Clip On Sunshade
- Blackmagic PYXIS Monitor Swivel Mount
- Blackmagic PYXIS Monitor Fixed Mount and screws
- Blackmagic PYXIS Monitor Dovetail Shoe and screws
- Blackmagic URSA Cine EVF Bracket rod mount
- Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
- 2 x short 15mm carbon fibre rods
- 1 x USB-C viewfinder cable
- Welcome wallet with QR code for software download
- Blackmagic Design Sticker
