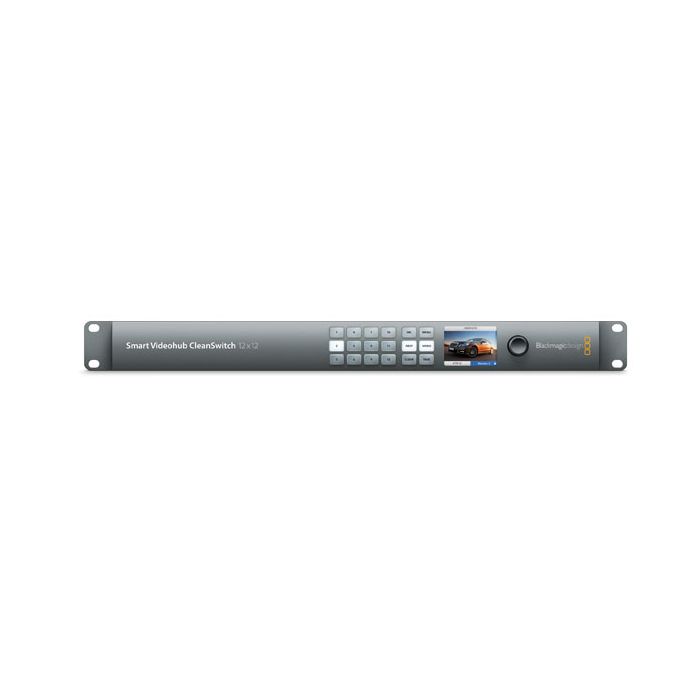

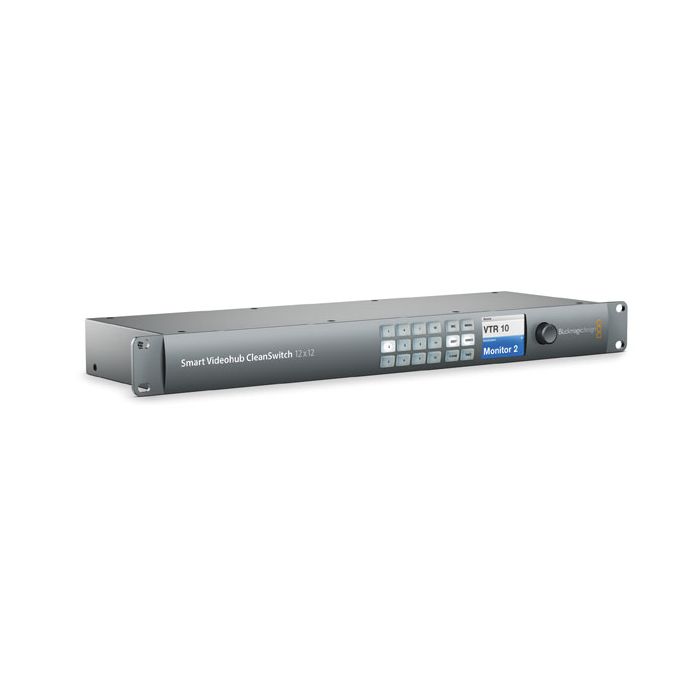

Blackmagic Design Smart Videohub CleanSwitch 12x12 6G Video Router
Compact 6G-SDI video router with built in re-syncronizer supports SD, HD and Ultra HD formats up to 2160p30
MPN: BMD-VHUBSMTCS6G1212 SKU: BMD-VHUBSMTCS6G1212
$1,165.00
Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control.
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Blackmagic Design Smart Videohub CleanSwitch is a 6G-SDI router with built in re-synchronizers on all inputs and a tiny footprint. This enables clean switching between all video sources of the same video standard and can also allow for use as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch delivers 12 inputs and 12 outputs in essentially all SD, HD and Ultra HD video formats. Simultaneous multiple formats on the same router are also supported, enabling clean switch between different formats that match the reference frame rate when the switching is between the same video standard. A front panel button and spin knob routing are also included, as is an elegant machined metal front panel with LCD for routing display and video monitoring.
The Blackmagic Design Smart Videohub CleanSwitch 12x12 is a specialist model of Videohub that features resynchronization on all inputs, providing perfect clean feeds every time. To cleanly switch between video sources and monitors or directly to air, timed or genlocked signals are required. Smart Videohub CleanSwitch 12x12 has all of the same great features of the Smart Videohub 12x12, as well as including full resynchronization on every input so the router automatically re-times all inputs to ensure clean, glitch free switching between router cross points. Sources of different resolutions and the same frame rate can even be output directly to air for smooth, cuts only production. Just like all Smart Videohub models, you can control Smart Videohub CleanSwitch directly from the front panel or remotely over ethernet using the Videohub Control Panel software on a Mac or PC.

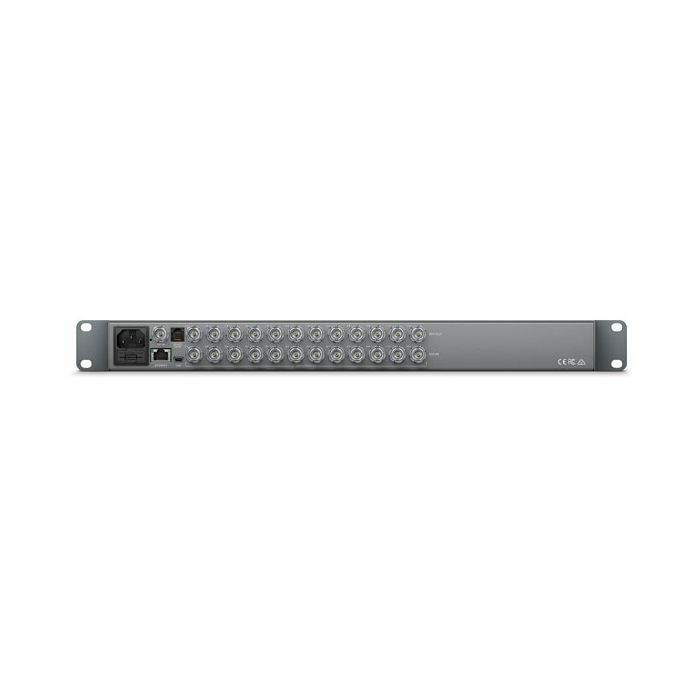

Connections
- SDI Video Input: 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
- SDI Video Output: 12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
- Reference Input: Black burst and Tri-Sync for SD, HD and 4K.
- Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
- Updates: USB or Ethernet.
- Front Panel Router Control: 12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
- Router Configuration: Via front panel LCD or RJ45 Ethernet.
- RS-422 Router Control: 1 x input for controlling router crosspoint switching.
- Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
Standards
- SD Format Support: 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.
- HD Format Support: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
- 2K Format Support: 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25
- 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, SMPTE 425M Level A, ITU-R BT.656 and ITU-R BT.601.
- SDI Video rates: SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
- SDI Video Sampling: 4:2:2 and 4:4:4
- SDI Audio Sampling: Television standard sample rate of 48kHz and 24 bit.
- SDI Color Precision: 4:2:2 and 4:4:4 10 bit.
- SDI Color Space: YUV or RGB.
- SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
- SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
Display
Display: Built-in LCD for video and menu settings.
Software
- Software Control: Router control included free for Windows and Mac OS X.
- Internal Software Upgrade: Via included updater application.
Operating Systems
Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later. Windows 7 or Windows 8.
Power Requirements
- Power Fail Protection: Router connections preserved and restored instantly at power on.
- Power Supply: IEC power cable required. 90 - 240V AC input.
Physical Installation
Physical Installation: 1 rack unit size. Less than 6 inches deep.
Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
What's Included
- Smart Videohub CleanSwitch 12x12
- Software SD card
Warranty
12 Month Limited Manufacturer's Warranty.
