Blackmagic Design 3 Year Extended Warranty for SmartView Duo 2
Blackmagic Design
BMD-HDL-SMTVDUO2-EW
$60.00
Click image to zoom

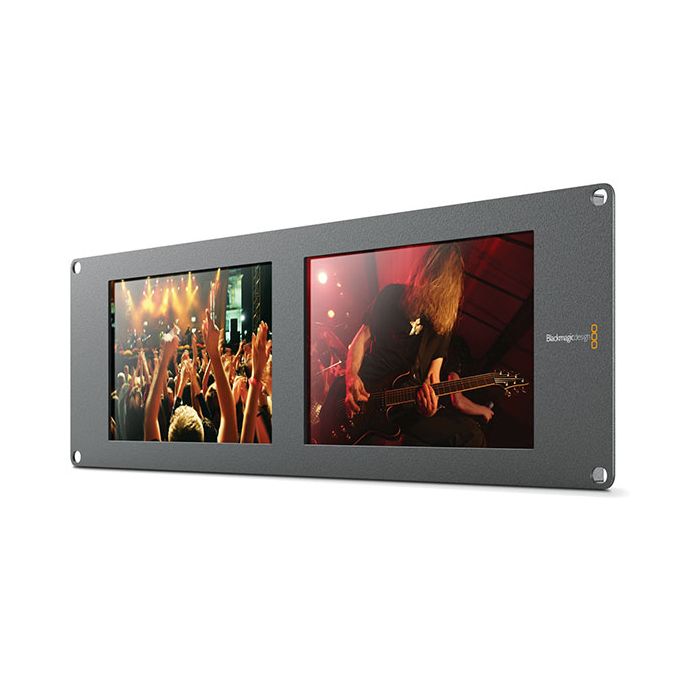

Blackmagic Design SmartView Duo
Dual 8 inch 3 RU SDI/HD-SDI/3G SDI monitoring with central software control.
MPN: BMD-HDL-SMTVDUO2 SKU: BMD-HDL-SMTVDUO2
$448.33
SmartView is the affordable and compact SDI rack monitoring system perfect for post production, broadcast or live events. SmartView is available in two exciting ultra thin compact rack mount designs that are only an inch thick. SmartView Duo features two beautiful 8" LCD screens and for monitoring of multiple sources and the new SmartView HD with a large 17" LCD screen. Both SmartView models handle all SD, HD and 3 Gb/s SDI video formats and include built in ethernet so can be remotely adjusted from your Mac or PC. SmartView includes red, green and blue tally indications, perfect for the largest broadcast systems! With SmartView monitoring you can afford to put SDI monitoring everywhere you need it!
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
SmartView is the affordable and compact SDI rack monitoring system perfect for post production, broadcast or live events. SmartView is available in two exciting ultra thin compact rack mount designs that are only an inch thick. SmartView Duo features two beautiful 8" LCD screens and for monitoring of multiple sources and the new SmartView HD with a large 17" LCD screen. Both SmartView models handle all SD, HD and 3 Gb/s SDI video formats and include built in ethernet so can be remotely adjusted from your Mac or PC. SmartView includes red, green and blue tally indications, perfect for the largest broadcast systems! With SmartView monitoring you can afford to put SDI monitoring everywhere you need it!
Connections
- SDI Video Input: Switchable between SD, HD and 3 Gb/s SDI. Reclocked loop through output.
- Multi Rate Support: Auto detection of 2K, HD or standard definition inputs
- Updates and Configuration: Via USB 2.0 high speed (480 Mb/s)
- Ethernet: 10/100 BaseT with loop through.
- Tally: 9-pin D connector
Standards
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
- SDI Color Space: REC 601, REC 709
- SDI Auto Switching: Automatically selects between SD, HD and 3 Gb/s SDI
- Video Sampling: 4:2:2 and 4:4:4
- SDI Format Support: 525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25,2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24,2048x1556PsF/25
Extras
- Software Control: Mac OS X™ and Windows™
- Internal Software Upgrade: Via included firmware updater software
- Settings Control: Via USB or Ethernet
- Rack Height: 3 Rack Units
- Display Size: 8" diagonal
- Display Element: TFT Active Matrix LCD
- Display Resolution: 800 x 480 pixels
- Response: < 15 ms
- Contrast Ratio: Typically 500:1
- Color Depth: 16.7 Million Colors
- Display Orientation: Displays can rotate upside down for optimum viewing angle
- Power Supply: 12V universal power supply included with international socket adapters for all countries
- Power Consumption: < 20 Watts
- Operational Voltage Range: 12V - 15V
- Product Warranty: 12 Months Limited Manufacturer's Warranty
