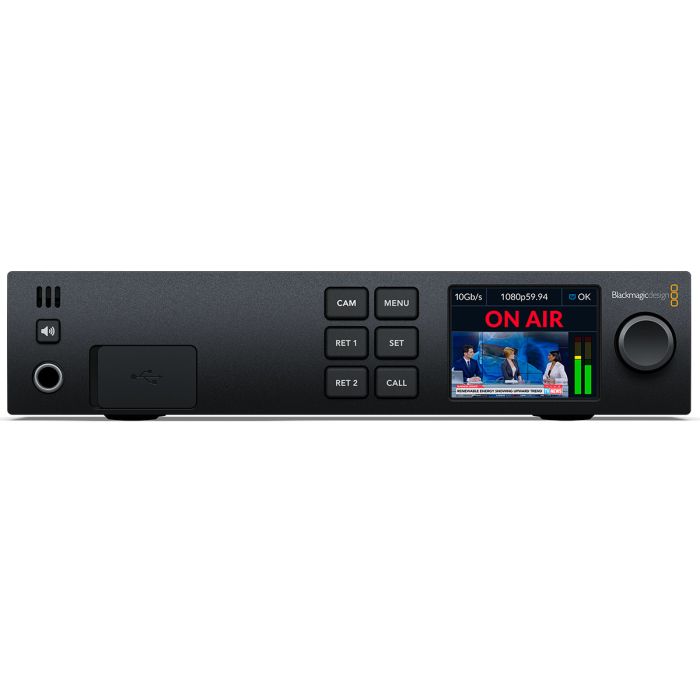

Blackmagic Design Studio Converter

• Converter for Studio Camera 4K Pro
• Ethernet IP link connection
• Camera feed, return program feed, timecode, reference, tally, talkback and control are all sent down the single cable
• Power the camera via the Ethernet cable and convert the camera and program return feeds to SDI
• Use low cost 10G copper Ethernet cables

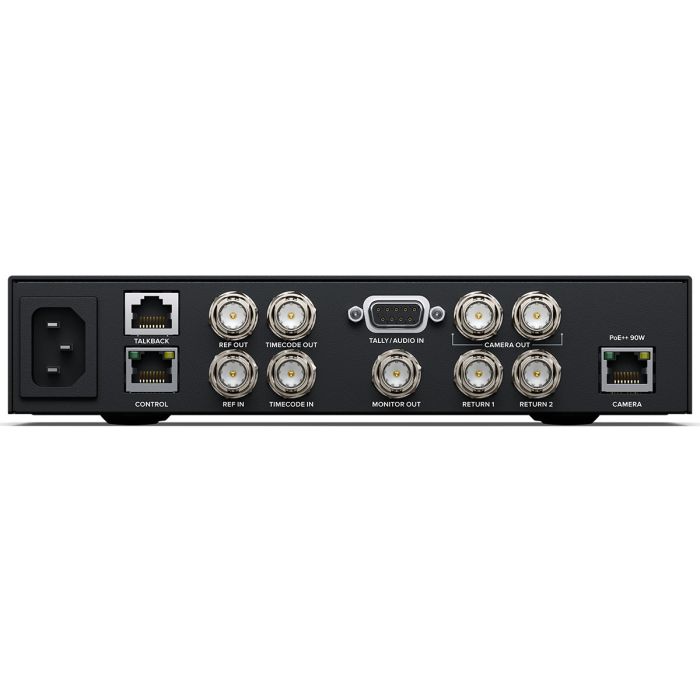

Connections

• SDI Video Inputs: 2
• SDI Video Outputs: 2
• SDI Monitor Outputs: 1
• SDI Rates: 1.5G, 3G, 6G, 12G.
• Built in Speaker: Mono
• Analog Audio Inputs: 2 channel analog Program audio in supported via 9‑pin connector.
• Analog Audio Outputs: 1 x 6.35 mm headphone jack.
• SDI Audio Input:
  • Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.
  • 4 talkback channels on 13, 14, 15 and 16.
  • Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI.
• SDI Audio Output:
  • 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.
  • 4 talkback channels on 13, 14, 15 and 16.
• Timecode Connections: 1 x BNC In, 1 x BNC Out.
• Reference Connections:
  • 1 x BNC In, 1 x BNC Out.
  • Tri-Sync or Black Burst.
• Talkback Audio:
  • SDI channels 13 and 14 for Engineering talkback.
  • SDI channels 15 and 16 for Production talkback.
  • RJ-45 Talkback connector for analog external talkback systems.
• Screen: 2.2 inch LCD
• Ethernet:
  • 1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable.
  • 1 x 1Gb/s for external control and software updates.
• Computer Interface: 1 x USB-C.

Standards

• HD Video Standards:
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97,
  • 1080p30, 1080p50, 1080p59.94, 1080p60,
  • 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards:
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97,
  • 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
• Audio Sampling: Television standard sample rate of 48kHz and 24‑bit.
• Video Sampling: 4:2:2
• Color Precision: 10-bit
• Color Space: REC 709, REC 2020.
• Multiple Rate Support: SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI.

Control

• Built in Control Panel: 7 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
• External Control: RJ-45 1Gb/s Ethernet.

Software

• Software Included: Camera Utility for firmware update.

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
• Windows 10, 64-bit.

Power Requirements

• Power Supply: 100 - 240V AC input.
• Power Supply: 1 x Internal 100 - 240V AC 50/60Hz.
• Power Usage: 40 W max plus camera power usage.

Optional Accessories

• Blackmagic Universal Rack Shelf

Environmental Specifications

• Operating Temperature: 0° to 45° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Warranty

• 1 Year Limited Manufacturer's Warranty.
