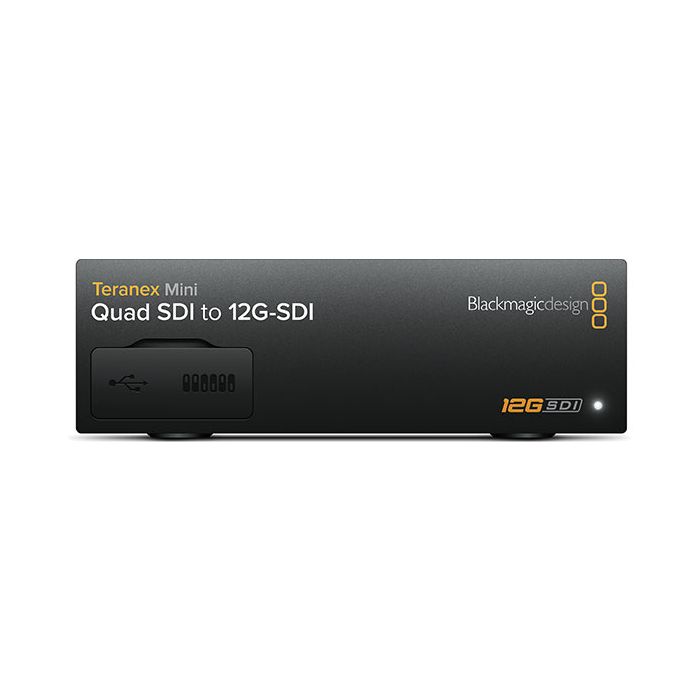

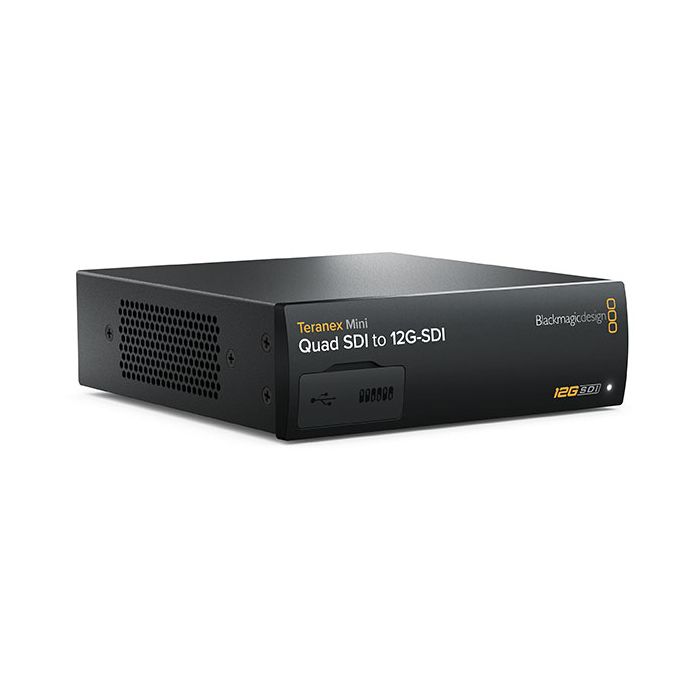

Blackmagic Design Teranex Mini Converter Quad SDI to 12G-SDI

Convert Quad Link SDI to 12G-SDI

MPN: BMD-CONVNTRM/DA/QDSDI SKU: BMD-CONVNTRM/DA/QDSDI

$440.00

Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

The Blackmagic Design Teranex Quad SDI to 12G-SDI Mini Converter converts Quad Link SDI to 12G-SDI, enabling the user to connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. This means that equipment that uses four BNC cables can be connected using a single 12G-SDI BNC cable - for connection to the latest routers, switchers, projectors and more. It also supports both Level A and Level B 3G-SDI equipment.

Utilising award winning Teranex quality and support for all SD, HD and Ultra HD formats up to 2160p60 this Quad SDI to 12G-SDI Mini Converter is the next generation in 12G-SDI converters. All Teranex Minis include professional XLR analogue and AES/EBU audio connections, an internal AC power supply and an ethernet connection for remote management and PoE alternate power. Teranex Minis also include an upgradable front panel to accommodate a colour display and user controls for speed monitoring video and adjusting settings right from the front of the converter.

The all new Blackmagic Design Teranex Quad SDI to 12G-SDI Mini Converter means that building facilities and supporting a wide range of video equipment is easier than ever before. Ideal for broadcast installations, because they can be rack mounted and the optional front panel lets you see what’s being converted on the screen, the Mini Converter can even be remote managed over ethernet. Its compact size makes it great for portable racks at live events or in broadcast trucks, plus it has professional XLR audio connections for connecting to mixers and other audio gear. You can even use it in editing and colour grading suites to drive big screen displays and projectors.

Teranex Minis are so small that you can use them like regular a mini converter - hiding them in cable ducts, behind equipment and attached to televisions for monitoring. Teranex Mini’s new flexible design also lets you use them on the desktop where you can see them, or rack mount them in larger broadcast systems. Unlike regular mini converters, you get full size professional XLR audio connections built into the converters, plus each converter has an ethernet connection. Mini switches mean you can change settings instantly or, when you’re doing mission critical work, add the optional front panel to see exactly what you’re converting.

  • Convert Quad Link SDI to 12G-SDI
  • SDI Video Input: 4 x 12G-SDI SD/HD/2K/4K auto switching
  • SDI Video Output: 1 x 12G-SDI output
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K
  • Updates and Configuration: USB or Ethernet
  • Re-Clocking: Yes

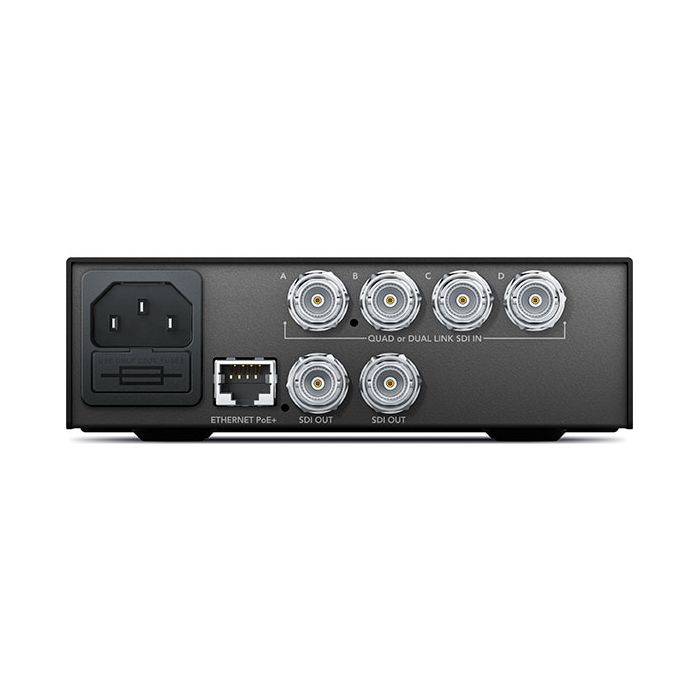

Connections

  • SDI Video Input: 4 x 12G-SDI SD/HD/2K/4K auto switching
  • SDI Video Output: 1 x 12G-SDI output
  • Multi Rate Support: Automatic switching between SD/HD/2K and 4K
  • Updates and Configuration: USB or Ethernet
  • Re-Clocking: Yes



Standards

  • SD Format Support: 525/29.97 NTSC, 625/25 PAL
  • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
  • 2K Format Support: 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.
  • Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,
  • 4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
  • SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ST-2081 & ST-2082
  • SDI Video Rates: SDI video connections are switchable between standard definition, high definitionlevel A and level B 3G-SDI, 6G-SDI and 12G-SDI.
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • SDI Color Space: YUV & RGB



Software

  • Software Control: Mac OS X and Windows software upgrade via USB and Ethernet.
  • Internal Software Upgrade: Via included updater application.



Settings Control

  • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
  • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.



Power Requirements

  • Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
  • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
  • Power Consumption: 14 Watts
  • Operational Voltage Range: 90 - 240V AC



Environmental Specifications

  • Operating Temperature: 0°to 40°C (32° to 104°F)
  • Storage Temperature: -20°to 60°C (-4° to 140°F)
  • Relative Humidity: 0% to 90% non-condensing



Warranty

  • 3 year Limited Manufacturer’s Warranty.
  • Teranex Mini - Quad SDI to 12G-SDI
  • Software and manual SD Card
