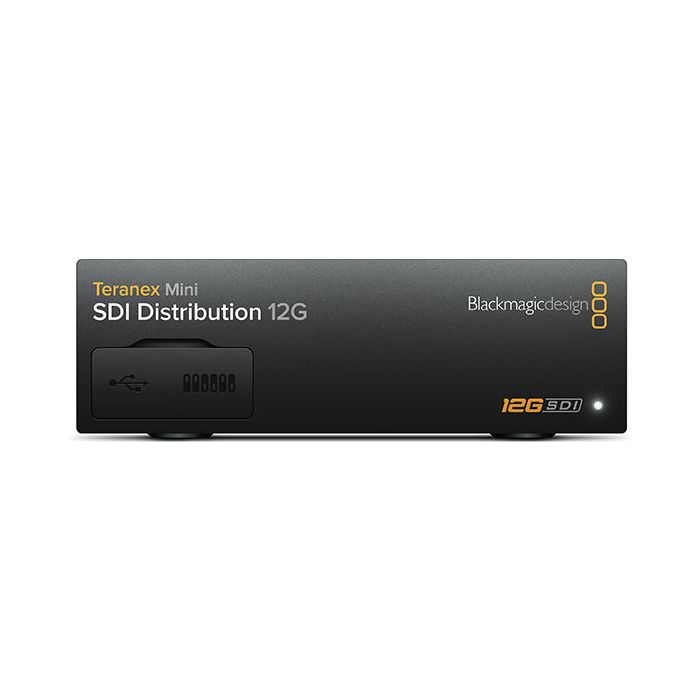

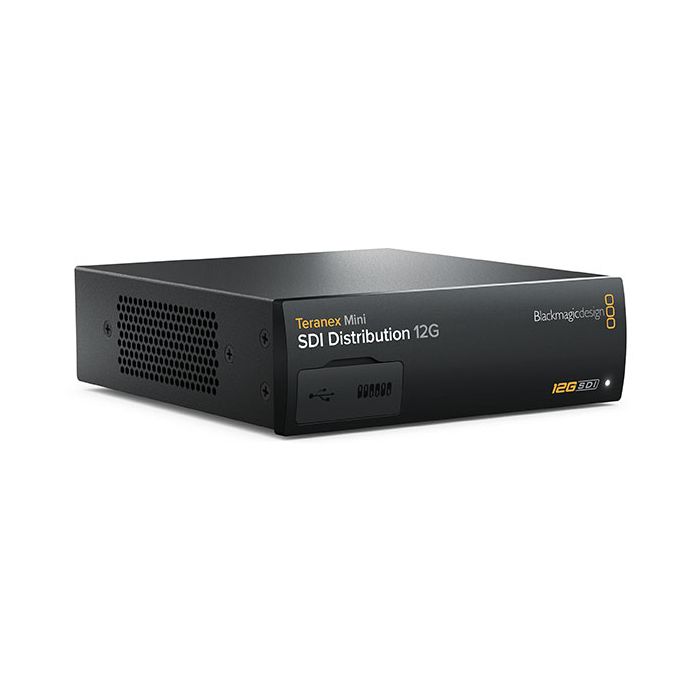

Blackmagic Design Teranex Mini Converter SDI Distribution 12G

• Distribute a single SDI video input to up to eight SDI outputs

• SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.

• SDI Video Output: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input

• Multi Rate Support: Automatic switching between SD/HD/2K and 4K

• Updates and Configuration: USB or Ethernet

• Re-Clocking: Yes

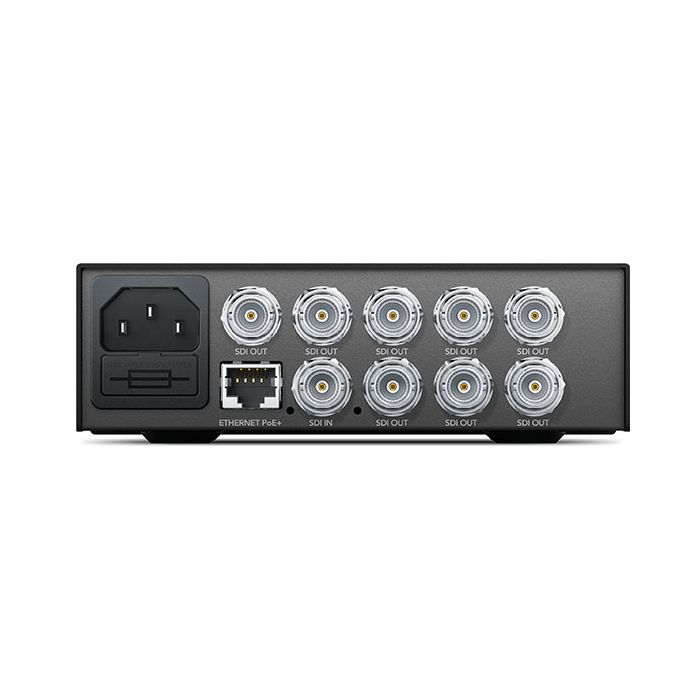

Connections

• SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.

• SDI Video Output: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input

• Multi Rate Support: Automatic switching between SD/HD/2K and 4K

• Updates and Configuration: USB or Ethernet

• Re-Clocking: Yes

Standards

• SD Format Support: 525/29.97 NTSC, 625/25 PAL

• HD Format Support: 720p50, 59.94, 60 1080i50, 59.94, 60 1080PsF23.98, 24 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

• 2K Format Support: 1080PsF23.98, 24, 125 1080p23.98, 24, 25

• Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.

• 4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.

• SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ST 2081 & ST 2082

• SDI Video Rates: SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.

• SDI Video Sampling: 4:2:2 and 4:4:4

• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.

• SDI Color Space: YUV & RGB

Software

• Software Control: Mac OS X and Windows software upgrade via USB and Ethernet.

• Internal Software Upgrade: Via included updater application.

Settings Control

• Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.

• Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

• Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

• Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).

• Power Consumption: 18 Watts

• Operational Voltage Range: 90 - 240V AC

Environmental Specifications

• Operating Temperature: 0°to 40°C (32° to 104°F)

• Storage Temperature: -20°to 60°C (-4° to 140°F)

• Relative Humidity: 0% to 90% non-condensing

Warranty

• 3 year Limited Manufacturer’s Warranty.

• Teranex Mini - SDI Distribution 12G

• Software and manual SD Card
