Blackmagic Design 3 Year Extended Warranty for Ultimatte Smart Remote 4
Blackmagic Design
BMD-ULTMSMTREM4-EW
$475.00
Click image to zoom

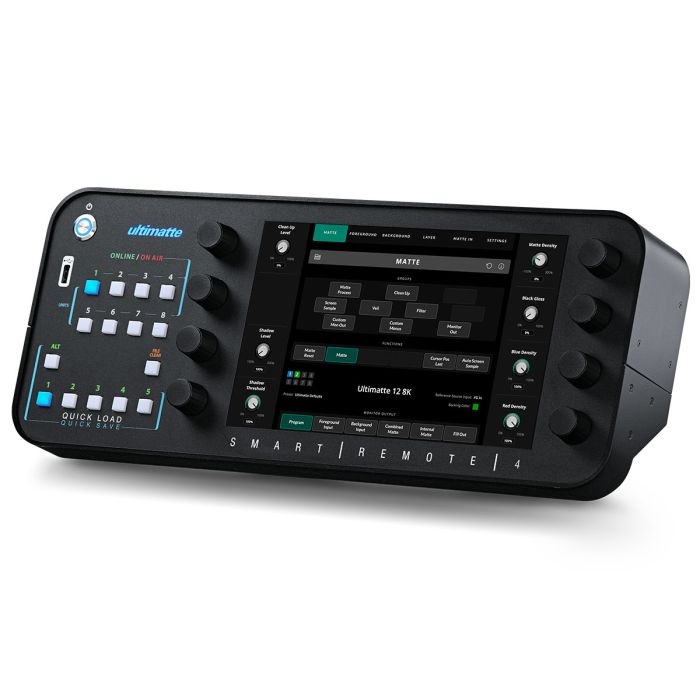

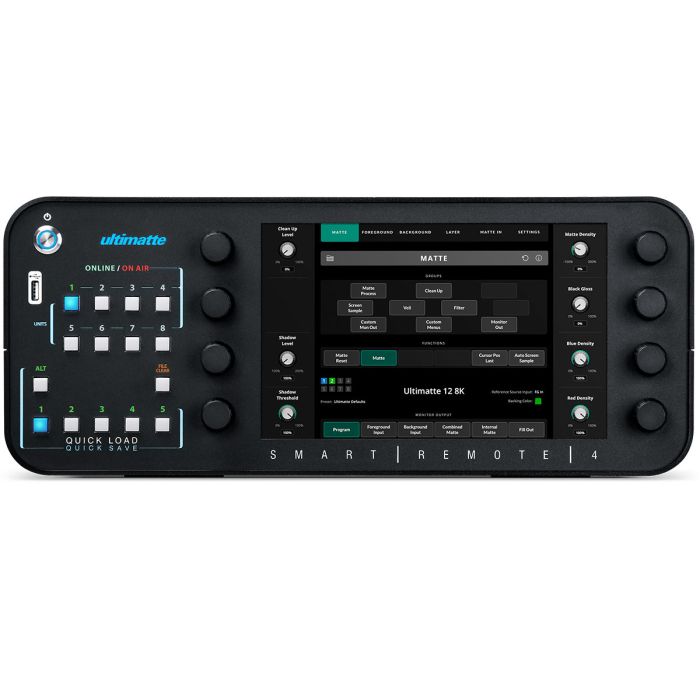

Blackmagic Design Ultimatte Smart Remote 4
Control up to 8 different Ultimatte 12 units at the same time! Smart Remote 4 features a 10.1 inch touchscreen for navigating menus and controls, along with hard buttons.
SKU: BMD-ULTMSMTREM4
$0.00
Now you can control up to 8 different Ultimatte 12 units at the same time via Ethernet. Smart Remote 4 features a 10.1 inch touchscreen for quickly navigating menus and adjusting settings, along with hard buttons with online and on air indicators for quickly switching between units. The file clear button automatically adjusts the most important settings to instantly give you incredible composites!
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Now you can control up to 8 different Ultimatte 12 units at the same time via Ethernet. Smart Remote 4 features a 10.1 inch touchscreen for quickly navigating menus and adjusting settings, along with hard buttons with online and on air indicators for quickly switching between units. The file clear button automatically adjusts the most important settings to instantly give you incredible composites!

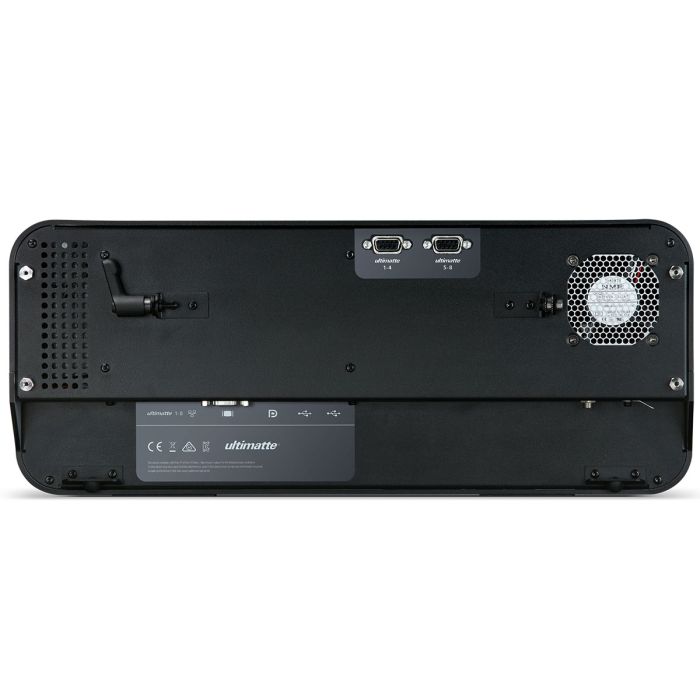

Connections
- Software Updates:2 x USB 2.0 and 1 x USB 3.0 for software updates.
- SVGA and Display Port Outputs: SVGA and Display Port outputs allows for graphics to be viewed on an external monitor.
- Ethernet: 2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
- RS-422: 2 x for controlling Ultimatte 11.
Product Specifics
- Rotary Knobs: 8 x rotary knobs for adjusting parameters.
- Unit ID Buttons: 8 x buttons. Illuminated blue for active.
- Unit ID LED Indicators: Illuminated green for online and red for on air.
- Alt + Quick Load/Save Buttons: Alt button plus 5 buttons for saving presets.
- Quick Load/Save Buttons: 5 x buttons for loading presets.
- File Clear Button: 1 x button for Auto Key.
- Alt + File Clear: Alt button plus file clear button for Auto Key using some user defined presets.
- Customizable Menus: 4 x menus for building your own menu with your most used controls.
- LED Control: User adjustable brightness control for LEDs.
- Fan Speed Control: User adjustable.
Software
- Software Updates: Software updates via USB to load Smart Remote utility.
Control
- Touchscreen: 10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.
Operating Systems
- Windows 10, 64-bit.
Power Requirements
- Power Supply: 100 - 240V AC.
- Power Usage: 24W
Physical Installation
- Adjustable desk mounting option.
Environmental Specifications
- Operating Temperature: 0° to 35°C (32° to 95°F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing.
Warranty
- 12 Month Limited Manufacturer's Warranty.
- Ultimatte Smart Remote 4
- Welcome wallet with QR code for software download
