Blackmagic Design URSA Cine Studio Viewfinder

Connections

• USB-C with Locking Connector: Video, power, metadata, camera control and software updates.
• Screen Dimensions: 7" 1920 x 1200 resolution.
• Screen Type: 7" high brightness TFT LCD
• Screen Brightness: 2000 nits
• Power: 5.5mm barrel power input for external +12V DC power.

Features

• Display Size: 7 inch.
• Display Resolution: 1920px x 1200px.
• Display Type: LCD capacitive touchscreen.
• Display Brightness: 2000 nits.
• Frame Rates: Up to 60fps.
• Handles: Built in grab handles for positioning the monitor independently from the camera.

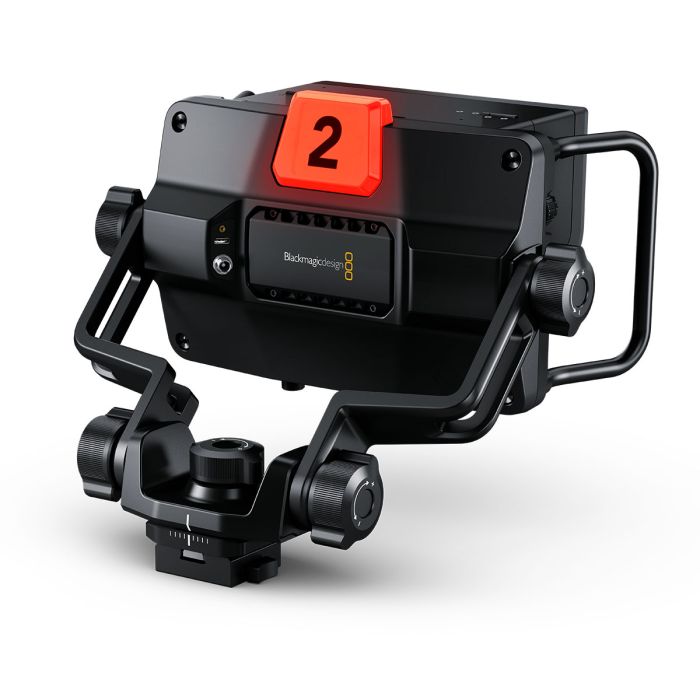

• Position Adjustment Options: Articulated yoke with variable tension pivots and grab handles for forward, backward, up, down, pan and tilt adjustments.
• Sunshade: Detachable and foldable sunshade
• Mounting Options: Quick release V-lock mounting bracket for attaching viewfinder to URSA Cine 12K body.

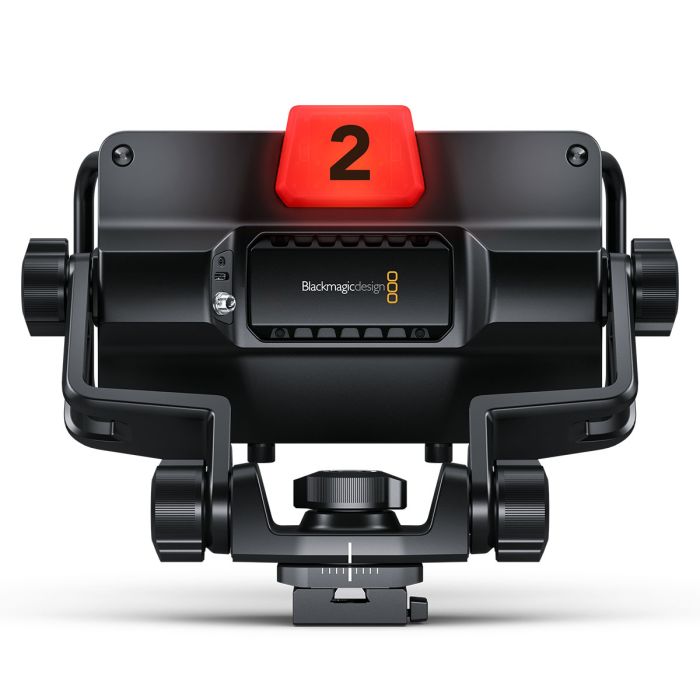

• Tally: Large talent facing LED tally light with customizable perspex camera numbers.
• Metadata Support: Viewfinder supports all camera metadata and full Blackmagic OS camera control.

Control

• Controls:

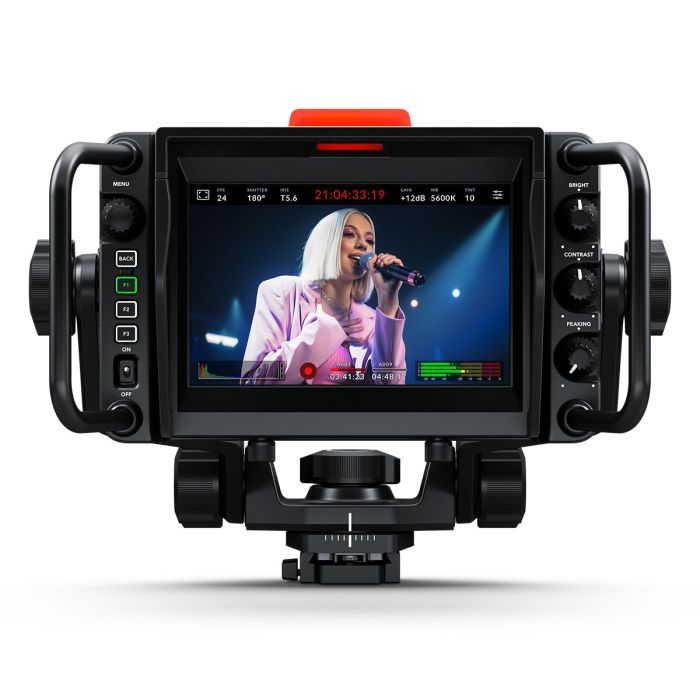

  • Touch screen with heads up display and full camera control,
  • Push button dial for settings and navigating menus,
  • Customizable short cut function buttons,
  • Dedicated brightness, contrast and peaking knobs.
• On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
• Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions plus BACK button.
• Function Button Toggle:
  • Clean Feed
  • Status Text
  • Display LUT
  • Frame Guides
  • Focus Assist
  • False Color
  • Zebra
  • Grid
  • Safe Area Guide
  • Off Speed Rec
  • Focus Zoom
  • Focus
  • Record
  • Auto White Balance
  • Color Bars
  • Playback
  • False Color + Zebra
  • OIS
  • Stream
  • Still

Mounting

• Mounting: Includes quick release VLock bracket, attaches to mounting surfaces using 2 x 1/4-20 screws.

Compatible Cameras

• Blackmagic URSA Cine 12K LF 100G
• Blackmagic URSA Cine 12K LF
• Blackmagic URSA Cine 17K 65
• Blackmagic URSA Cine Immersive 100G
• Blackmagic URSA Cine Immersive

Operating Systems

• Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
• Windows 11

Power Requirements

• Powered over USB-C. An additional +12V DC input allows for supplementary power when USB-C power is insufficient.
• Power Input: 5.5mm barrel connector with locking thread.
• Power Usage: TBA

Environmental Specifications

• Operating Temperature: 0°to 40°C (32° to 104°F)
• Storage Temperature: -20°to 60°C (-4° to 140°F)
• Relative Humidity: 0% to 90% non-condensing

Warranty

• Product Warranty: 1 Year Limited Manufacturer’s Warranty.

• Blackmagic URSA Cine Studio Viewfinder
• Monitor Mounting Plate
• Welcome wallet with QR code for software download
