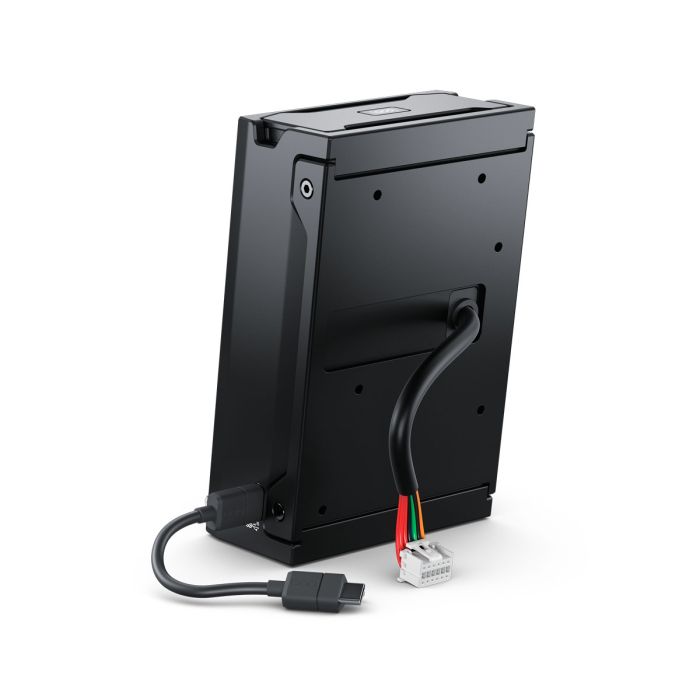

Blackmagic Design URSA Mini Recorder

• Add a high capacity SSD recorder to your camera for longer shoot times
• You can record to fast 2.5inch SSDs, including U.2 NVMe disks
• Designed specifically for URSA Mini Pro 12K, it attaches between the back of the camera and the battery, and is controlled via the USB-C
• Everything is controlled directly from the camera, so you don’t have to operate the recorder separately
• The SSDs can even be mounted on your computer using a Blackmagic MultiDock so you can edit and colour correct right from the cards

Connections

• Computer Interface : 1 x USB Type-C 3.1 Gen 2 with locking screw for bidirectional data link with URSA Mini Pro 12K and software updates.

Media

• Media: 1 x 2.5 inch SSD for 4K, 8K and 12K recording.

Supported Codecs

• Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Bitrate 18:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5.

Operating Systems

• Mac 10.14 Mojave, Mac 10.15 Catalina or later.
• Windows 10.

Power Requirements

• Power Connection: 12-pin Molex connector with passthrough to battery plate.

EMC Certifications

• FCC, CE and KCC.

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative humidity: 0% to 90% non-condensing

Warranty

• 12 Month Limited Manufacturer's Warranty.

• Blackmagic URSA Mini Recorder
• URSA Mini SSD Recorder Mount Plate with mounting screws
• USB Type-C SuperSpeed+ Cable with locking screw connectors
