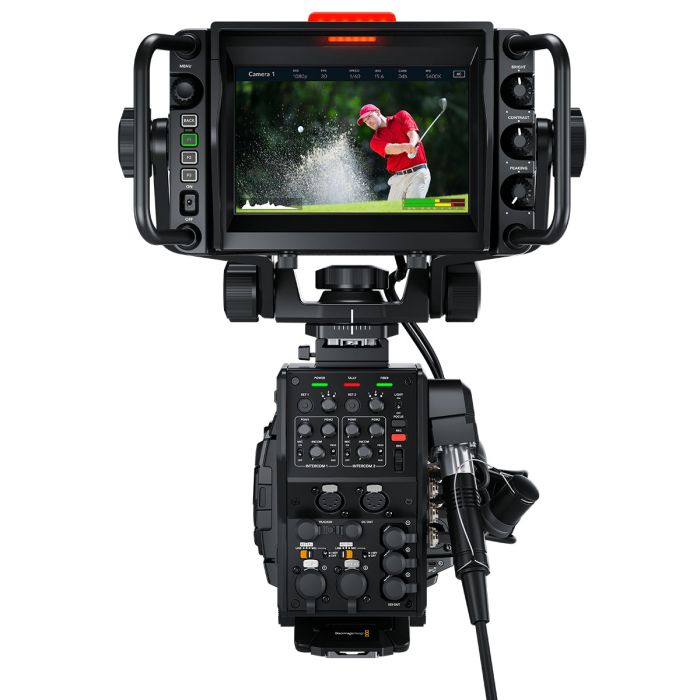

Blackmagic Design URSA Studio Viewfinder G2

• Professional 7" Studio Viewfinder for URSA Broadcast / URSA Mini

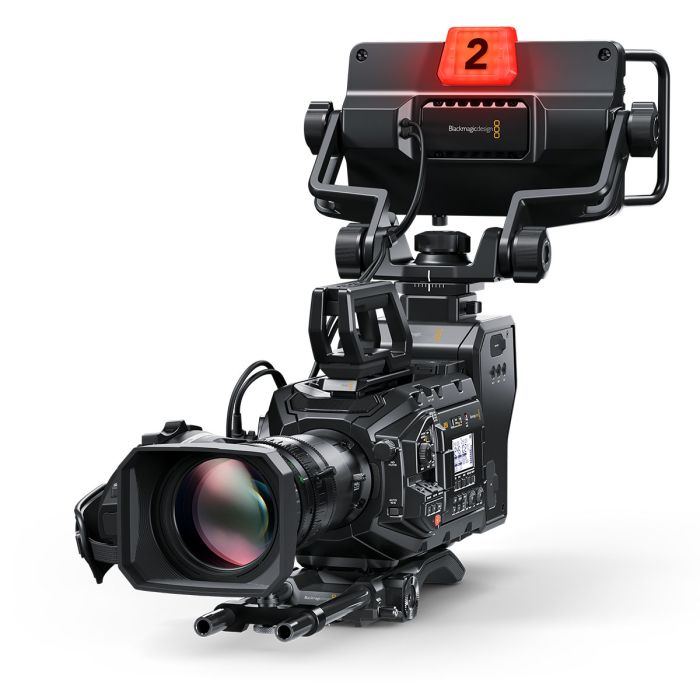

• Turn URSA Broadcast into the ultimate live camera with a professional 7 inch studio viewfinder
• Everything you need to comfortably operate your URSA Broadcast G2 / URSA Mini in live production
• Detachable sunshade
• Large handles and an articulated pivot mount that let you position and move the viewfinder independent of the camera
• Large rotary control dials and customizable function buttons let you make on the fly adjustments without having to take your eyes off the action
• Included V-Lock plate

Connections

• SDI Video Input: 1 x HD/Ultra HD 3G-SDI via BNC.
• Power Input: 1 x 4 pin XLR 12V.
• Screen Dimensions: 7" 1920 x 1200 resolution.
• Screen Type: 7" high brightness TFT LCD
• Screen Brightness: 2000 nits
• Computer Interface: 1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.

SDI Video Standards

• HD Format Support: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
• Video Sampling: 4:2:2 YUV.
• Color Precision: 10-bit.
• Color Space: REC 601, REC 709.
• Multiple Rate support: SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD.

Monitor Features

• Controls: Dial, knobs and customizable function buttons for settings, short cut features and navigating menus.
• Handles: Built in grab handles for positioning the monitor independently from the camera.
• Position Adjustment Options: Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments.
• Mounting Options: Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle.

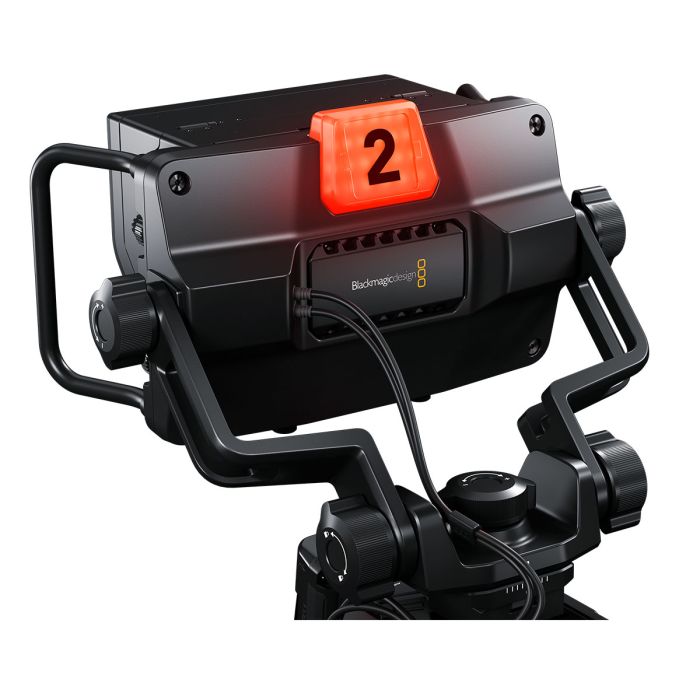

• Tally: Large LED tally light with customizable perspex camera numbers.
• Metadata Support: Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.
• Screen Interface: On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.

Operating Systems

• Mac 10.14 Mojave, Mac 10.15 Catalina or later.
• Windows 10.

Power Requirements

• 12V power input via 4 pin XLR connected via URSA Mini 12v power output.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

Warranty

• 12 Month Limited Manufacturer’s Warranty.

• Blackmagic URSA Studio Viewfinder G2
