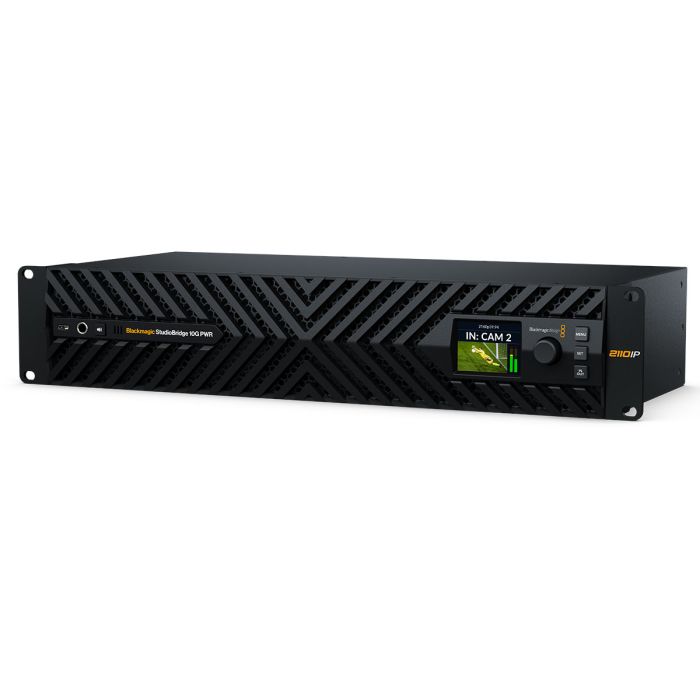

Blackmagic StudioBridge 10G PWR

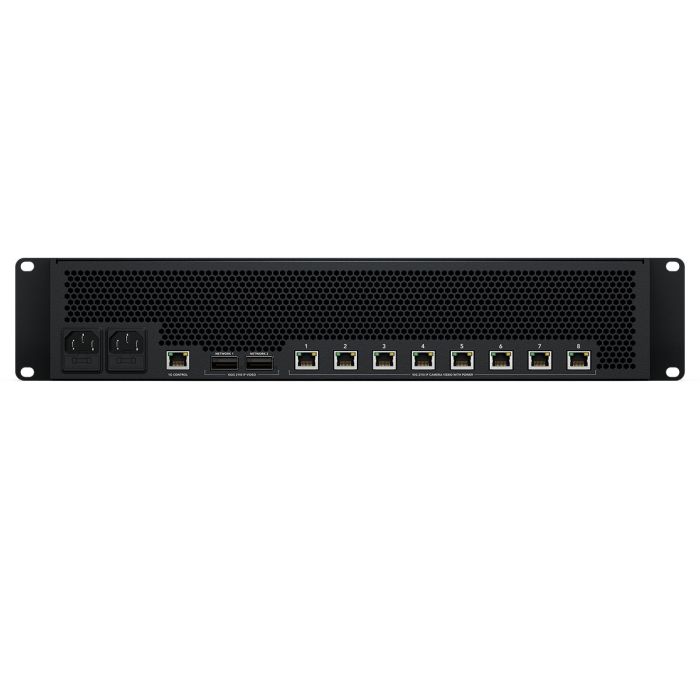

Connections

• 100G 2110 IP Networks:
  • 2 x 100G QSFP28 connections.
  • Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
• 10G 2110 IP Networks: 8 x 10G PoE++ RJ45 connections.
• Senders and Receivers per 100G Pair: 8 x Ultra HD or HD.
• 1G Control Network: 1 x RJ45 for NMOS control, configuration and software updates.
• SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.
• SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.
• Multi Rate Support: Auto detection of HD and Ultra HD.
• Computer Interface: 1 x USB-C for configuration and firmware updates.
• Power: 2 x IEC C14 power inputs.

Video Standards

• HD Video Standards:
  • 720p50, 720p59.94, 720p60
  • 1080i50, 1080i59.94, 1080i60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080PsF25, 1080PsF29.97, 1080PsF30
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SMPTE Compliance: SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7
• Color Precision: 10-bit 4:2:2 YUV
• Color Space: Rec. 709, Rec. 2020.
• SDI Auto Switching: Automatically detects HD and Ultra HD.

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v2
• SMPTE 2110-21 (Traffic Shaping):
  • Sender: Narrow
  • Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
• Precision Time Protocol:
  • IEEE 1588-2008 (PTP v2)
  • ST 2059-1
  • ST 2059-2
• NMOS IS-04 Discovery and Registration:
  • v1.3.2
  • Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Displays

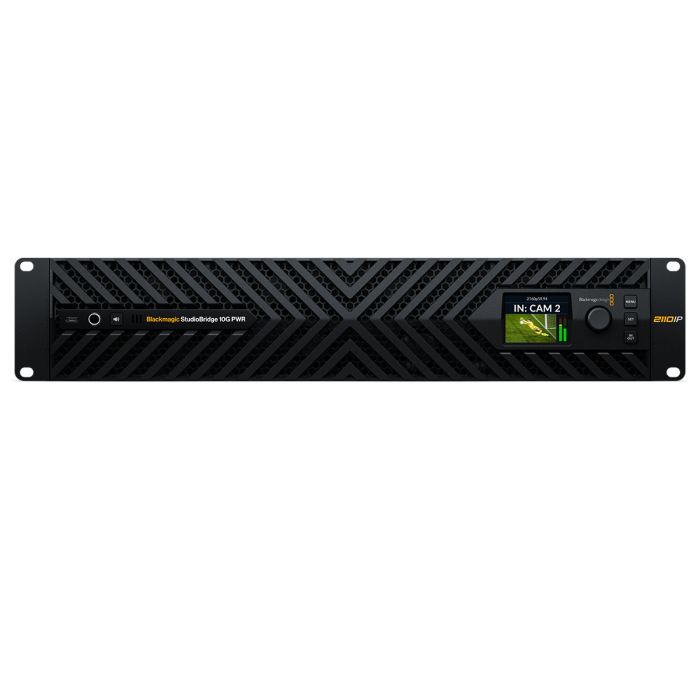

• Display: Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.

Control

• Built in Control Panel: 2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.
• External Control: RJ-45 Ethernet and USB-C.

Operating Systems

• Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
• Windows 11

Power Requirements

• Power Supply: 2 x 100 - 240V AC 50/60Hz internal power supplies.
• Power Inputs: 2 x IEC C14 sockets.
• Power Outputs: 8 x 90 W supply to compatible downstream PoE products.
• Power Usage: Usage TBC (including 8 x 90 W PoE supply to downstream devices)

Physical Installation

• 2 rack units.

Environmental Specifications

• Operating Temperature: 5° to 40° C (41° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

Warranty

• 1 Year Limited Manufacturer’s Warranty.

• Blackmagic StudioBridge 10G PWR
• Welcome wallet with QR code for software download
