Boxx Atom Wireless HD-SDI/HDMI Video Receiver
Zero Delay Wireless Video Receiver
MPN: AR-01S SKU: AR-01S
The Boxx Atom provides a compact zero delay HD microwave transmission solution for a host of Video Assist requirements in a small and lightweight form factor.

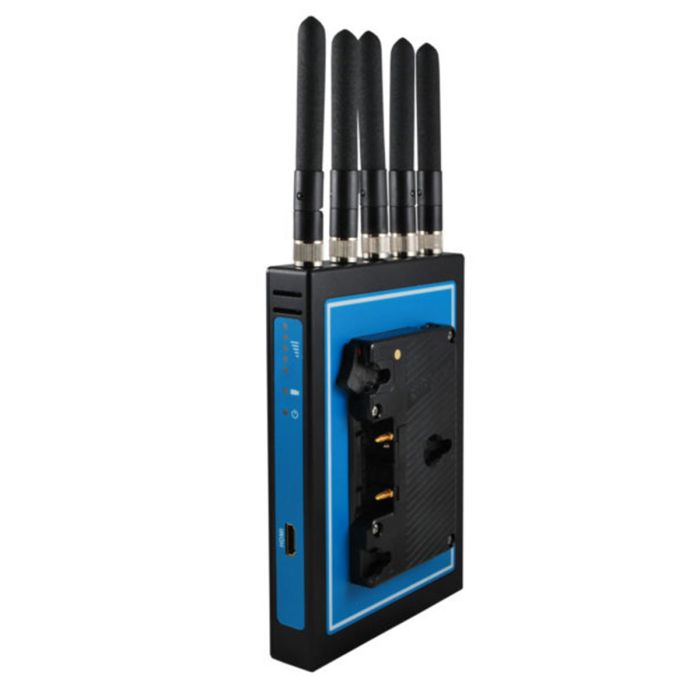

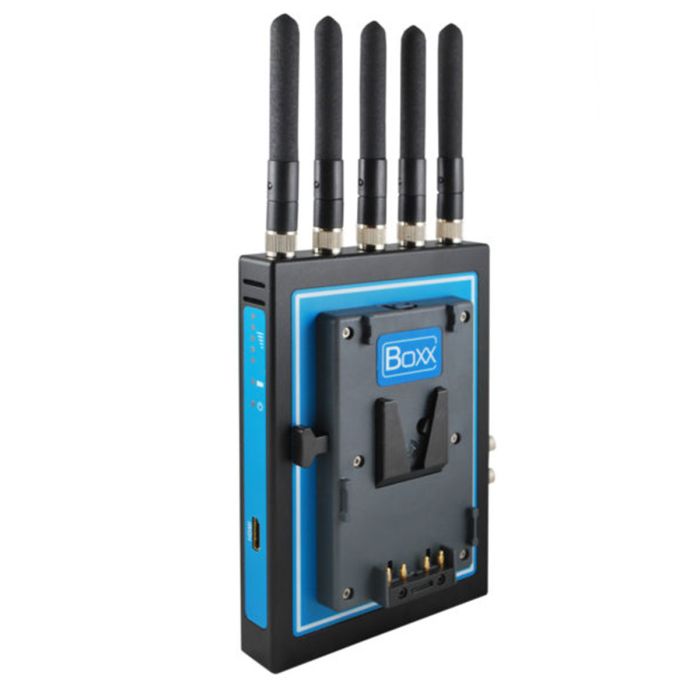

Atom Receivers are available with a selection of different battery plates - please choose one below.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The Boxx Atom provides a zero delay microwave transmission solution for a host of Video Assist requirements in a small lightweight form factor. Operating within the 5GHz licence exempt spectrum, the features have been designed for today’s fast moving productions. The Atom system has been optimised to work out of the box with minimal configuration. Performance can be monitored and adjusted in real-time at the touch of a button without manual pairing requirements or the need to connect to a PC to set attributes prior to operation.
Atom operates well in a multi-camera environment by making the most efficient use of the available spectrum.The system ensures reliable coverage thereby reducing the possibility of interference when using multiple transmitters.
The compact lightweight transmitter offers SDI, HD-SDI and HDMI inputs; perfect for a variety of uses including Steadicam, portable field monitoring, and UAV video links.
- Small and lightweight form factor
- Onboard manual channel select
- No pairing required
- Transmission to an unlimited number of receivers
- Minimal configuration
- No range limitations
- Perfect for multi-camera set-ups
- Designed by and for industry professionals
- Latency: < 1 millisecond
- Range: Uncapped 600m +
- Video Output: Dual HD-SDI & HDMI
- Format: All formats up to 1080 60p 3G
- Audio Output: Embedded
- Channel: Manual selection during operation on unit
- Transmission Method: Pixel Prioritisation Protocol
- RF Power Output: N/A
- Modulation: OFDM
- Bandwidth 40MHz
- Frequency: 5.1 - 5.9GHz
- Antenna Ports: 5 x RP-SMA
- Firmware Upgradable via 4-pin Hirose
- Size 188mm x 132mm x 26mm
- Weight 580g (w/out Battery Plates)
- Temperature Range: -5° to 50° C
- Power: 9-36V via 4-pin Hirose or Anton Bauer/V-lok Battery Plates
- Mounting: 1/4 & 3/8 inch spigot
- 1 x AR-01s: Atom Receiver
- 5 x ANT602: 5dBi 5GHz Rubber Duck Omni RP-SMA Antenna
- 1 x CBL101: BNC to BNC cable
- 1 x CBL111: 4pin XLR to 4pin Hirose cable
- 1 x PS1205: 90-240 Vac 50/60Hz power supply
