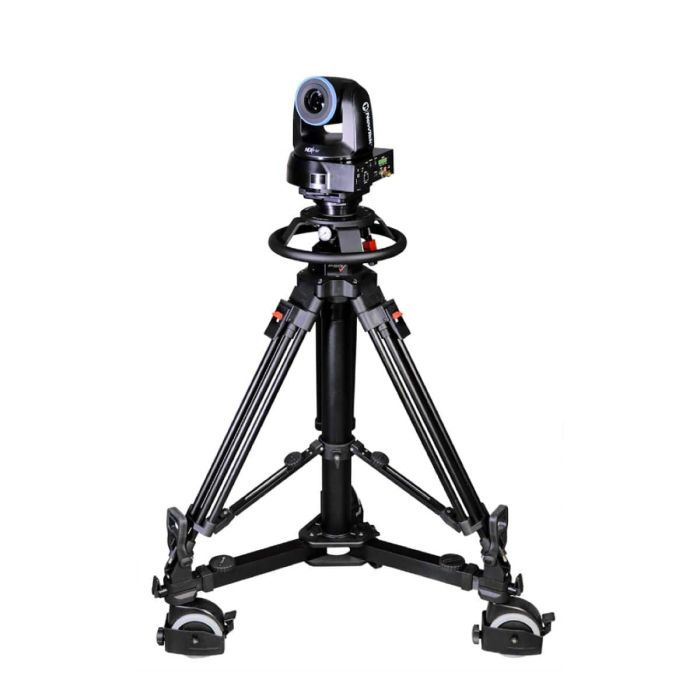

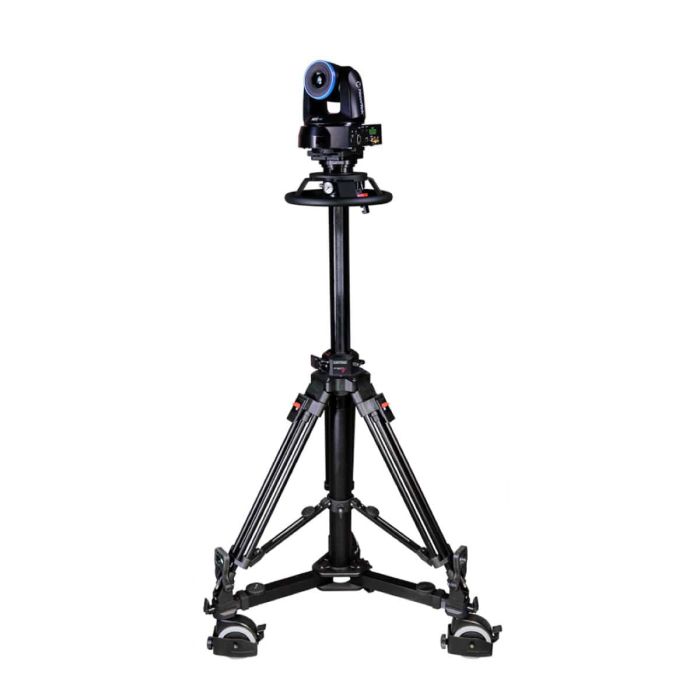

Cartoni P20 PTZ Pedestal
PTZ Camera Pedestal
SKU: CAR-P020/PTZ
Extremely compact and lightweight, this innovative pedestal is the ideal mate for mobile work and lightweight studio needs.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Call for Availability
Extremely compact and lightweight, this innovative pedestal is the ideal mate for mobile work and lightweight studio needs.
The same technical concept which has made the P50 so successful is performed in the CARTONI P20, an extremely rugged and precise dolly and the hexagonal shaped central pneumatic column for maximum stability, smoothness and jerk-free operation.

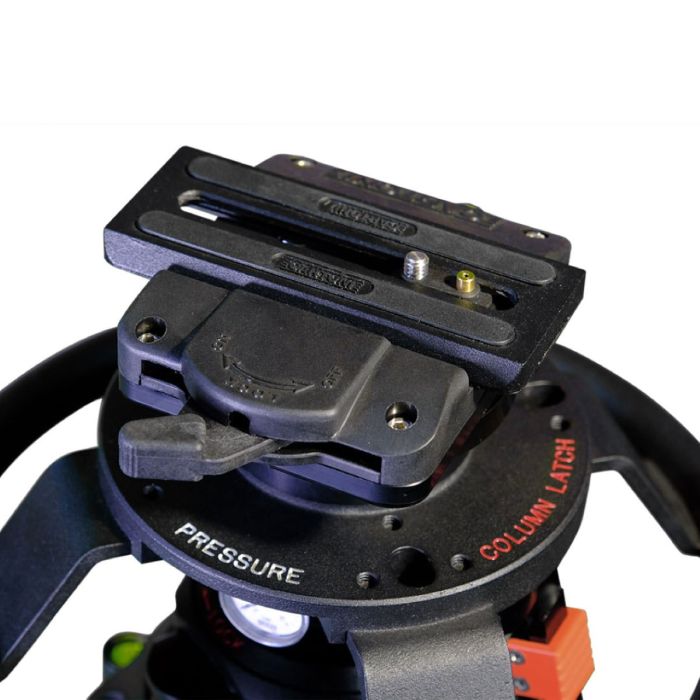

The column supports a maximum payload of 25Kg (55 lbs) it includes an air pressure gauge, locking brake and safety air pressure valve adjusted at maximum 187 psi.
The air pressure inside the column can be set in manually and adjusted to suit the exact weight of the camera configuration.
The foldable dolly features a six-position TRACK LOCK, foot operated brake on each of the 100mm wheel and cable guards.
The system includes the manual air pump.
With Pedestal Adapter (AH869) it is possible to mount all the fluid heads 100mm
- Weight: 14 kg / 31 lbs
- Maximum Payload Capacity: 25 kg / 55 lbs
- Maximum Pressure: 13 atm / 191 psi
- On-Shot Stroke: 40
- Capacity: 25 kg / 55 lbs
- Wheel Diameter: 10 cm / 4"
- Minimum Height: 74 cm / 29"
- Maximum Height: 161 cm / 63"
- Doorway Tracking Width Minimum: 67 cm / 26"
- Doorway Tracking Width Maximum: 97 cm / 38"
- Pedestal P20
- Hand pump – 10 bar
- European attach. adapter P70+
