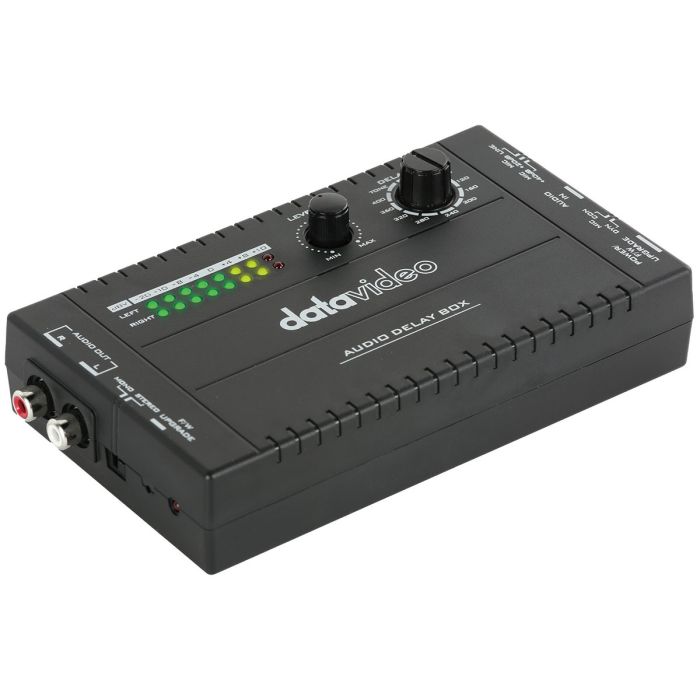

Datavideo AD-10 Audio Delay Box

Audio Delay Box

SKU: DATAAD10

$291.67

Easy-to-use audio delay box that allows you to sync audio and video.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Coming Soon

Delay Up To 400ms
Up to 400ms of sound delay range with easy to adjust knob design, synchronize video and sound with precision.

Power By External USB Power Supply
Convenient power supply available anywhere, make your work process smoother.

Full Range Of Input Options To Meet A Variety Of Needs
Switchable for Microphone input or Audio Line input, and switchable Condenser / Dynamic Microphone. Meet a wide range of microphone input requirements.

Compatible Outputs

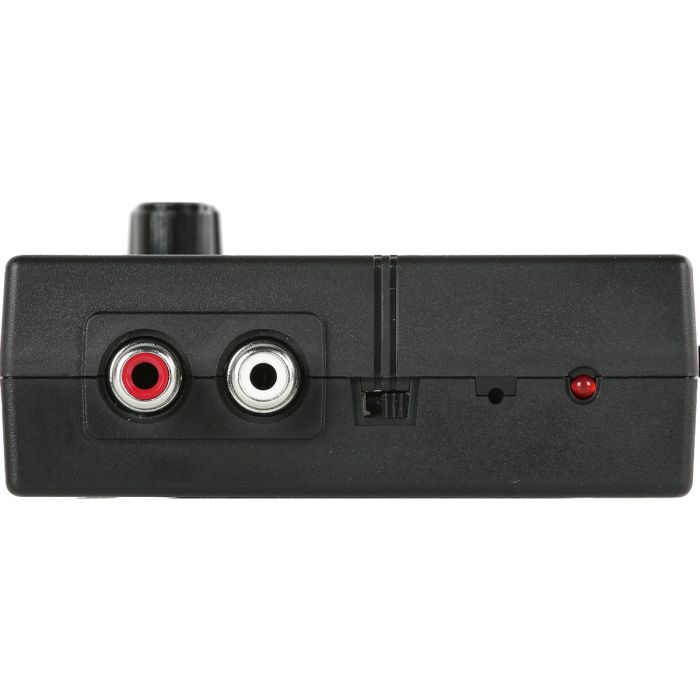

Switchable mono/stereo output. Stereo RCA output connectors for wide compatibility.

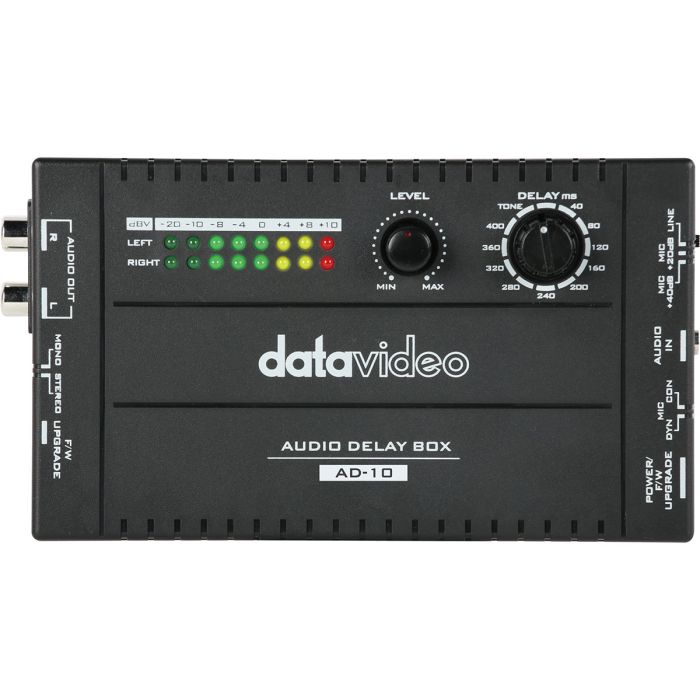

Easy-To-Use Design
Easy to control with clear LED indicators. Compact and lightweight, suitable for integration into any workflow.

Audio Delay Box
Delay up to 400ms
Power by external USB power supply
Easy to use

Audio Input:
- 1 x 3.5mm Jack Socket
- ( Tip: Mic/Line (Left)、Ring: Mic/Line (Right)、Sleeve: GND)
- 16K ohms, MAX Line input Level: +10dBV
Audio Output: 2 x unbalanced stereo audio, RCA sockets 600 ohms, MAX=+10dBV
Audio Indicator: 2 Rows (Left / Right)
Audio Delay: Up to 400ms
Audio Sample Rates: 48 KHz
Special Feature:
- Switchable for Microphone input or Audio Line input
- Switchable Condenser / Dynamic Microphone
- Stereo RCA output connectors for wide compatibility
Chassis: Compact and lightweight design

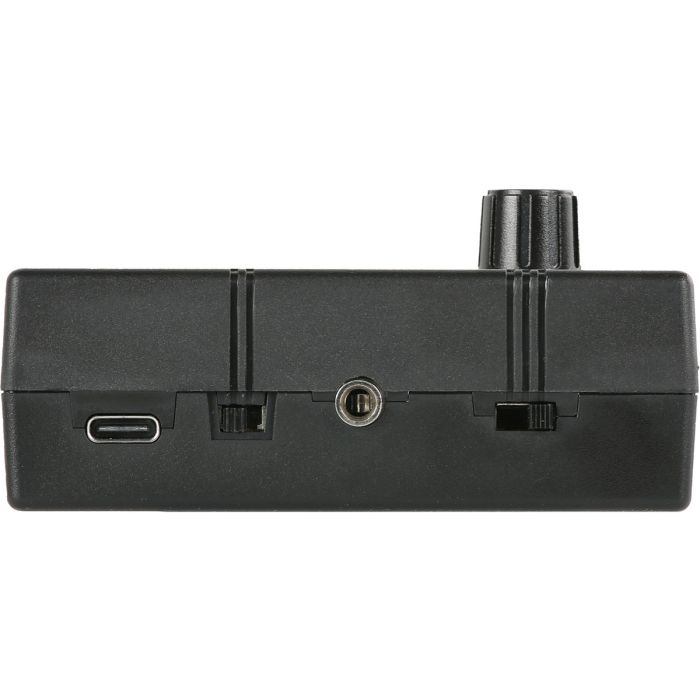

Power: USB Type C (5V/1A)
Dimension (LxWxH): 151 x 88.5 x 30.7 mm
Weight: 0.18 kg
Operating Temp. Range: 0~40 °C
