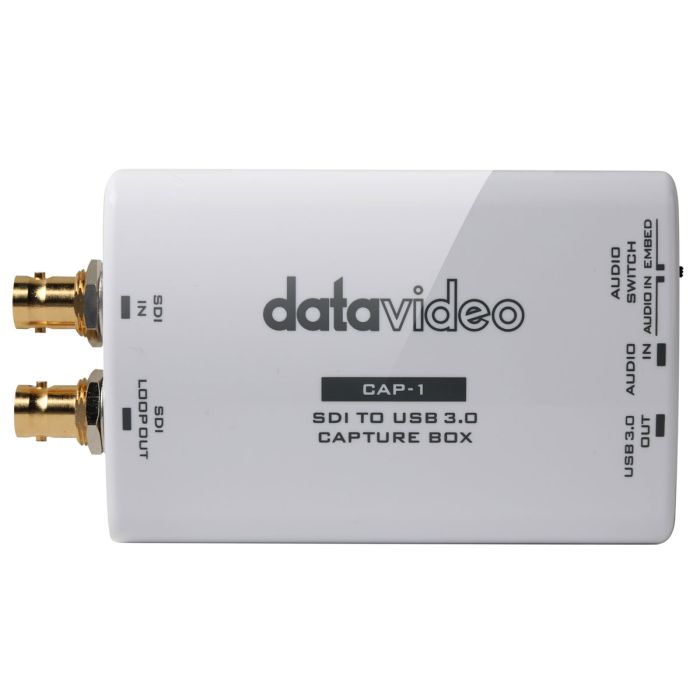

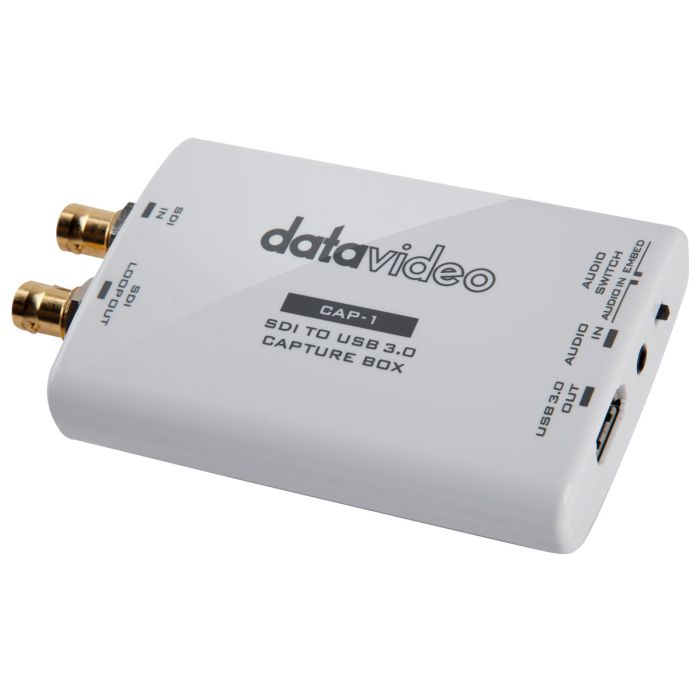

Datavideo CAP-1 SDI to USB 3.0 Capture Device

• SDI to USB 3.0 Capture Box
• Supports up to 1080p50/60
• Features stereo line in external audio, which can be switched as SDI embedded audio or external line in audio
• Plug and play in various operation system

Input

• 1x HD/3G-SDI

Output

• 1x USB 3.0 (Micro B)
• 1x SDI loopthrough

Input Video Bandwidth

• 150MHz (pixel clock rate)

Output Video Bandwidth

• Up to 350Mbps (USB)

Supported Input /Output Video Formats

• 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
• 1280 x 720p 60/59.94/50

Audio Input

• SDI Embedded Audio & 3.5 mm stereo in

Audio Format

• 2-Channel, 16-bit PCM

Recording Video Format

• YUY2 (USB3.0), MJPG (USB2.0/3.0)

Firmware Update

• Via USB Port

Software Compatibility

• Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
• Linux: VLC, OBS
• Mac OS X: OBS, Quicktime player, VLC, Facetime

Supported OS

• Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04

Power Supply

• Via USB

Power Consumption

• 3W

Operation Temperature

• 0~40°C

Storage Temperature

• -20~60°C

Humidity

• 20~90% RH

Minimum System Requirement

• Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
• Note: The driver is required for Windows 7 OS
• OS X (10.10 or above)
• Linux Ubuntu 14.04
• PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
• Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher

Dimension (LxDxH)

• 121 x 68 x 23 mm
