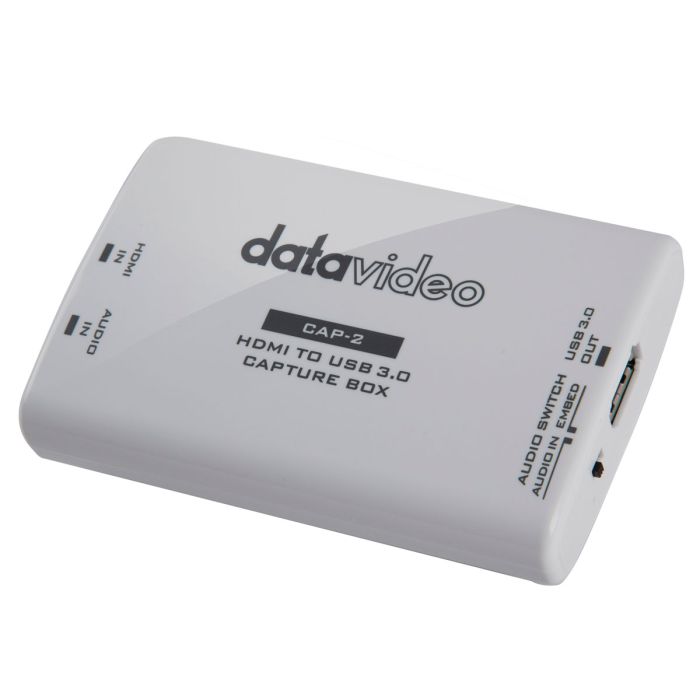

Datavideo CAP-2 HDMI to USB 3.0 Capture Device

• HDMI to USB 3.0 Capture Box
• Supports up to 1080p50/60
• Features stereo line in external audio, which can be switched as HDMI embedded audio or external line in audio
• Plug and play in various operation system

Input

• 1x HDMI

Output

• 1x USB 3.0 (Micro B)

Input Video Bandwidth

• 150MHz (pixel clock rate)

Output Video Bandwidth

• Up to 350Mbps (USB)

Supported Input & Output Video Formats

• 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
• 1680 x 1050p 60
• 1600 x 1200p 60
• 1440 x 900p 75/60
• 1400 x 1050p 60
• 1366 x 768p 60
• 1360 x 768p 60
• 1280 x 1024p 75/60
• 1280 x 720p 60/59.94/50
• 1024 x 768p 75/60
• 800 x 600p 75/60
• 720 x 576p 50
• 720 x 480p 60
• 640 x 480p 75/60

Supported Output Video Formats

• 1920 x 1080p 60/50/30/25/24
• 1680 x 1068p 60
• 1440 x 1080p 60
• 1440 x 896p 60
• 1360 x 768p 60
• 1280 x 768p 60
• 1280 x 720p 60/50
• 1024 x 768p 60
• 960 x 536p 60
• 848 x 480p 60
• 768 x 576p 60
• 720 x 480p 60/50
• 640 x 480p 60
• 640 x 360p 60

Audio Input

• HDMI Embedded Audio & 3.5 mm stereo in

Audio Support

• 2-Channel, 44.1 and 48KHz sample rate, up to 24-bit PCM

Capture Video Format

• YUY2 (USB3.0), MJPG (USB2.0/3.0)

Firmware Update

• Via USB

Firmware update

• USB Port

Power Consumption

• 2W

Operation Temperature

• 0~40°C

Storage Temperature

• -20~60°C

Humidity

• 20~90% RH

Minimum System Requirement

• Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
• Note: The driver is required for Windows 7 OS
• OS X (10.10 or above)
• Linux Ubuntu 14.04
• PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
• Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher"

Dimension (LxDxH)

• 105 x 68 x 23 mm

Weight

• 70g
