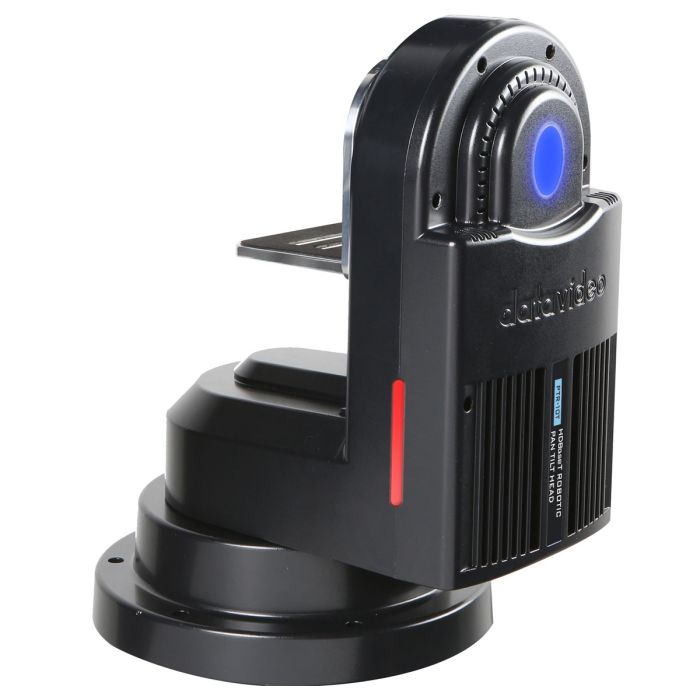

Datavideo PTR-10T Robotic Pan/Tilt Head with HDBaseT
HDBaseT Robotic Pan Tilt Head
MPN: DATA-PTR10T SKU: DATA-PTR10T
The PTR-10T is a robotic pan-tilt head with HDBaseT designed to turn any block camera into a PTZ camera. With a weight of 3.8kg, it can be placed on a tripod or mounted on the wall/ceiling.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The PTR-10T is a robotic pan-tilt head with HDBaseT designed to turn any block camera into a PTZ camera.
Using the idea of Datavideo PTC series of cameras, PTR-10T can provide accurate Pan Tilt position information for users to track the movement. While combining the tracking information with TVS-2000A, it could bring up a lot of possibilities to use other cameras to do tracking in the virtual studio.
With a weight of 3.8kg, it can be placed on a tripod or mounted on the wall/ceiling.
PTR-10T can be controlled by HDBaseT, IR controllers, VISCA protocol controller, RMC-180 camera controller, RMC-280 TVS controller and also compatible with serial, Ethernet, DVIP.
Turn Camcorder Into PTZ
Control of Pan, Tilt, Zoom. Supports Zoom control of Datavideo block cameras and various brand lens.
Multiple Signal Interface

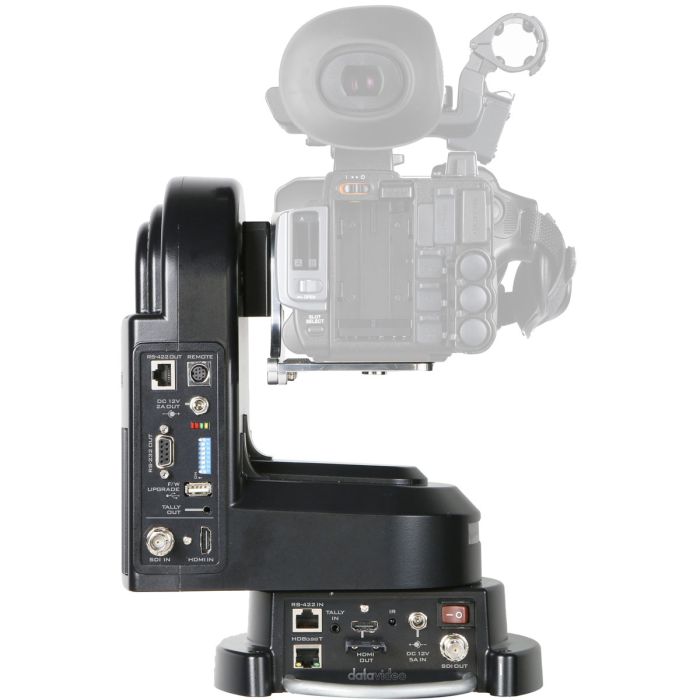

PTR-10T supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.
Diversified Controller Options
RMC-180, HS-1600T, HS-1500T with Control of Pan, Tilt, Zoom and much more
Strong and Sturdy Aluminum Alloy Material Design
Tally light built-in, great design for Live event. PTR-10T is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.
Supports Zoom Control
Tally light built-in, great design for Live event
- HDBaseT Robotic Pan Tilt Head
- Control of Pan, Tilt, Zoom. Supports Zoom control of Datavideo block cameras and various brand lens
- Multiple signal interface - SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC
- Supports cameras up to 4kg
- Built-in Tally Light
- Strong and sturdy aluminum alloy material design
- Video Interface:
- HDMI x 1
- SDI x 1
- HDBaseT x 1 (HDBaseT)
- Video Output:
- 2160p 29.97/25
- 1080p 59.94/50
- 1080i 59.94/50
- 720p 59.94/50
- Control Unit:
- RMC-180
- RMC-300C
- VISCA Protocol Controller
- IP Control
- IR remote
- Panning / Tilting Range:
- Pan: 340°
- Tilt: ±45°
- Panning / Tilting Speed:
- Pan: 0.2~15° /Sec
- Tilt: 0.1~10° /Sec
- Preset: Pan/Tilt position 50
- Control Distance:
- 1,200M by RS422
- 100M by DVIP
- Control Protocal:
- Sony VISCA
- DVIP
- Control Input:
- RS-422
- HDBaseT
- Maximum Load: 4 KG Max
- Control Output:
- RS-232
- RS-422
- BX-Lens
- LanC
- Power Requirement:
- DC 12V~ 18V, 3A (Without Camera)
- DC 12V~ 18V, 5A (With Camera)
- Power Supply: DC 12V, 2A Max
- Operating Temp. Range: 0~40 C°
- Operating Humidity Range: 10~80%
- Storage Temp. Range: -10~60 C°
- Storage Humidity Range: 5~80%
- Weight: 3.4 kg
- Dimension (LxWxH): 230 x 190 x 300 mm
- PTR-10T
- 1x LANC Cable
- 1x HDMI Cable
- 1x BNC Cable
- 1x Power Supply with Cords
- Remote Controller
