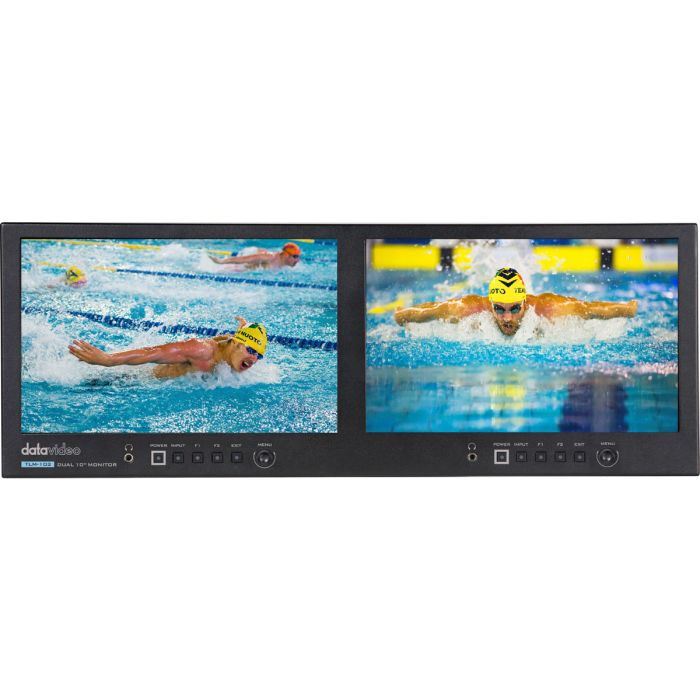

Datavideo TLM-102 Dual 10" Monitor

Dual 10" Monitor

MPN: DATA-TLM102 SKU: DATATLM102

$845.83

The Datavideo TLM-102 Dual 10” monitor is a 4RU Rack mount dual monitor which is designed for the broadcast quality monitoring application. Datavideo TLM-102’s 4RU rack design, SDI and HDMI inputs and outputs and different mounting methods make it the best solution for various applications such as live vans, on-site monitoring and video wall.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

Dual 10'' Full HD Desktop Monitor
Supports 3G/HD/SD 1280x800 panel resolution.

Supports Multiple Input and Output Configurations
1 x 3G/HD/SD-SDI, 1 x HDMI input and loop out

SDI, HDMI Cross Conversion
The TLM-102 can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.

Various Built-In Functions
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field

Dual 10” Monitor with 1280*800 IPS Panel Resolution.
Dual Monitor with 4RU Rack Mount.
Support 3G-SDI video input with loop-through output.
Support HDMI video input with loop-through output.
Support OSD menu for various functions including Column (YRGB peak), time code, waveform, vector scope, audio level meter, peaking, zoom, pix to pix, underscan, check field, etc.
Support SDI & HDMI Cross Conversion.
Individual adjustment of Brightness, Contrast, Color Saturation and LED Backlight Level for each monitor.
Colour temperature menu option has 4 modes ( 6500K, 7500K,9300K and user defined)
Support front panel headphone jack.
Support 15 pin Tally input interface.
Support User-definable function buttons F1 and F2

Screen: Dual 10.1" LCD
Chassis: 4RU Rack Mount
Resolution: 1280x800
Viewing Angle:
- (H) +85/-85°
- (V) +85/-85°
Luminance/Contrast:
- 300cd/m²
- 800:1
Video Inputs:
- 2x 3G/HD/SD-SDI
- 2x HDMI
Loop Through:
- 2x 3G/HD/SD-SDI
- 2x HDMI
Supported Input Resolutions:
- 1080p(23.98/24/25/29.97/30/50/59.94/60Hz),
- 1080i(50/59.94/60Hz), 720p(23.98/24/25/29.97/30/50/59.94/60Hz),
- 480i(NTSC), 576i(PAL)
Aspect Ratio: 16:9, 4:3
Tally LED:
- Live (Red)
- Cued (Green)
Audio In/Out:
- Embedded Audio on SDI and HDMI
- Headphone Jack
Special Features: time code, waveform, vector scope & audio level meter , peaking, zoom, pix to pix, underscan, SDI, HDMI cross conversion
Dimension (LxWxH): 481 x 177 x 38 mm
Weight: 3.5 kg
Operating Temp. Range: 0~40 °C
Power: DC 12V, 28W
