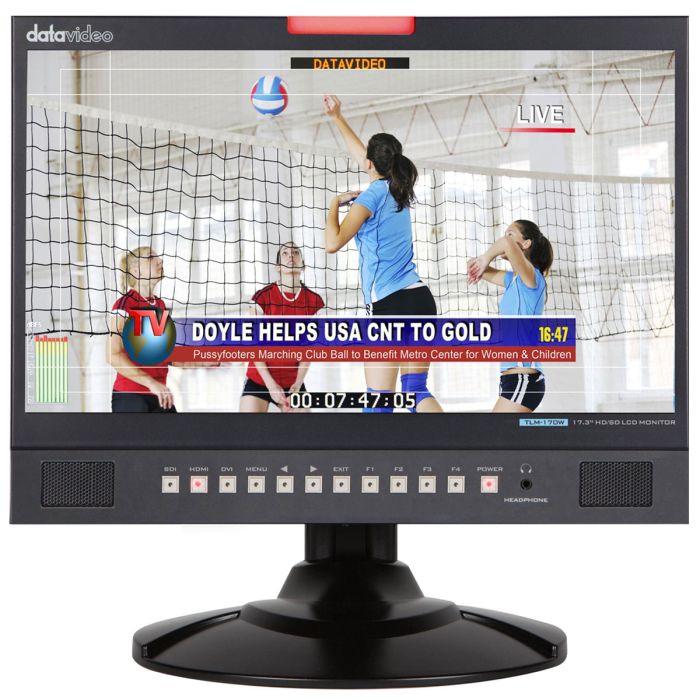

Datavideo TLM-170V 17" Production Monitor with Scope

17" ScopeView Production Monitor

MPN: DATA-TLM170V SKU: DATATLM170V

$1,250.00

The TLM-170V is a 17.3” monitor featuring 1920x1080 full HD resolutions and 170° wide viewing angles. The TLM-170V integrates various built-in functions such as waveform, vector scope and SDI/HDMI cross converter for easy viewing. It's convenient for portable outdoor use or applied in news vans, satellite trucks, and central equipment room.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

17.3'' Full HD Pull-Out Monitor
Supports 3G/HD/SD 1920x1080 panel resolution.

Supports Multiple Input and Output Configurations
1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through

SDI, HDMI Cross Conversion
The TLM-170V can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.

Various Built-In Functions
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field

Tally Light
Tally light included. Best use for live production.

17" ScopeView Production Monitor
1920x1080 Full HD IPS Panel resolution
3G-SDI video input with loop-through output
HDMI input with loop-through output
Integrated Tally input for Live Broadcast
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field, etc
SDI, HDMI cross conversion
Individual adjustments of Brightness, Contrast and Colour Saturation
Colour temperature for user to select
Front panel Headphone Jacks and speakers
F1, F2, F3, F4 user-definable buttons to custom auxiliary functions as the shortcut

Screen: 17.3" LED Backlit
Chassis: Tabletop
Resolution: 1920x1080
Viewing Angle:
- (H) +89/-89°
- (V) +89/-89°
Luminance/Contrast:
- 300cd/m²
- 700:1
Video Inputs:
- 1x 3G/HD/SD-SDI
- 2x HDMI
Loop Through:
- 1x 3G/HD/SD-SDI
- 1x HDMI
Supported Input Resolutions:
- 1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
- 1080i(50/59.94/60Hz),
- 720p(50/59.94/60Hz),
- 576i(PAL), 480i(NTSC)
Aspect Ratio: 16:9, 4:3
Tally LED:
- Live (Red)
- Cued (Green)
Audio In/Out:
- 2x Speaker
- 1x Headphone Jack
Special Features:
- SDI and HDMI cross conversion
- Support column (YRGB peak)
- time code
- waveform
- vector scope & audio level meter
- peaking focus assist
- zoom
- pix to pix
- underscan
- check field
Dimension (LxWxH): 403 x 305 x 41 mm
Weight: 4.5 kg
Operating Temp. Range: 0~40 °C
Power: DC 10-18V, 32W
