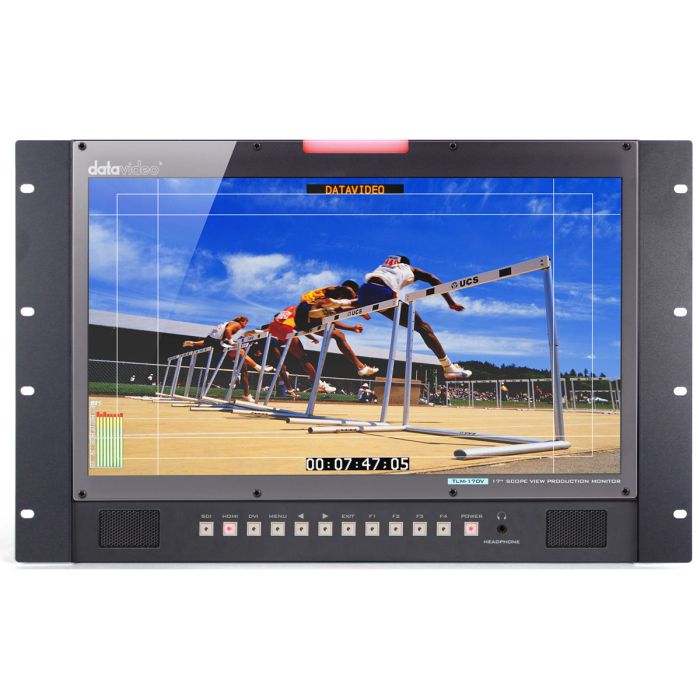

Datavideo TLM-170VR 17" Rackmount Production Monitor with Scope
7U Rack Mount 17" ScopeView Production Monitor
MPN: DATA-TLM170VR SKU: DATATLM170VR
The Datavideo TLM-170VR is a 17-inch rackmount production monitor featuring 1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through and supports SDI, HDMI cross conversion. TLM-170VR has various built-in functions: Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field, tally light.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Datavideo TLM-170VR is a 17-inch rackmount production monitor featuring 1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through and supports SDI, HDMI cross conversion. TLM-170VR has various built-in functions: Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field, tally light.
17.3'' Full HD Rack Mount Monitor
Supports 3G/HD/SD 1920x1080 panel resolution.
Supports Multiple Input and Output Configurations
1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through
SDI, HDMI Cross Conversion
The TLM-170V can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.
Various Built-In Functions
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field
Tally Light
Tally light included. Best use for live production.
- 7U Rack Mount 17" ScopeView Production Monitor
- Supports 3G/HD/SD 1920x1080 panel resolution
- 1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through
- SDI, HDMI cross conversion
- Various built-in functions: Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field, tally light
- Screen: 17.3" LED Backlit
- Chassis: 7RU Rack Mount
- Resolution: 1920x1080
- Viewing Angle:
- (H) +89/-89°
- (V) +89/-89°
- Luminance/Contrast:
- 300cd/m²
- 700:1
- Video Inputs:
- 1x 3G/HD/SD-SDI
- 2x HDMI
- Loop Through:
- 1x 3G/HD/SD-SDI
- 1x HDMI
- Supported Input Resolutions:
- 1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
- 1080i(50/59.94/60Hz),
- 720p(50/59.94/60Hz),
- 576i(PAL), 480i(NTSC)
- Aspect Ratio: 16:9, 4:3
- Tally LED:
- Live (Red)
- Cued (Green)
- Audio In/Out:
- 2x Speaker
- 1x Headphone Jack
- Special Features:
- SDI and HDMI cross conversion
- Support column (YRGB peak)
- time code
- waveform
- vector scope & audio level meter
- peaking focus assist
- zoom
- pix to pix
- underscan
- check field
- Dimension (LxWxH): 403 x 305 x 41 mm
- Weight: 4.5 kg
- Operating Temp. Range: 0~40 °C
- Power: DC 10-18V, 32W
