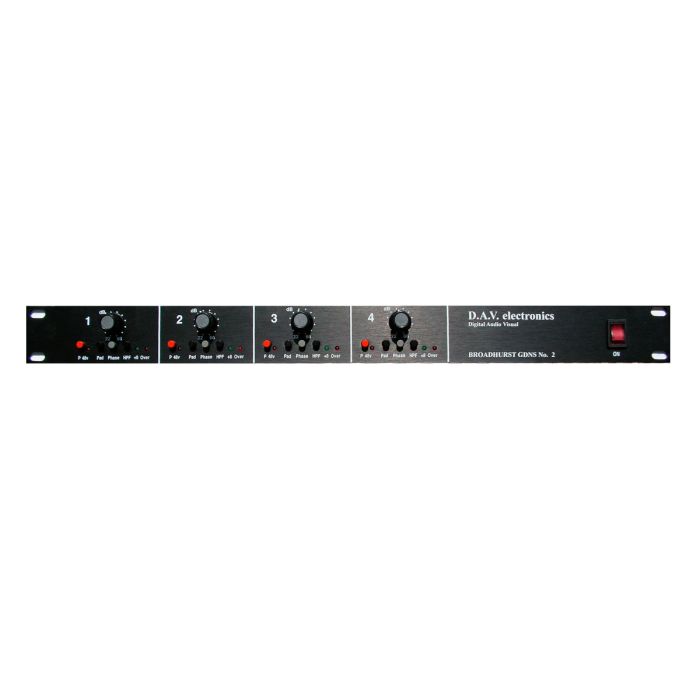

DAV Electronics BG2 MKII 4 Channel Mic Preamp
4 Channel Microphone Pre-Amplifier
MPN: DAV-BG2 SKU: DAV-BG2
1U rackmount high quality 4 channel microphone amplifier.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The DAV Electronics BG2 MKII is a high quality 4 channel microphone amplifier featuring a 48v phantom power switcher, 26dB pads, switched gain controls for high accuracy level setting, level indication, phase reversal, switchable high pass filters and balanced XLR inputs and outputs on the rear of the unit. The unit also has low noise and low distortion levels.
The features of this microphone amplifier consist of low noise and low distortion. It offers switched gain controls for high accuracy level setting, level indication, switchable high pass filters, input pads.
- Frequency response: 10Hz - 150KHz -0.25dB
- High pass filter: 68Hz @ 12dB per octave
- Distortion: Less than 0.01%
- Typ, 0.001% 1KHz @ +20dBu o/p
- Phase reversal: All channels (Switchable)
- Noise: 25 microvolts
- [-110dB ref+20 dBu. Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain].
- Level Indication:
- Red LED +18dBu
- Green LED +8dBu
- Can be pre-set for your operating level
- Clipping level: +29 dBu
- 48v phantom: All channels (Switchable)

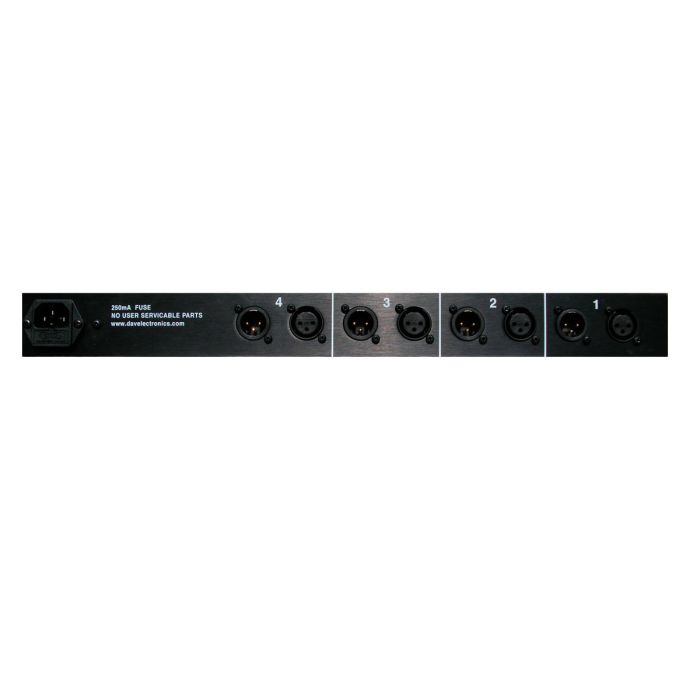

- Connectors: IEC mains, XLR's on rear
- 26dB pads: All channels (Switchable)
- Dimensions: 19" 1U rack mount. Depth = 150mm
- Gain range: 22dB - 66dB in 4dB steps.
- [pad in -4dB - +40dB]
