DAV Electronics BG5 MKII Channel Strip
Channel Strip
MPN: DAV-BG5 SKU: DAV-BG5
1U rackmount high quality channel strip with D.I.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days

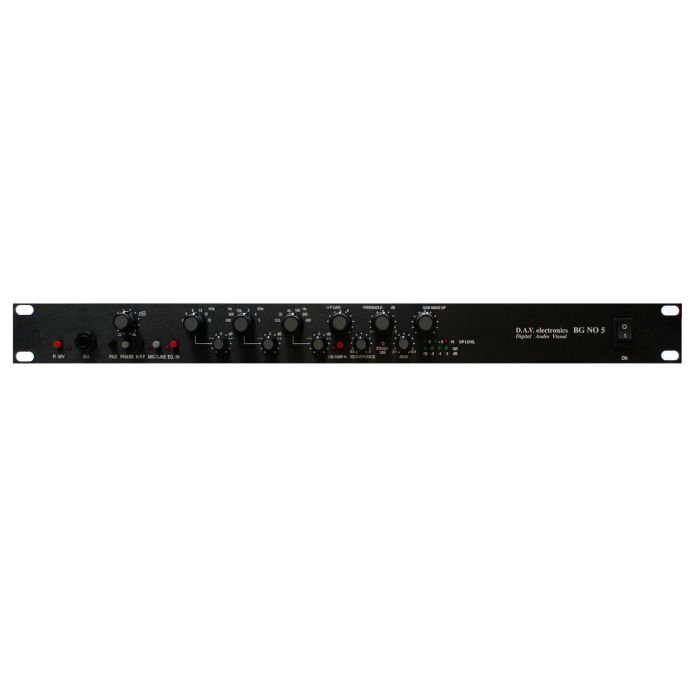

The DAV Electronics BG5 MKII is a high quality channel strip featuring a mic pre/D.I, 3-band EQ and optical/limiter processor and is based on different aspects from 3 other units in the BG range:
- The Mic Amp and DI are taken from the BG1U.
- The Equaliser from BG503
- The Optical Limiter/Compressor from te BG504
The BG5 fetaues low noise and distortion, 48v phantom power, phase reversal, LED G.R. meter, level indication, jack and XLR inputs and XLR outputs. Recovery time ranges from 0.5 seconds up to 3 seconds and a stereo link connection allows you to link two units together for proper stereo operation. All controls are either switched or detented for settings recall.Â
The BG No 5 MK II consists of 3 elements from the BG range:
1. BG No 1U Mic Amp + DI
2. BG 503 Equaliser
3. BG 504 Optical Limiter / Compressor (Features: Low noise / distortion, stereo link, LED G.R. meter)
Â
All controls are either switched or are detented for settings recall.
Mic Amp + D.I.
- Frequency response: 10Hz >> 150KHz ± 0.25dB                Â
- Mic gain range: 22dB >> 66dB in 4dB steps. [pad in -4dB - 40dB]
- Distortion: Less than 0.01%. Typ, 0.001% 1KHz @ +20dBu o/p                 Â
- High pass filter: 68Hz @ 12dB per octave
- Noise: 25 microvolts [-110dB ref +20 dBu. Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain]. Â Â Â Â Â Â Â Â Â Â Â Â Â
- Phase reversal: Switched
- 48v phantom: Switched                Â
- 26dB pads: Switched
- D.I. input: High impedance [1.8 Meg Ohms] Â Â Â Â Â Â Â Â Â
- D.I. gain range: -4 > 40dB in 4dB steps
       Â
Equaliser                                   Â
- Gain: Unity Gain               Â
- Low Frequency Step: 12.5Hz, 25Hz, 50Hz, 100Hz, 200Hz and 400Hz +/-8dB
- High Frequency Step: 2KHz, 4KHz, 8KHz, 12KHz, 16KHz and 32KHz +/-8dB Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
- Mid Frequency Resonant: Q = 1.5 240Hz, 500Hz, 750Hz, 3KHz, 4KHz and 5KHz +/-12dB
                                                                    Â
Optical Limiter / Compressor                        Â
- Ratio: 2:1 >>>10:1 Â Â Â Â Â Â Â Â Â Â Â Â Â
- Input Gain: +8dB (adjustable)
- Threshold: +18 >>> -2dB Â Â Â Â Â Â Â Â Â Â Â Â
- Gain Make Up: +14dB (adjustable)
- Recovery Time: 0.5 >>> 3 seconds                          Â
                                                                    Â
Overall Specifications                         Â
- Level Indication: Red LED +18dB
Green LED +8dB
Green LED 0dB Â Â Â Â Â Â Â Â Â Â
- Gain Reduction: Green LED -2, -4, -8 and -12dB
- Clipping Level: +29dBu         Â

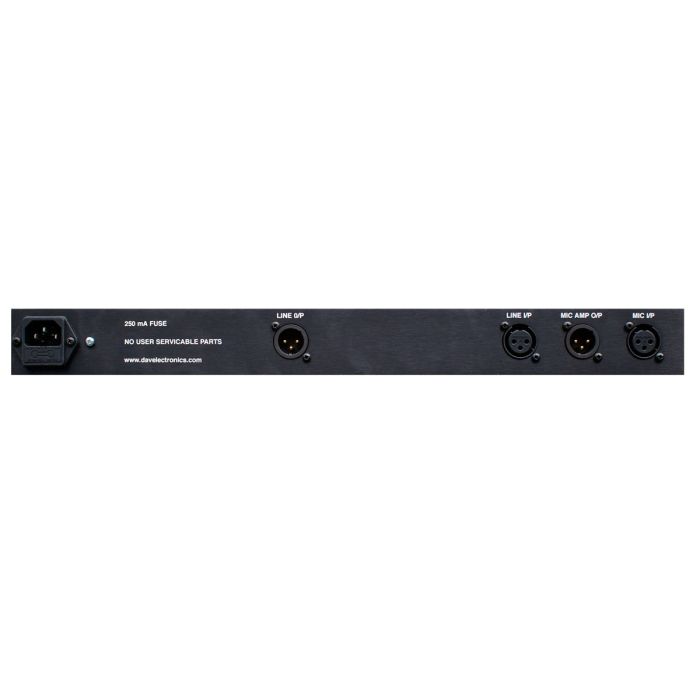

- Connectors: Input - XLR, Jack (DI Input)
 Output - XLR
 IEC mains / Power
- Dimensions: 19" 1U rack mount depth 150mm [6 inches]
