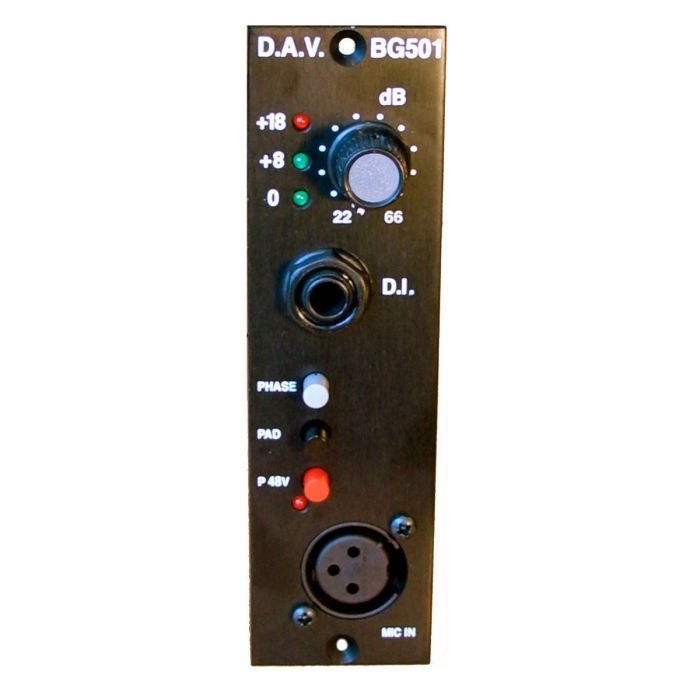

DAV Electronics BG501 500 Series Mic Preamp

500 Series Microphone Amplifier

MPN: DAV-BG501 SKU: DAV-BG501

$240.83

500 series microphone amplifier with DI Input.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

The DAV Electronics BG501 is part of the 500 series (lunchbox) module, featuring a microphone amplifier with DI Input, low noice and distortion, switched gain controls, LED level indication, 26dB pads, phase reversal, 48v phantom supply and XLR and jack inputs.Â

The features of this microphone amplifier consist of low noise and low distortion. It offers switched gain controls for high accuracy level setting (4 dB steps), D.I. Input (high impedance), level indication, 26dB pads (switchable), phase reversal and 48v phantom supply (switchable).

Frequency response: 10Hz - 150KHz Â± 0.25dB Â Â Â Â Â Â Â Â Â
Mic gain range: 22dB - 66dB in 4dB steps. [pad in -4dB - 40dB]
Distortion: Less than 0.01%. Typ, 0.001% 1KHz @ +20dBu o/p Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Phase reversal: Switchable
Noise: 25 microvolts [-110dB ref +20 dBu. Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain].Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Level indication:

Red LED +18dB
Green LED +8dB
Green LED 0dB

Â 48v phantom: SwitchableÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Clipping level: +29 dBu
26dB pads: SwitchableÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Connectors:Â
