DAV Electronics BG9 Mic Preamp
Microphone Pre-Amplifier with D.I.
MPN: DAV-BG9 SKU: DAV-BG9
This Microphone Amplifier is ideal for location or studio recording. Because of it's compact size it is easily transportable for location recording and is very discrete in the studio or control room.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days

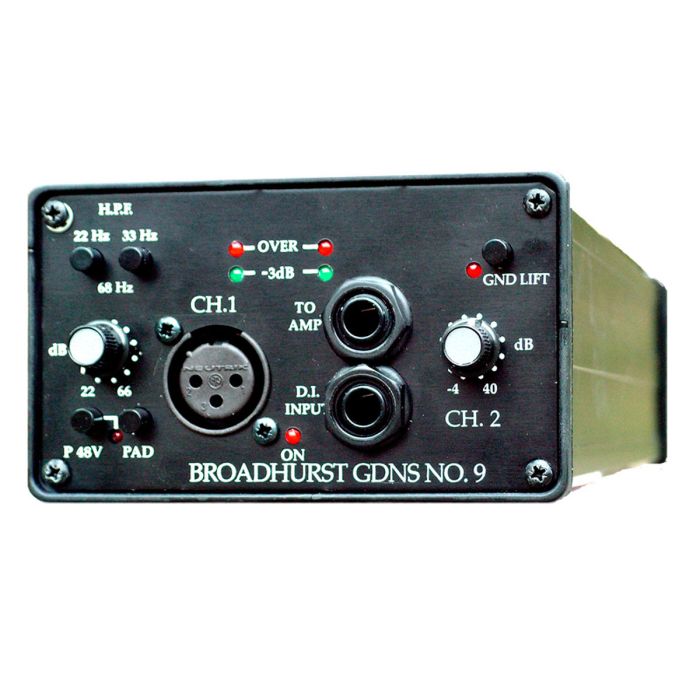

The DAV Electronics BG9 is a dual channel microphone amplifier fetauring low noise and distortion. It offers switched gain controls for high accuracy level settings, one mic channel, one XLR and two jack inputs; one dedicated D.I instrument input, two balanced XLR outputs, LED level indication, along with switchable high pass filter, 26dB pads and 48v phantom supply.Â
This microphone amplifier is ideal for location or studio recording. Because of it's compact size it is easily transportable for location recording and is very discrete in the studio or control room.
- Low noise and low distortion.
- Switched gain controls for high accuracy level setting (4 dB steps),Â
- One mic channel (channel 1),Â
- One dedicated D.I instrument input (channel 2) with balanced line level output and buffered output to amp (ideal for mixing live and D.I. guitar for fuller sound),Â
- Level indication,Â
- High pass filter (switchable on channel 1 onyl),Â
- 26dB pads (switchable on channel 1 only)
- 48v phantom supply (switchable on channel 1 only).
- Frequency Response: 10Hz - 150KHz ± 0.25dB         Â
- Gain Range: 22dB - 66dB in 4dB steps. [pad in -4dB - 40dB]
- Distortion: Less than 0.01%. Typ, 0.001% 1KHz @ +20 dBu o/p                 Â
- High Pass Filters: 22Hz, 33Hz, 68Hz @ 12dB per octave (Channel 1 only)
- Noise: 25 microvolts [-110dB ref +20 dBu. Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain].                  Â
- Level Indication: Â Â Â Â Â Â Â Â Â
- Red LED +18dBu
- Green LED +15dBu
Can be pre-set for your operating level
- Clipping Level: +29 dBu
- 48v Phantom: Channel 1 only (Switchable)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
- Ground Lift: Switchable
- 26dB Pads: Channel 1 only (Switchable)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

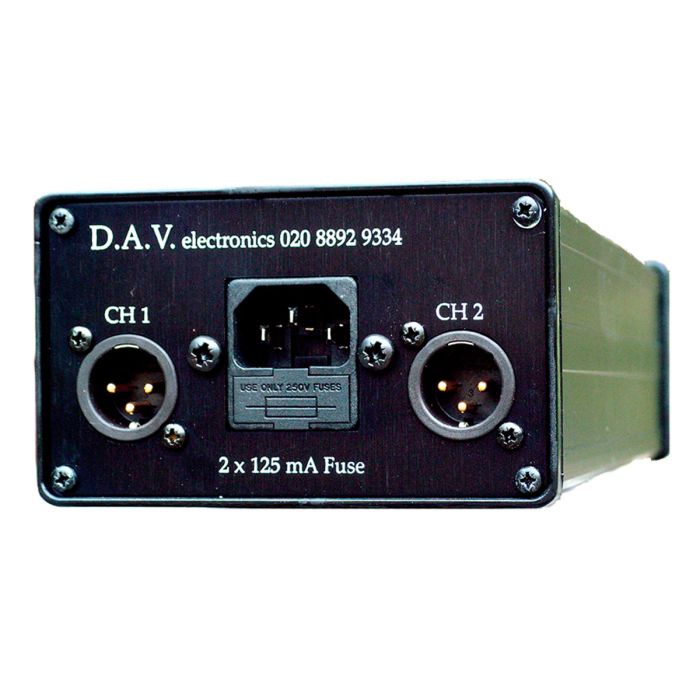

- Connectors:Â
- IEC mains
- Input - XLR x 1, Jack x 2 (DI Input)
- Output - XLR x 2 (bal),
- D.I. Input: Channel 2 high impedance [1.8 Meg Ohms]
- Dimensions: 60 x 115 x 295mm (HxWxD)
- D.I. Gain Range: Channel 2 only -4 > 40dB in 4dB steps
