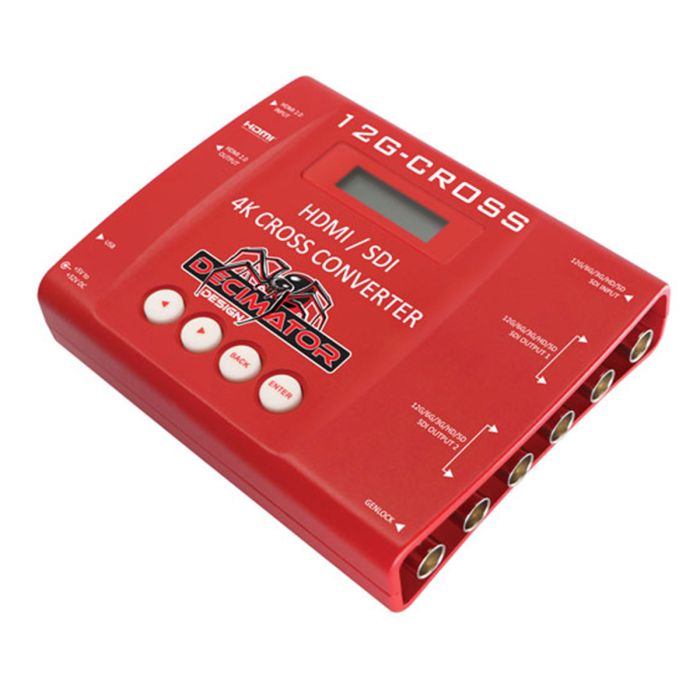

Decimator Design 12G-CROSS

• The audio pairs in the SDI and HDMI outputs can be rearranged as required.
• Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier.
• The 12G-CROSS is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.

• The 4K scaling engine can scale and/or frame rate convert between 351 input formats and 57 output formats. The supported formats are:

  • 294 VESA formats in via HDMI input

  • (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI

  • (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI

  • (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)

  • 1920 x 1080i60/59.94/50 via HDMI or HD-SDI

  • (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI

  • (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI

  • 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI

  • 1280 x 720p24/23.98 via HD-SDI

  • 720 x 480p59.94 or 720 x 576p50 via HDMI

  • 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI



  • That is an amazing 20,007 possible format conversions!

SDI Formats

• 12G:SMPTE 2048-1/[email protected] and 11.868Gb/s
• (3840 or 4096) x 2160p@60/59.94/50Hz
• 6G: SMPTE 2048-1/[email protected] and 5.934Gb/s
• (3840 or 4096) x 2160p@30/29.97/25/24/23.98Hz
• 3G-A or 3G-B: SMPTE [email protected] and 2.967Gb/s
• (1920 or 2048) x 1080p@60/59.94/50Hz
• HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s
• 1920 x 1080i@60/59.94/50Hz
• (1920 or 2048) x 1080p/psf@30/29.97/25/24/23.98Hz
• 1280 x 720p@60/59.94/50/30/29.97/25/24/23.98Hz
• SD:SMPTE 259M@270Mb/s
• 720 x 576 (PAL)
• 720 x 480i59.94 (NTSC)

HDMI Formats

• (4096 or 3840) x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz
• 1920 x 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
• 1920 x 1080i@60/59.94/50Hz
• 1280 x 720p@60/59.94/50/30/29.97/25
• 720 x 480p59.94 or 720 x 576p50
• 720 x 480i59.94 (NTSC) or 720 x 576 (PAL)

Inputs

• 1 x HDMI Type A
• 1 x (12G/6G/3G/HD/SD)-SDI
• 1 x Genlock

Outputs

• 1 x HDMI Type A
• 2 x (12G/6G/3G/HD/SD)-SDI Re-clocked Loop-through
• 2 x (12G/6G/3G/HD/SD)-SDI

LCD / Button Menu Options

• SDI output source from HDMI IN, SDI IN or Scaler
• HDMI output type and source from HDMI IN, SDI IN or Scaler
• Scaler source, reference, format and Aspect Controls
• Audio pair routing for HDMI and SDI output
• LCD backlight off time
• Back to Status time

Power

• +5V to +32V DC
• Positive Centre Pin

Dimensions

• 106mm x 130mm x 31mm (4.2” x 5.1” x 1.2”)

• USB port for control and firmware updates
• Metal Thread Locking DC Power Socket
• Power Supply and USB Cable
