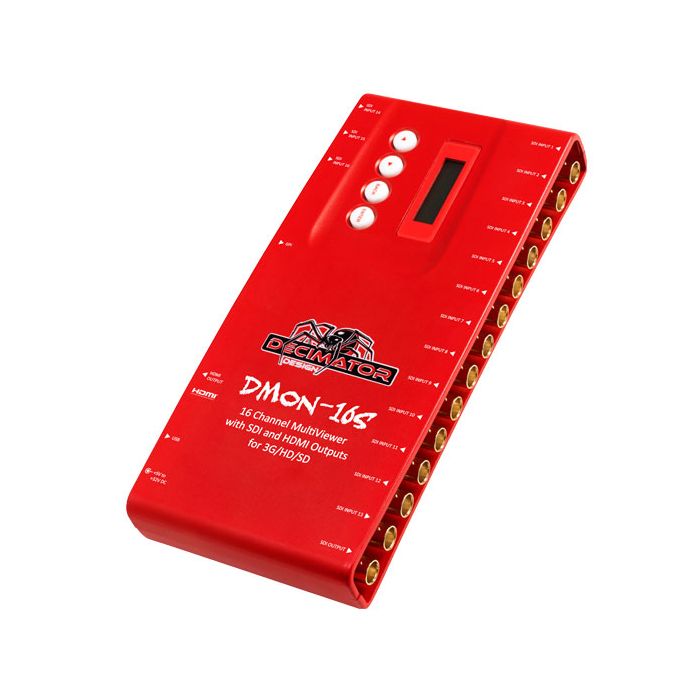

Decimator Design DMON-16S

1 to 16 channel multiviewer with SDI and HDMI outputs for 3G/HD/SD. Custom layouts, UMDs, Audio Meters, Graticules and Tallies

MPN: DD-16S SKU: DD-16S

$1,273.33

16 channel multi-viewer with HDMI & SDI outputs for 3G/HD/SD

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships is 1-2 Days

The DMON-16S from Decimator Design is a low cost, miniature 16 to 1 Multiviewer. The 16 SDI inputs are independent of each other, meaning you can monitor a mix of 3G/HD/SD feeds. Select from preset layouts or customise your own, depending on the number of feeds you wish to monitor.

The Decimator DMON-16S multiviewer allows you to:

Monitor between 1 and 16 independent 3G/HD/SD-SDI feeds
Select your output format over SDI and/or HDMI
Fully customisable layouts with ability to save & load
16 character customisable UMD overlay per window
8 channel customisable Audio Metering overlay per window
Customisable Safe Action, Safe Title and Centre Cross overlays
Each window is independent of the others with variable aspect ratios
Auto Detect & display any format of any frame rate simultaneously
Select any of the 16 inputs for pass-through on the SDI and HDMI outputs
32 GPI on 37-pin D-SUB for Tallies and Remote Switching
RS422/485 on 37-pin D-SUB for Dynamic UMDs and Tallies using TSL protocol
USB for PC/MAC control
Control on-unit using the buttons and LCD screen
Toggle one feed to fullscreen
For a "Lite" version of the DMON-16S, see the DMON-16SL.

DMON-16S comes with a Locking DC Power Supply, USB Cable, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.

Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer or 16 to 1 input multiplexer

Custom Layouts with various standard layouts

16 Character UMD overlay per window with individual enables, custom positioning and size

8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

Safe Action and Safe Title overlay per window with individual enables and adjustment

Centre Cross overlay per window with individual enable

Audio ID overlay

Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border

Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)

Load and restore Custom Layouts

Fast switching between inputs using Full-Screen scaling

Selectable output format in both Full-Screen and Multi-Viewer mode

Low latency buffering for each input allowing non-synchronous inputs

Linked (3G/HD/SD)-SDI and HDMI outputs

16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

Variable aspect ratios per window

Pass-Through mode allowing any of the 16 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs

The DMON-16S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

This unit also includes:

- 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB connector for Dynamic UMD and
Tallies via TSL protocol
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
