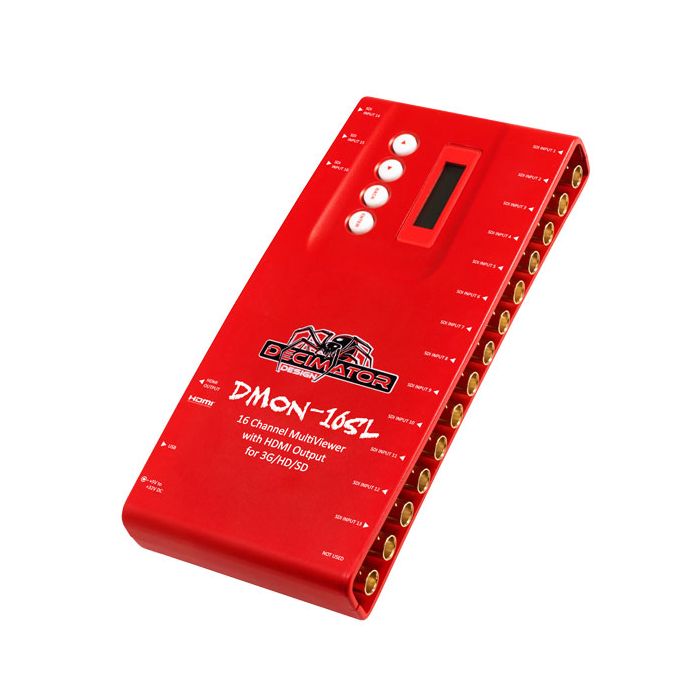

Decimator Design DMON-16SL

1 to 16 channel multiviewer with HDMI output for 3G/HD/SD and custom layouts

MPN: DD-16SL SKU: DD-16SL

$693.33

16 channel multi-viewer with HDMI outputs for 3G/HD/SD

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Call for Lead Time

The DMON-16SL from Decimator Design (a "Lite" version of the 16S) is a low cost, miniature 16 to 1 Multiviewer. The 16 SDI inputs are independent of each other, meaning you can monitor a mix of 3G/HD/SD feeds. Select from preset layouts or customise your own, depending on the number of feeds you wish to monitor.

The Decimator DMON-16SL multiviewer allows you to:

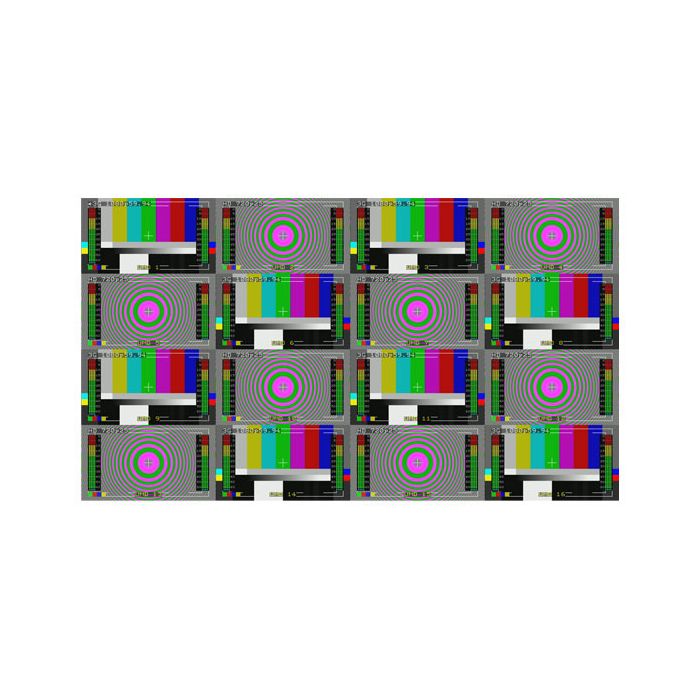

Monitor between 1 and 16 independent 3G/HD/SD-SDI feeds
NEW - support for both 3G level A + B on the inputs
Select your output format over HDMI
Select your output format in both Full-Screen and Multi-Viewer mode
Fully customise your layouts with the ability to save & load
16 character customisable UMDs (NEW)
Audio ID overlay
Fast switching between inputs using Full-Screen scaling
Low latency buffering for each input allowing non-synchronous inputs
Each window is independent of the others with variable aspect ratios per window
Auto Detect & display any format of any frame rate simultaneously
Select any of the 16 inputs for pass-through to the HDMI output
Control from a distance via USB on a Mac/PC app
Control on-unit using the buttons and LCD screen
Toggle one feed to fullscreen
For UMDs, Audio Meters, Graticules and Tallies see the DMON-16S.

DMON-16SL comes with a Locking DC Power Supply, USB Cable, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.

Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer

Custom Layouts with various standard layouts

Fixed Identifier overlay per window with individual enables, custom positioning and size

Audio ID overlay

Load and restore Custom Layouts

Fast switching between inputs using Full-Screen scaling

Selectable output format in both Full-Screen and Multi-Viewer mode

Low latency buffering for each input allowing non-synchronous inputs

16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

Variable aspect ratios per window

Pass-Through mode allowing any of the 16 inputs to be selected and routed to the the HDMI output

In Pass-Through mode the selected input is passed through to the HDMI output

The DMON-16SL is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

This unit also includes:

- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
