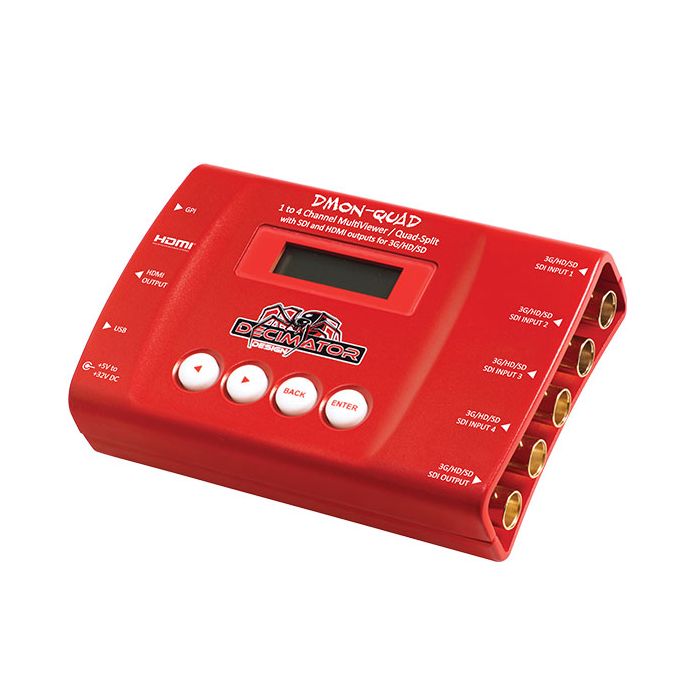

Decimator Design DMON-QUAD

• Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
• Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Horizontal and/or Vertical image flipping per window
• Audio ID overlay
• Tallies can be applied to either Tally Boxes (Default) or Border
• Tally boxes allows for up to 4 Tallies per window
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
• The DMON-QUAD is a truly portable converter, that incorporates our easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

SDI Input and Output Formats

• 3G:SMPTE [email protected] and 2.967Gb/s: 1080p@60/59.94/50Hz
• HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s:
• 1080i@60/59.94/50Hz
• 1080p/psf@30/29.97/25/24/23.98Hz
• 720p@60/59.94/50/30/29.97/25/24/23.98Hz
• SD:SMPTE 259M@270Mb/s:
• 625i50 (PAL)
• 525i59.94 (NTSC)
• LCD / Button Menu Options:
• HDMI output type
• Output Select
• Multi-Viewer Output Format
• Multi-Viewer Number of Windows
• Multi-Viewer Layout
• Multi-Viewer Audio Source
• Multi-Viewer Reference
• Full Screen is Scaled
• Input Routing
• GPI mode
• Setup
• HDMI Output Formats:
• 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
• 1080i@60/59.94/50Hz
• 720p@60/59.94/50/30/29.97/25
• 625i50 (PAL)
• 525i59.94 (NTSC)
• Inputs:
• 4 x (3G/HD/SD)-SDI
• Input Equalization less than 100M using Belden 1694A
• USB for control and updates
• Power:
• +5V to +32V DC
• Positive Centre Pin
• Outputs:
• 1 x SDI (3G/HD/SD)-SDI
• HDMI Type A
• Dimensions: 79.5mm x 123mm x 29.5mm (3.1 x 4.8 x 1.2)

• Decimator Design MD-QUAD
• Power Supply
• HDMI Cable
• USB Cable
• Mounting Bracket
