Decimator Design

Decimator Design MC-DMON-9S

1 to 9 channel openGear multiviewer with SDI output for 3G/HD/SD

MPN: DD-MC-9S SKU: DD-MC-9S

$840.83

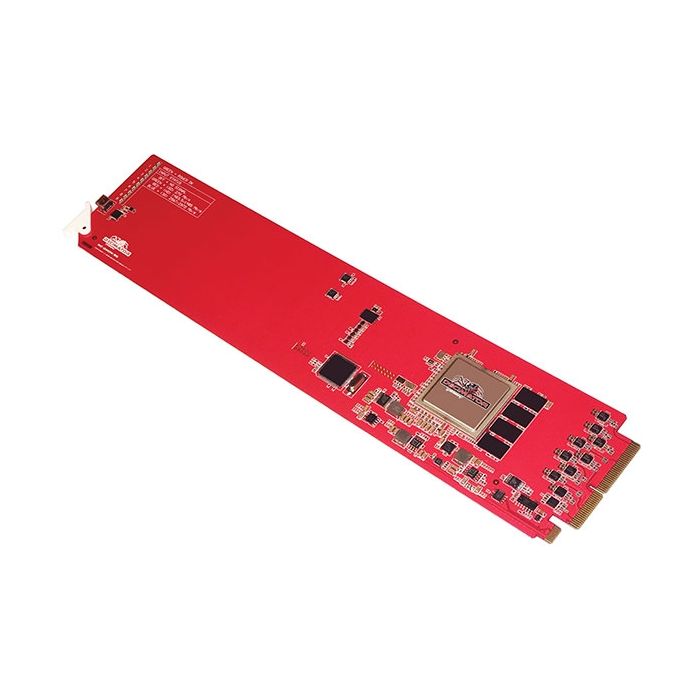

The MC-DMON-9S from Decimator Design is a low cost, miniature 9 to 1 openGear card Multiviewer.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

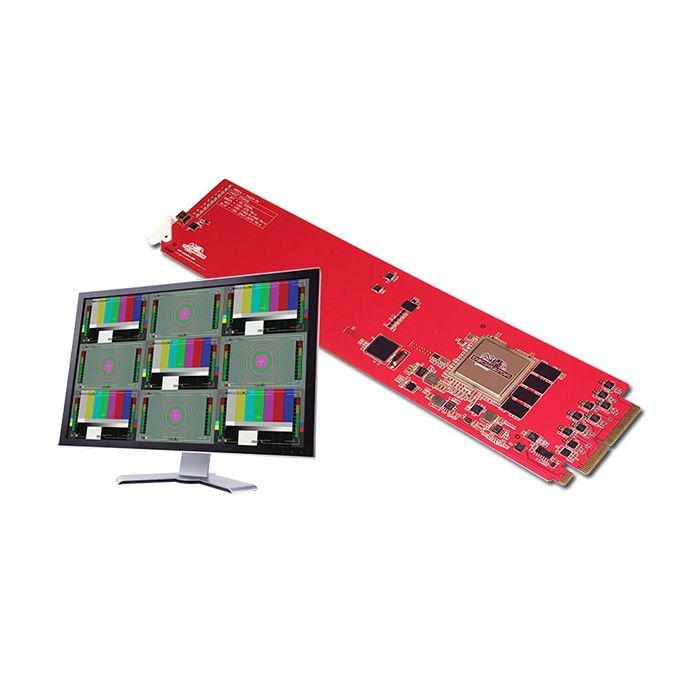

The MC-DMON-9S from Decimator Design is a low cost, miniature 9 to 1 openGear card Multiviewer. The 9 SDI inputs are independent of each other, allowing a non-synchronous mix of 3G/HD/SD feeds.  Select from preset layouts or customise your own, and monitor any number of inputs between 1 and 9.

Warranty for all Decimator Design products is 3 years.

  • Monitor between 1 and 9 independent 3G/HD/SD-SDI feeds
  • Select your output format in 3G/HD/SD-SDI
  • Fully customisable layouts with ability to save & load
  • Support for 3G level A+B allowing conversion between the two
  • 16 character customisable UMD overlay per window
  • 16 channel customisable Audio Metering overlay per window
  • Customisable Safe Action, Safe Title and Centre Cross overlays
  • Each window is independent of the others with variable aspect ratios
  • Auto Detect & display any format of any frame rate simultaneously
  • Fast switching between inputs using Full-Screen scaling
  • openGear DashBoard for control

SDI Input & Output Formats

  • 3G:SMPTE [email protected] and 2.967Gb/s
    • 1080p@60/59.94/50Hz
  • HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s
    • 1080i@60/59.94/50Hz
    • 1080p/psf@30/29.97/25/24/23.98Hz
    • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
  • SD:SMPTE 259M@270Mb/s
  • 625i50 (PAL)
  • 525i59.94 (NTSC)



Inputs

  • 9 x (3G/HD/SD)-SDI
  • USB Mini B for control and updates
  • 3-pin connector for UMD and Tallies via RS422/485



LED Status

  • Power / Update
  • 9 x Signal lock and rate



Outputs

  • 1 x SDI (3G/HD/SD)-SDI



Power

  • TBA
