Decimator Design MD-CROSS - V2
HDMI / SDI Cross Converter with Scaling and Frame Rate Conversion - V2
MPN: DD-CROSS SKU: DD-CROSS
Mini HDMI / SDI Cross Converter with Scaling and Frame Rate Conversion.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days

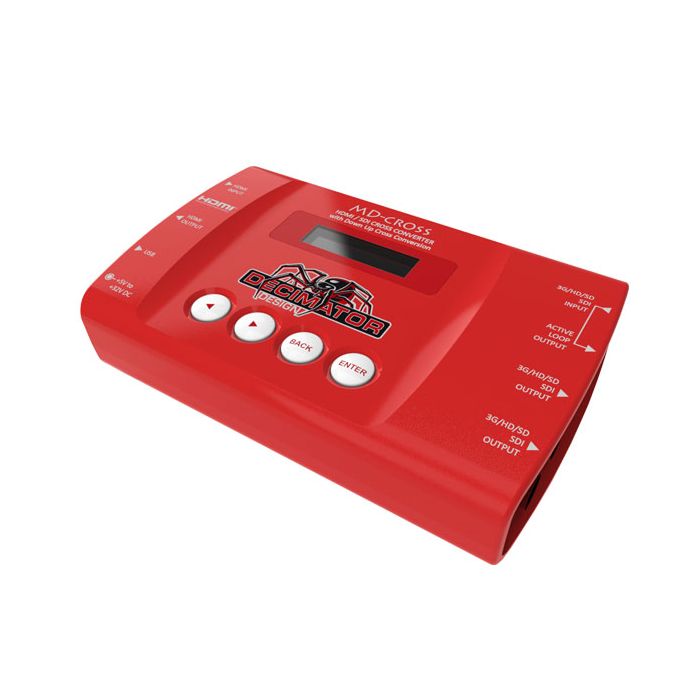

The MD-CROSS (V2) from Decimator Design is a feature-packed HDMI/SDI down up cross converter including a professional Test Pattern Generator. The Decimator MD-CROSS can be used to perform a variety of functions:
- HDMI to SDI while simultaneously converting SDI to HDMI
- HDMI to HDMI while simultaneously converting SDI to SDI
- HDMI to SDI and HDMI
- SDI to SDI and HDMI
- Scale & Convert Frame Rate on either the SDI or HDMI inputs
- Convert between level A + level B 3G-SDI New
- Horizontal and/or vertical image flipping via build in scaler New
- Full 16-Channel Audio Metering Overlays
- Adjustable Safe Title & Safe Action Overlays and static Center Cross
- Text Overlays
- Generate 54 test patterns in 26 selectable formats (including Luma & Chroma Zone-plates)
The MD-CROSS is controlled either via USB on a Mac/Windows app, or on-unit using the LCD screen and button controls. The unit comes with a Locking DC Power Supply, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.
- HDMI to SDI while simultaneously converting SDI to HDMI
- HDMI to HDMI while simultaneously converting SDI to SDI
- HDMI to SDI and HDMI
- SDI to SDI and HDMI
Professional 3G/HD/SD Test Pattern Generator featuring
- 26 Selectable Output Formats.
- 54 Test Patterns including Luma and Chroma Zone-plates.
- Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard
- The MD-CROSS is a truly portable converter, that incorporates a new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone
This unit also includes
- 3G/HD/SD-SDI Active Loop-Through Output.
- Full 16-Channel Audio Metering Overlays.
- Adjustable Safe Title and Safe Action Overlays and static Center Cross.
- Text Overlays.
- USB port for control and firmware updates.
- New Metal Thread Locking DC Power Socket.
- Power Supply
- HDMI Cable and USB Cable.
SDI Formats
3G: (SMPTE [email protected] and 2.967Gb/s)
1080p@60/59.94/50Hz
HD: (SMPTE 292M/274M/[email protected] and 1.435Gb/s)
- 1080i@60/59.94/50Hz
- 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD: (SMPTE 259M@270Mb/s)
- 625i50
- 525i59.94
LCD / Button Menu Options
- SDI output source from HDMI IN, SDI IN, TPG or Scaler.
- HDMI output type and source from HDMI IN, SDI IN, TPG or Scaler.
- Scaler source, format and Aspect Controls.
- Full control for Audio Meter Overlays.
- Full control for Safe Action, Safe Title and Centre Cross Overlays.
- Full control for Text Overlays.
- Full control for Format Status Overlays.
Inputs
- HDMI
- 3G/HD/SD-SDI 10-bit
- Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
Outputs
- HDMI.
- 1 x (3G/HD/SD)-SDI Active Loop-Through.
- 2 x (3G/HD/SD)-SDI 10-bit Outputs.
Power
- +5V to +32V DC
- Positive Centre Pin.
Dimensions
- 79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”)
