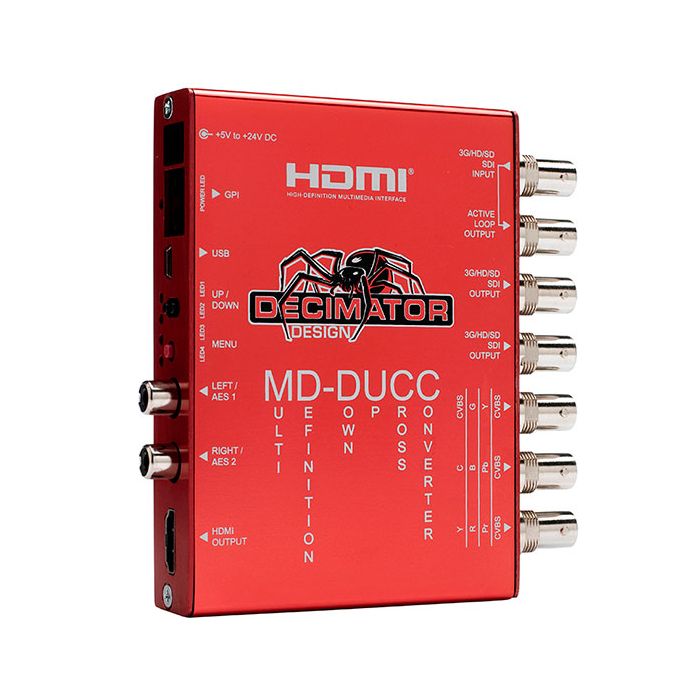

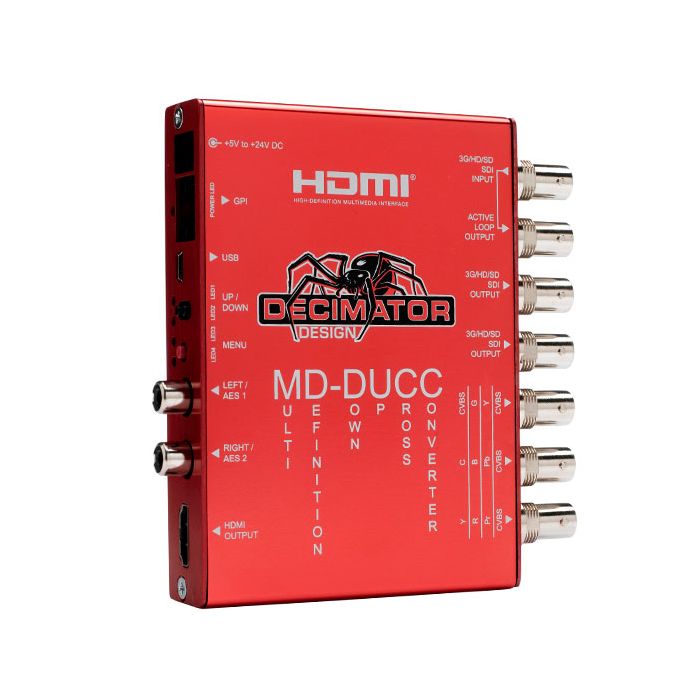

Decimator Design MD-DUCC

• The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input

• When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input

• Auto detects 3G, HD or SD (26 Formats in total)

• Full 10-bit data path and multipoint interpolation

• Professional motion-adaptive de-interlacing

• True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is

• Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions

Full 16-Channel Audio metering with

• Any of the 4 audio groups individually selectable.
• Vertical or Horizontal Bars.
• AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales.
• Bar & Float, Bar only or Float only.
• Transparency adjustment.
• Separate Bar and Float Ballistics control.
• Adjustable Reference level.
• Red, Yellow and Green Range adjustment.
• Bar thickness adjustment.
• Margin adjustment.

Adjustable Graticules Generator with

• Separate enables for Safe Action, Safe Title and Centre Cross.
• Adjustable position for either Safe Action or Safe Title.
• Adjustable colours for Safe Action, Safe Title and Centre Cross.

Text Overlays with

• Adjustable Foreground and Background colours.
• Adjustable 16 character text.
• Current input format status.

•  Selectable analog video from: 3 x CVBS / YPbPr / RGB / CVBS & YC

• 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed

• GPI on RJ-45 for Tallies

• 3G/HD/SD-SDI Active Loop-Through Output

• De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level

• LEDs for status and buttons for basic configuration

• USB port for control and firmware updates

• Locking DC Power Socket

The following is also included with the unit

• Power Supply
• HDMI Cable
• USB Cable
• Mounting Bracket.

Video Formats

3G: (SMPTE [email protected] and 2.967Gb/s)

• 1080p@60/59.94/50Hz

HD: (SMPTE 292M/274M/[email protected] and 1.435Gb/s)

• 1080i@60/59.94/50Hz
• 1080p/psf@30/29.97/25/24/23.98Hz
• 720p@60/59.94/50/30/29.97/25/24/23.98Hz

SD: (SMPTE 259M@270Mb/s)

• 625i50
• 525i59.94

Controls

• HDMI format type
• Analogue Video format type
• Output format
• Aspect conversion type for HD to HD, HD to SD, SD to HD and SD to SD conversions.
• On-Screen Overlays Enables
• Basic Audio Meter control
• Basic Graticule Enables

Inputs

• (3G/HD/SD)-SDI 10-bit
• Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and
• 100M 3G-SDI using Belden 1694A

Outputs

• HDMI
• 1 x (3G/HD/SD)-SDI Active Loop-Through
• 2 x (3G/HD/SD)-SDI 10-bit Outputs
• (3 x CVBS) / (Y, Pb, Pr) / (G, B, R) / (CVBS, Y & C)
• AES 1 / Unbalanced Analogue Audio - Left
• AES 2 / Unbalanced Analogue Audio - Right

LED Status

• Power.
• Signal Lock.

Power

• +5V to +24V DC, ~5 Watts.
• Positive Centre Pin.

Dimensions

• 90mm x 123mm x 23mm (3.5” x 4.8” x 0.9”)
