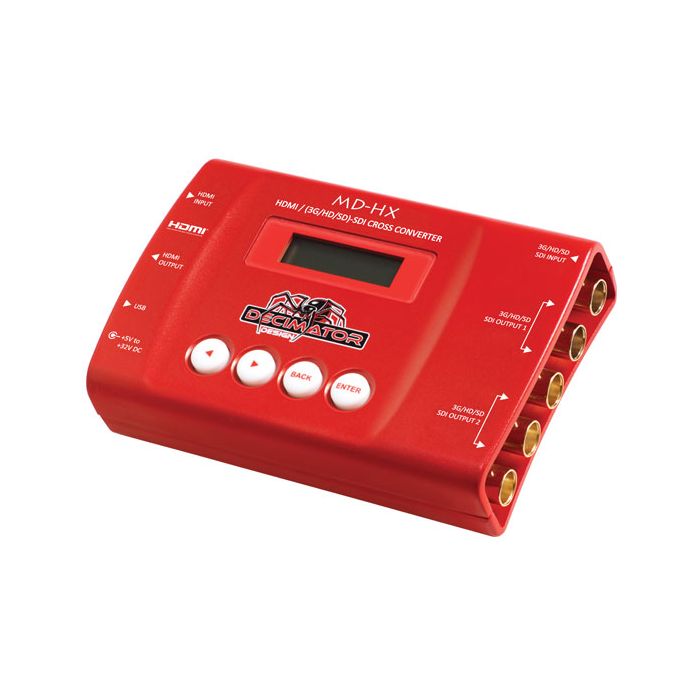

Decimator Design MD-HX
HDMI/SDI Cross converter
MPN: DD-HX SKU: DD-HX
HDMI/SDI Cross converter with scaling and frame rate conversion
Ask our team about our Price Match Pledge.
Get in touch
In stock
Out of Stock. Call for Lead-time
The Decimator Design MD-HX Miniature HDMI/SDI cross converter combines capabilities usually reserved for a computer controlled converter. It is a compact independent device, deploying the exact same cross converter used in Decimator’s larger MD-DUCC - which has a proven track record of success.
The MD-HX delivers both an HDMI and a 3G-SDI input and has the capacity to cross convert either signal to the other. In addition, it features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard.
The MD-HX has one HDMI output and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a wide range of modes well suited to any conversion task or problem.
The converter doesn’t need a computer or DIP switches to control thanks to a small LCD screen for menu functions incorporated into the front panel, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use or from knockouts.
• Combines several converters for the price of one
(e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
• Robust Aluminium Case with easy to use LCD and button
control system.
• 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a
1 to 4 distribution amplifier. Output pair 1 can either be a
copy of the SDI input (default) or the same as pair 2.
• The audio pairs in the SDI and HDMI outputs can be
rearranged as required.
• Includes the same Down Up Cross Converter from our multi-award
winning MD-DUCC, allowing either the HDMI or SDI input to be
scaled and/or frame rate converted to the required standard.
• This unit also includes:
- USB port for control and firmware updates
- New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
Features the following 14 modes:
- SDI IN to HDMI and SDI OUT
- SDI IN to SDI OUT and HDMI IN to HDMI OUT
- SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- HDMI IN to SDI OUT and SDI IN to HDMI OUT
- HDMI IN to HDMI and SDI OUT
- HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
- HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
- Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
- Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
- Scaled SDI IN to HDMI and SDI OUT
- Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
- Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
- Scaled HDMI IN to HDMI and SDI OUT
