DiGiGrid IOC Audio Interface

• Audio I/O for Native DAWs

• 2 mic/line inputs with broadcast-grade preamps

• 8 line ins/outs, 16 AES ins/outs, ADAT in/out

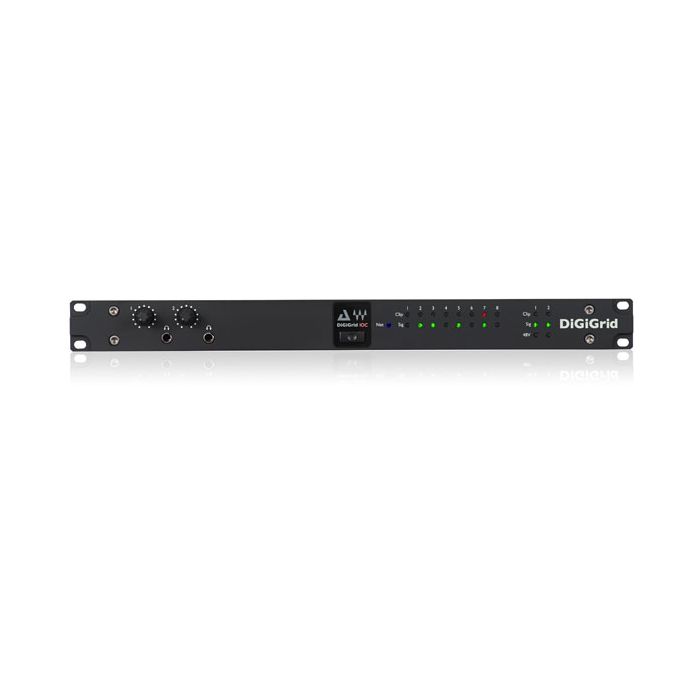

• Quick-view front panel metering

• High-definition 192kHz ADC conversion

• Super-low latency: 0.8 milliseconds

• Connect with one Ethernet cable (Cat 5e/Cat 6)

• Run hundreds of real-time plugins (SoundGrid DSP server sold separately)

• ASIO- and Core Audio-compliant

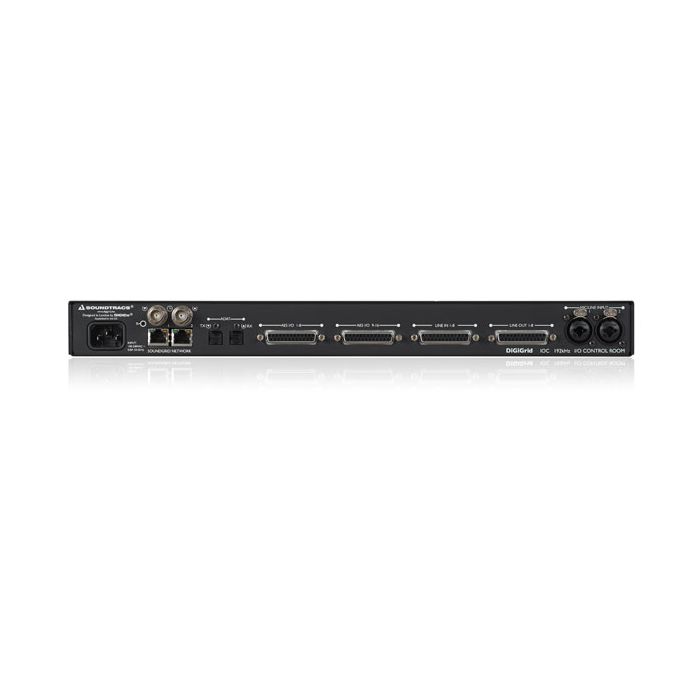

General

8x line inputs (25-pin D-Con)

8x line outputs (25-pin D-Con)

16x AES/EBU I/O (2x 25-pin D-Con)

1x ADAT I/O (8 channels @ 48kHz; 4 channels @ 96kHz; 2 channels @ 192kHz*)

2x Mic inputs (XLR/TRS combo)

2x SoundGrid RJ45 Ethernet ports

1x Word clock I/O

1x AC input

2x headphone outputs with analog level knobs

1U rack-mounted

Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192* kHz

Clock Synchronization via Word Clock input, AES/EBU, SoundGrid (SoE), Internal

Reset switch

Multiple broadcast level format settings (jumpers on all analog I/Os)

Inputs

Mic input impedance: 2K5 Ohms

Phantom power: 48V

Line input impedance: 8K0 Ohms

Mic gain range: -20 to +60dB in 0.5dB steps

Line gain range: -30 to +50dB in 0.5dB steps

Mic maximum input level: +26dBu

Line maximum input level: +36dBu

Mic equivalent input noise: >-126dB (150 Ohm source, Gain +60dB)

Frequency response: +/-0.5dB 20Hz to 20kHz

Channel separation: Better than 90dB (40Hz to 15kHz)

Outputs

Maximum line output level: +22dBu

Residual line output noise: Frequency Response: +/-0.5dB 20Hz to 20kHz

Line output impedance: 50 Ohms

Channel separation: Better than 90dB (40Hz to 15kHz)
