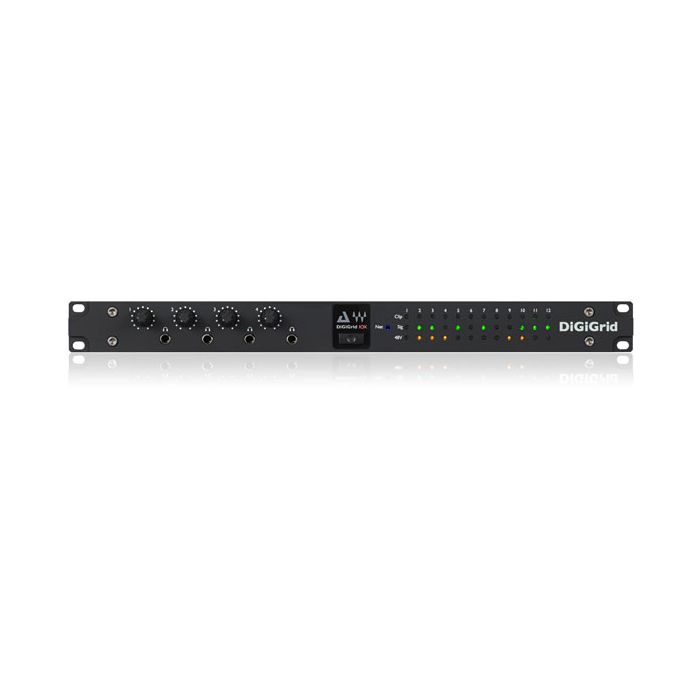

DiGiGrid IOX Audio Interface
Expansion Audio Interface for SoundGrid Systems
MPN: DIGIGRID-X-DG-IOX SKU: DIGIGRID-X-DG-IOX
Ideal for professional facilities with live performance rooms, the DiGiGrid IOX audio interface features a unique I/O configuration: 12 mic/line inputs with broadcast/studio-quality preamps and 6 line outputs. With four customizable headphone outputs which allow individual mixes for each musician, the IOX delivers high-resolution monitoring whether you’re performing in the studio or listening in the control room.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Delays in Production. Please Call Before Ordering.
Ideal for professional facilities with live performance rooms, the DiGiGrid IOX audio interface features a unique I/O configuration: 12 mic/line inputs with broadcast/studio-quality preamps and 6 line outputs. With four customizable headphone outputs which allow individual mixes for each musician, the IOX delivers high-resolution monitoring whether you’re performing in the studio or listening in the control room.
Plug the IOX into your SoundGrid network with a single Ethernet cable, and you will enter a new world of real-time tracking, mixing and monitoring. And that’s not all: With a SoundGrid DSP server on your network, you can run hundreds of SoundGrid-compatible plugins from Waves and other developers, fully integrated within your DAW, with latency of only 0.8 milliseconds.
- Audio I/O for Native DAWs
- 12 mic/line inputs with broadcast/studio-quality preamps
- 6 line outputs, 4 headphone outputs
- Full plugin integration
- Quick-view front panel metering
- High-definition 192kHz ADC conversion
- Super-low latency: 0.8 milliseconds
- Connect with one Ethernet cable (Cat 5e/Cat 6)
- Run hundreds of real-time plugins (SoundGrid DSP server sold separately)
- ASIO- and Core Audio-compliant
General
12x mic/line inputs (XLR/TRS combo)
6x line outputs (TRS)
1x word clock I/O
2x SoundGrid RJ45 Ethernet ports
1x AC input
4x headphone outputs with analog level knobs
6x channel line outputs (TRS)
1U rack-mounted
Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192* kHz
Clock synchronization via Word Clock input, SoundGrid (Sync over Ethernet), Internal
Reset switch
Multiple broadcast level format settings (jumpers on all analog I/Os)
Inputs
Mic input impedance: 2K5 Ohms
Phantom power: 48V
Line input impedance: 8K0 Ohms
Mic gain range: -20 to +60dB in 0.5dB steps
Line gain range: -30 to +50dB in 0.5dB steps
Mic maximum input level: +26dBu
Line maximum input level: +36dBu
Mic equivalent input noise: >-126dB (150 Ohm source, Gain +60dB)
Frequency response: +/-0.5dB 20Hz to 20kHz
Channel separation: Better than 90dB (40Hz to 15kHz)
Outputs
Maximum line output level: +22dBu
Residual line output noise: Frequency Response: +/-0.5dB 20Hz to 20kHz
Line output impedance: 50 Ohms
Channel separation: Better than 90dB (40Hz to 15kHz)
